Details

PRINCIPAL DIMENSIONS:
Length overall (incl. pulpit) 24,67 m
Length overall (excl. pulpit) 24,25 m
Beam 5,76 m
Draft 1,72 m
Displacement approx. 47,700 kg
Fuel capacity 6.000 l
Water capacity (incl. calorifier) 1.350 l

STANDARD EQUIPMENT:

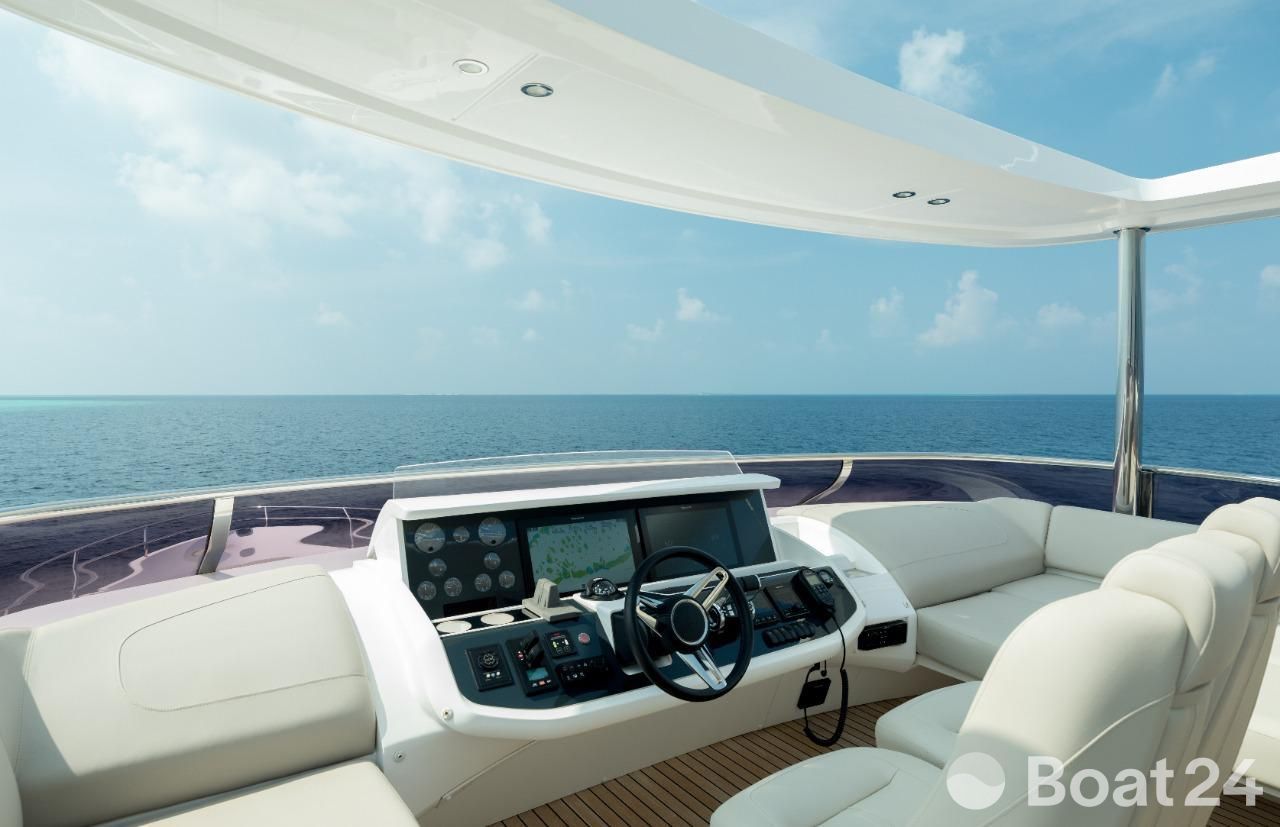

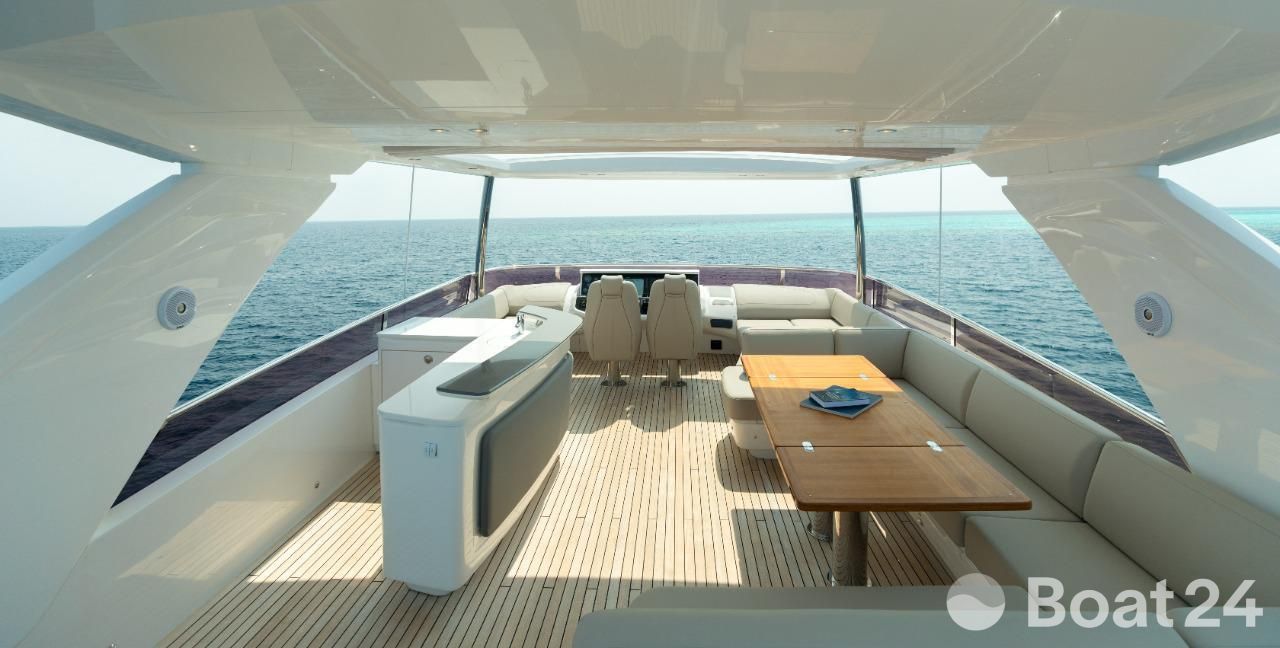

FLYBRIDGE
Helm position with powered raise/lower console, repeat navigation equipment including radar/ chartplotter and engine instrumentation
Twin adjustable helm seats
U-shaped seating area with folding teak table L-shaped seat (converts to sunpad)
Sunpad with storage below Radio/MP3 with waterproof speakers
Wetbar including sink with electric barbecue and drawer refrigerator Optional crane (450kg SWL)
Console and seat covers

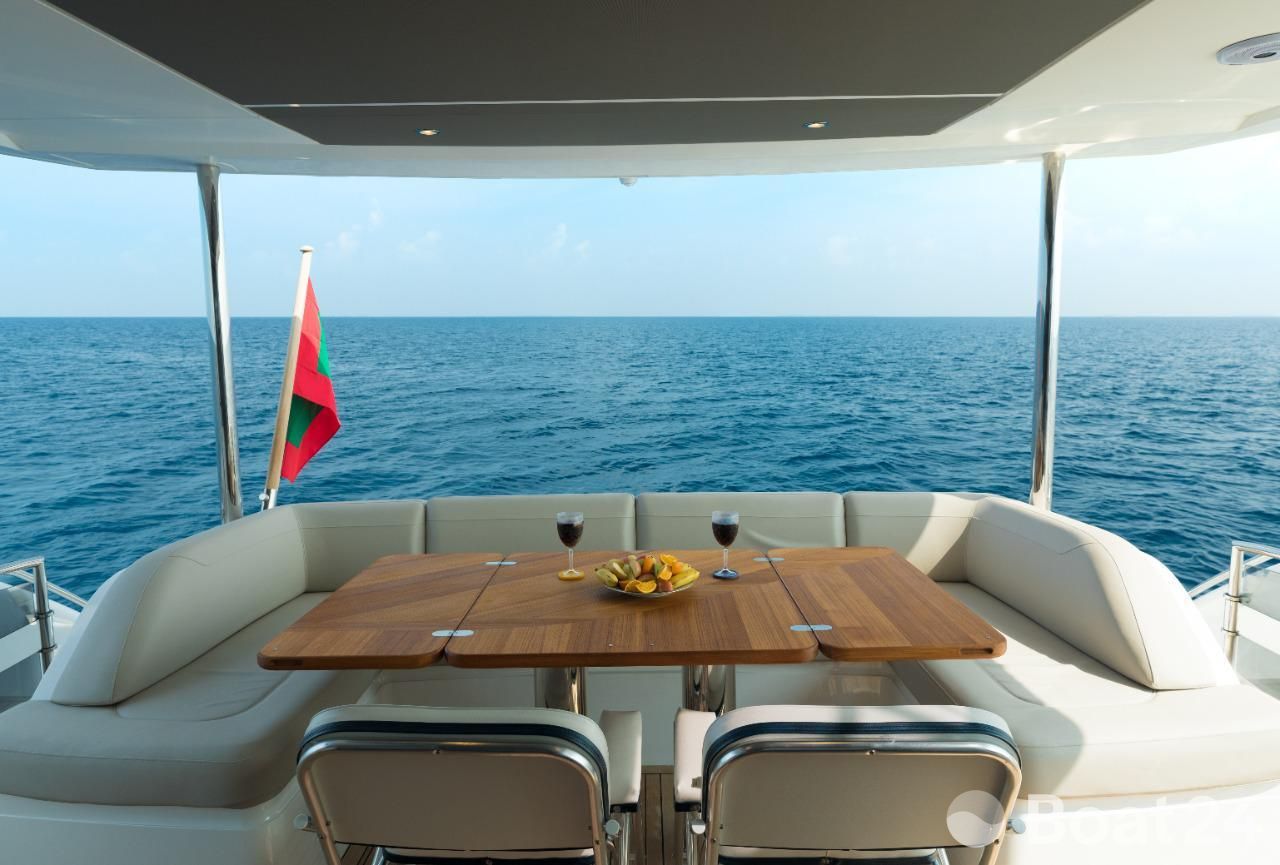

COCKPIT
U-shaped seating with teak folding table
Twin transom gates leading to bathing platform with electro-hydraulic raise/lower mechanism, foldaway swimming ladder, hot and cold shower
Transom seat in teak with storage locker
Transom doors giving direct access to lazarette and crew area Lockable gas strut assisted hatch to engine room
Life raft storage
Remote control 4m telescopic passerelle with folding handrail Cockpit cover

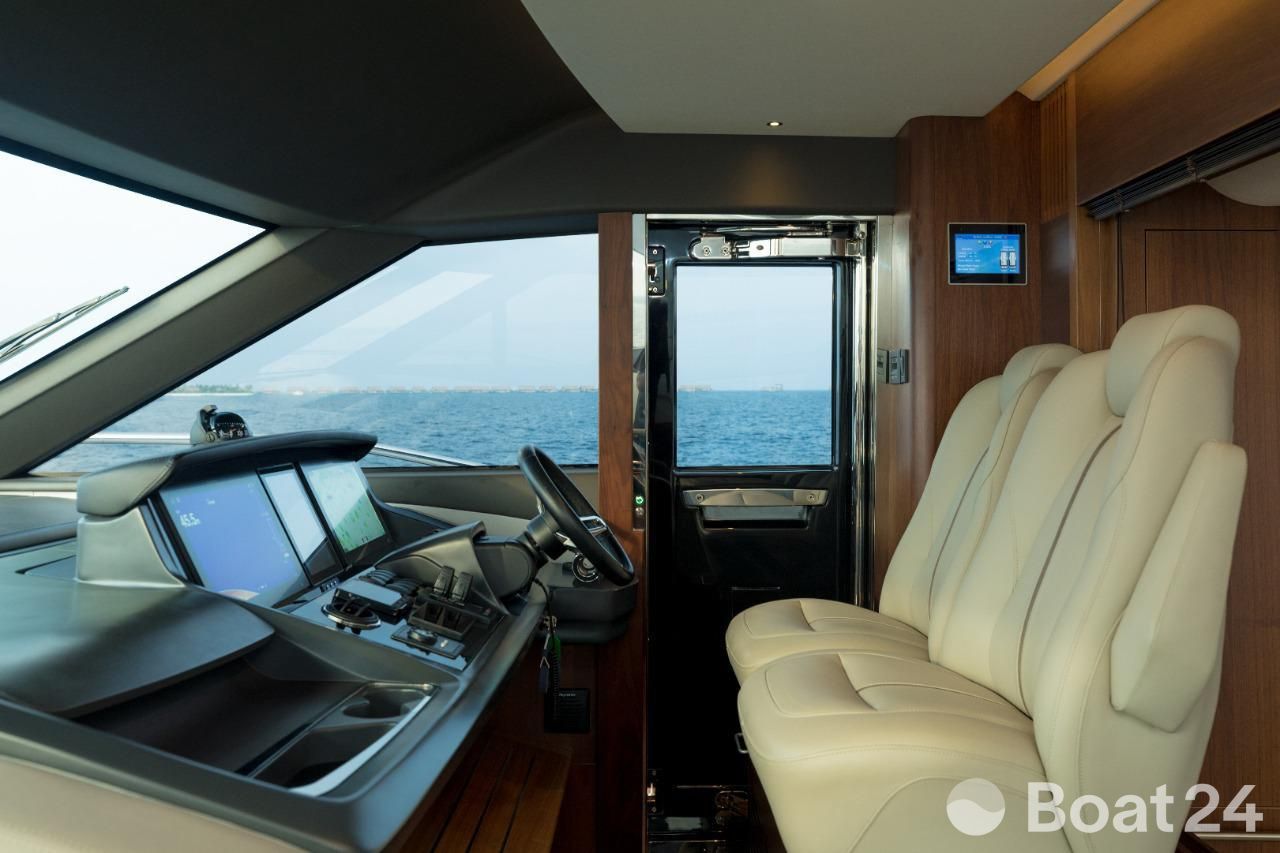

LOWER HELM POSITION
Twin helm seats with electric adjustment for helmsman L-shaped seat to port
Helmsman’s door to side deck and electric opening window to port
Full engine instrumentation including fuel gauges, exhaust temperature, fuel contamination alarms, rudder position indicator
Navigation system including colour radar, GPS and chartplotter (2 displays), VHF/RT, speed and distance log, echo sounder with alarms, autopilot and high speed magnetic compass
Controls for bow thruster, windscreen wipers, bilge pump and trim tabs (with indicator) Intercom to flybridge
Automatic foghorn with loudhailer Chart storage
24v and 240v control panel Red night lighting
Toughened glass screen (clear for night vision)

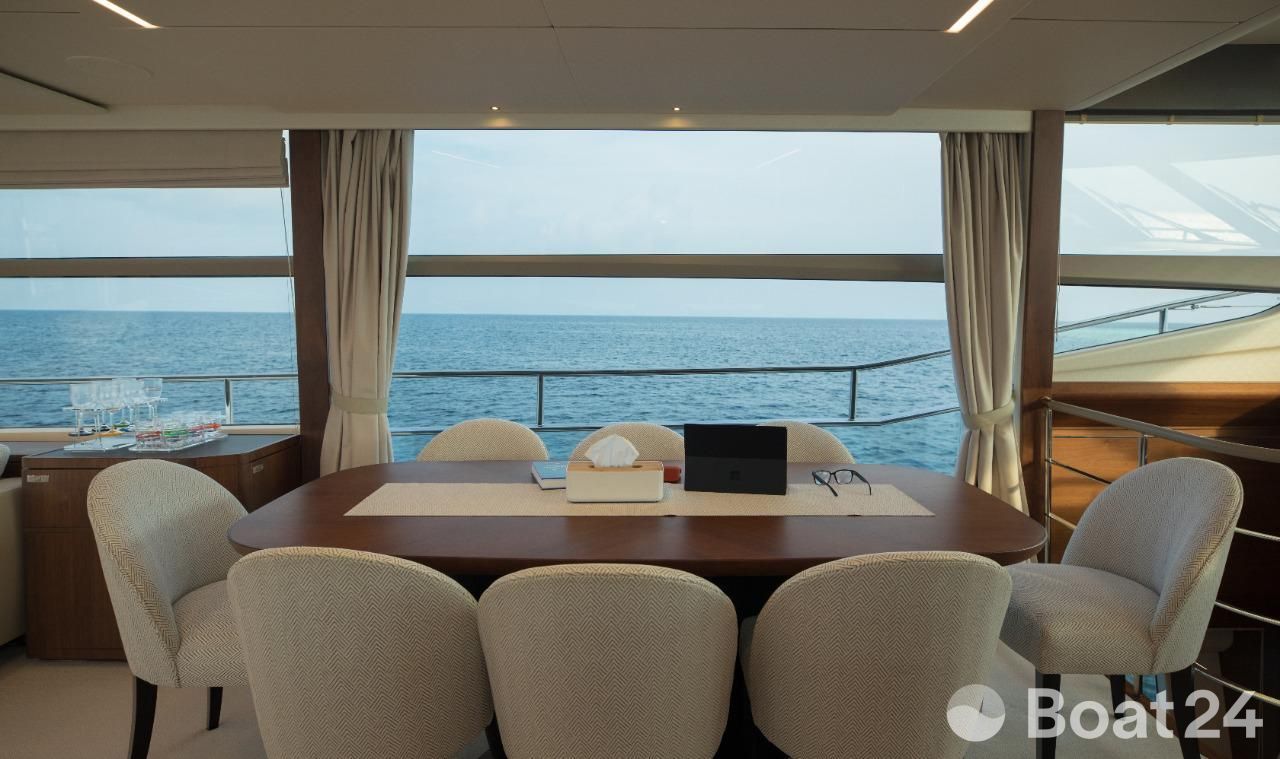

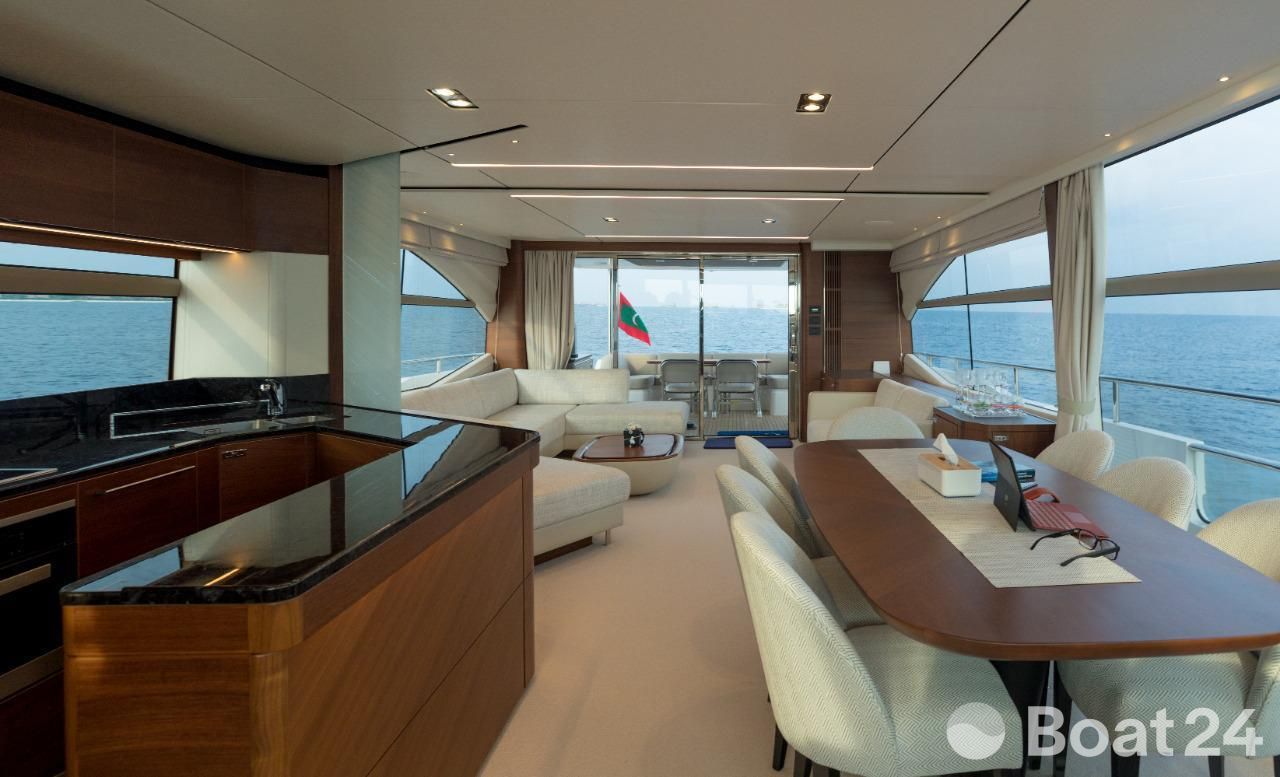

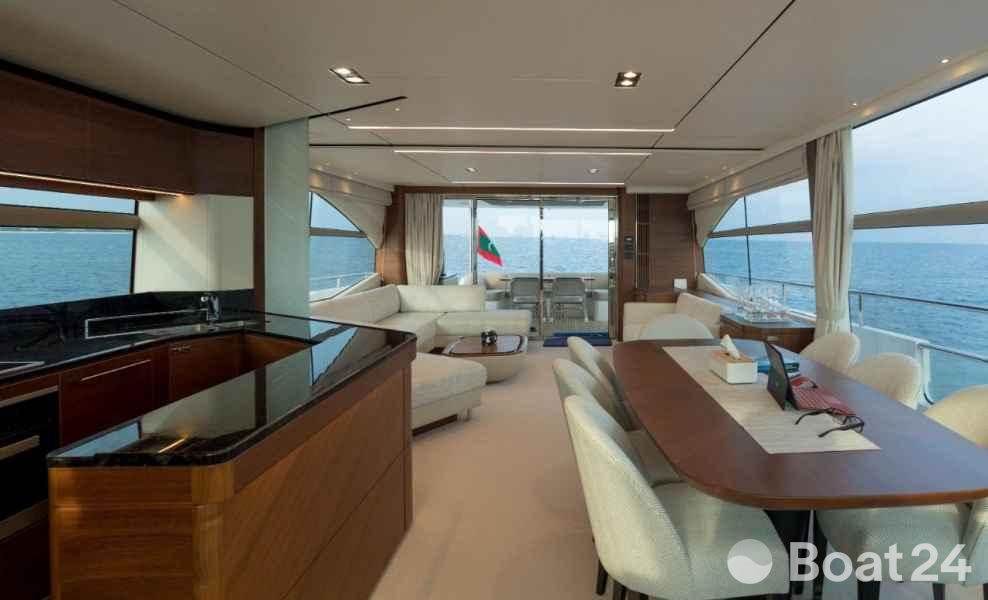

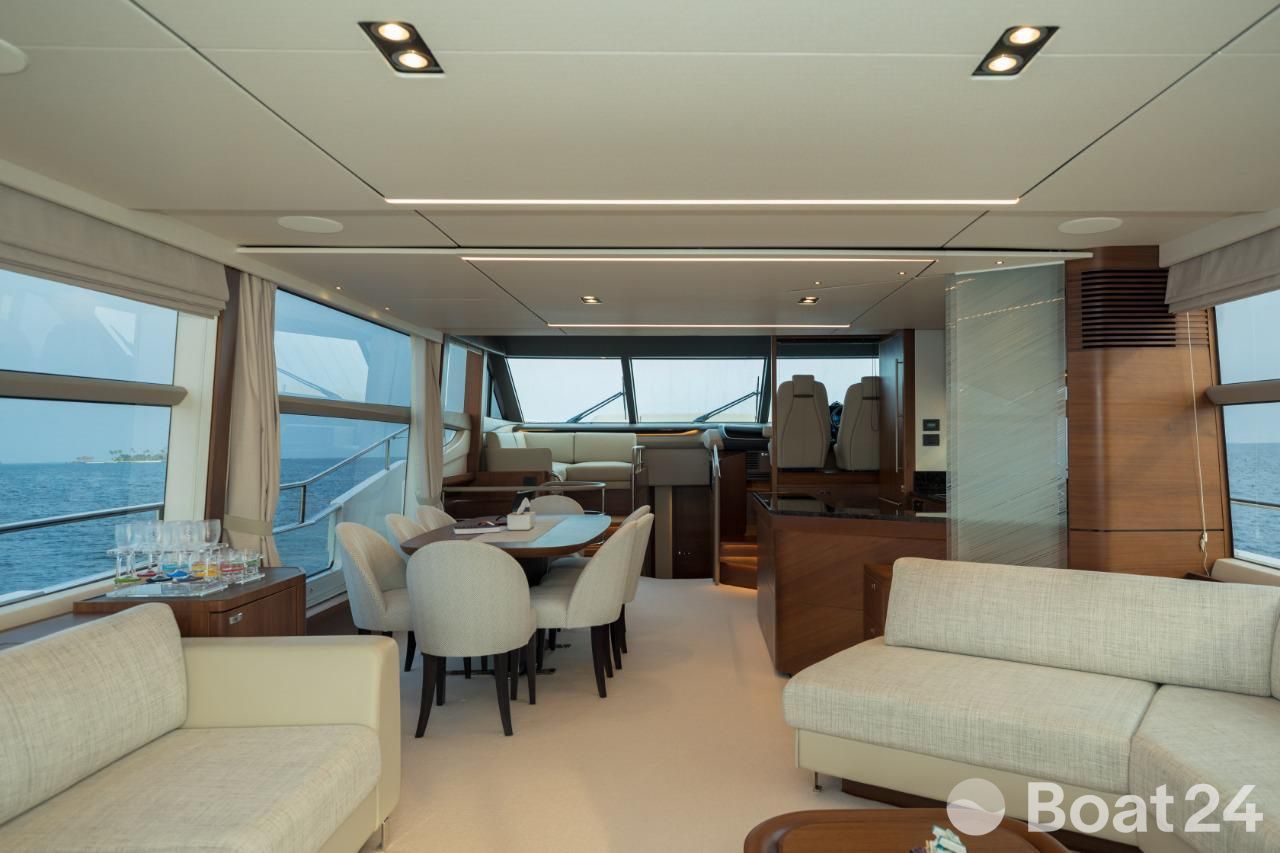

DECK SALOON
U-shaped seating area with two-seater sofa and coffee table
Entertainment centre incorporating 55” UHD LED TV on electric raise/lower mechanism and DVD, radio/ MP3 system with surround sound system
Sideboard unit with bottle and glass storage and refrigerator Dining area (8 people) with full-height panoramic window GALLEY
4- zone ceramic hob
Combination microwave/convection oven with grill

Twin stainless steel sinks with mixer tap
Full-height refrigerator/deep freeze Icemaker
Dishwasher
Storage lockers, cupboards and drawers
Electrically operated sliding glass partition from aft saloon

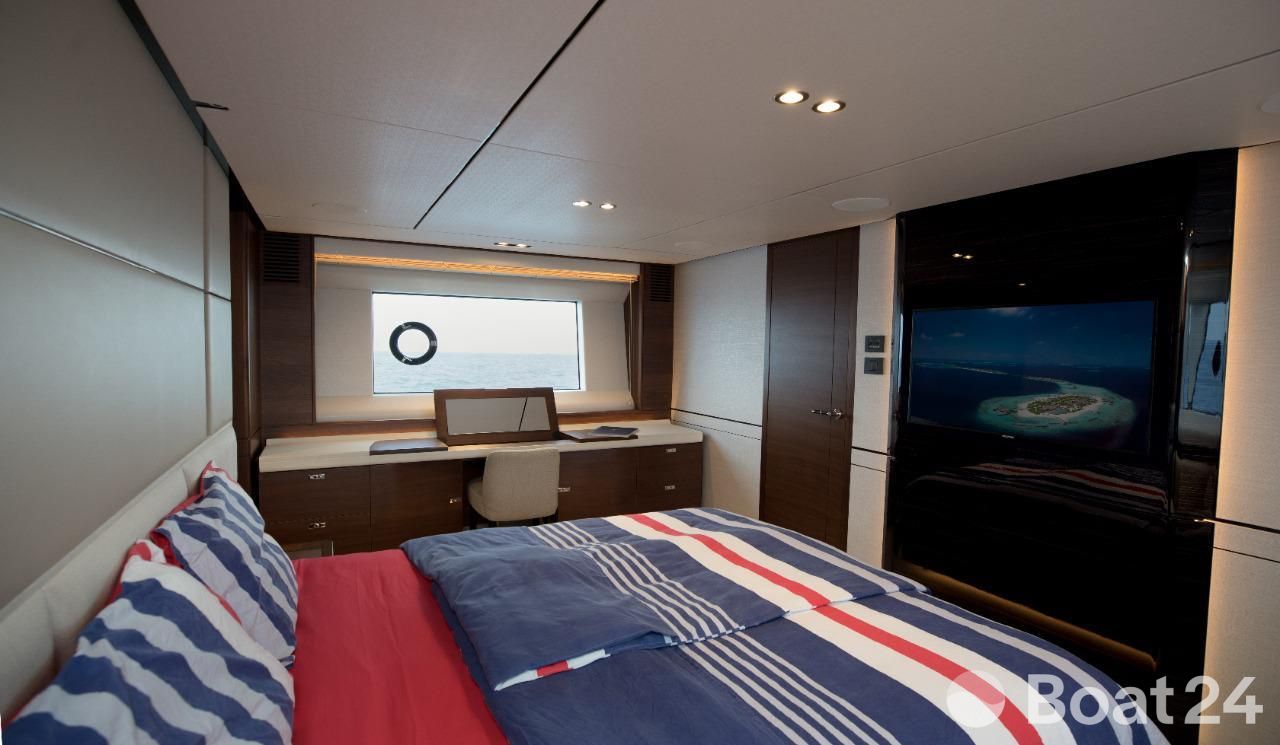

OWNER’S STATEROOM

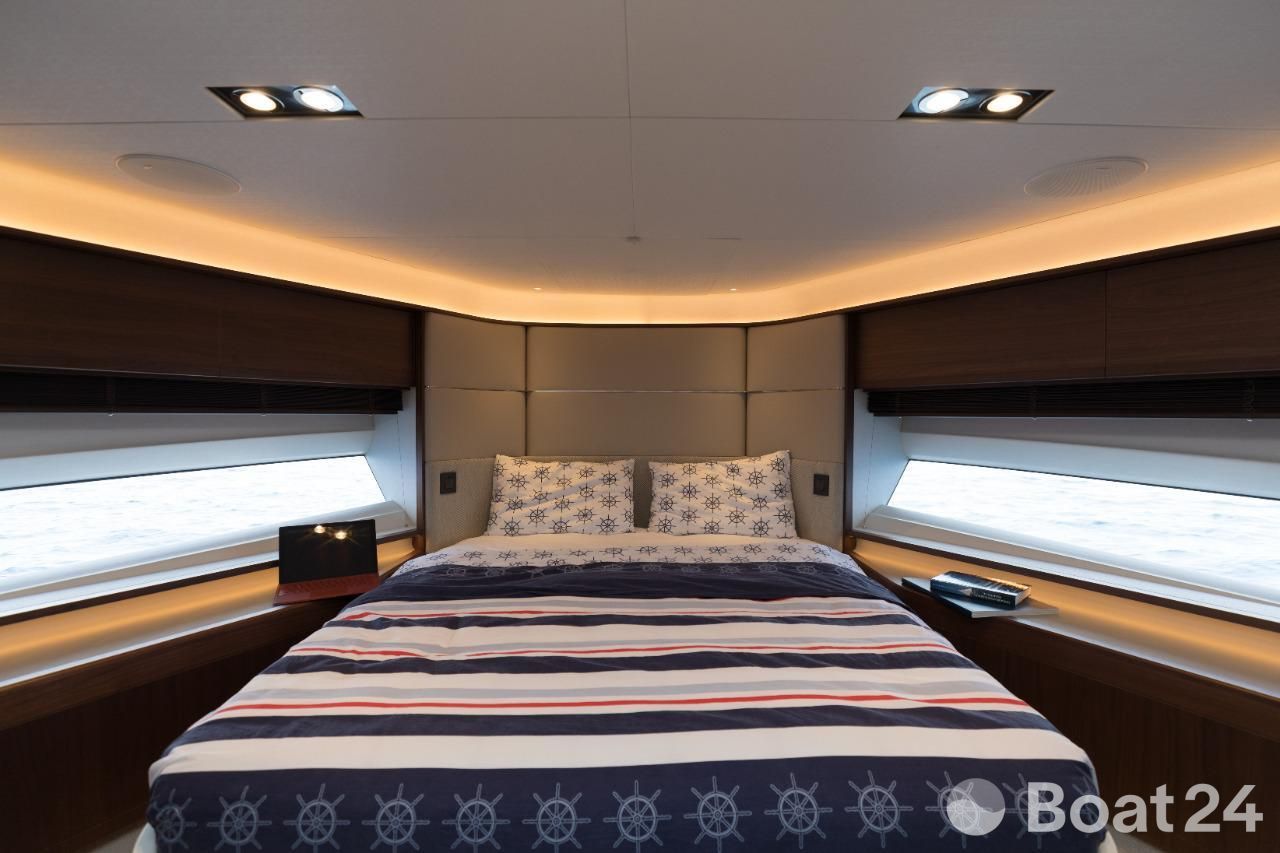

Large double bed with bedside tables and drawers below Dressing area with wardrobes with hanging and drawer storage Dressing table with chair
Sofa
Built-in safe
40” HD LED TV and DVD, radio/MP3 system with surround sound En suite bathroom
Dedicated access with lobby area
FORWARD GUEST CABIN

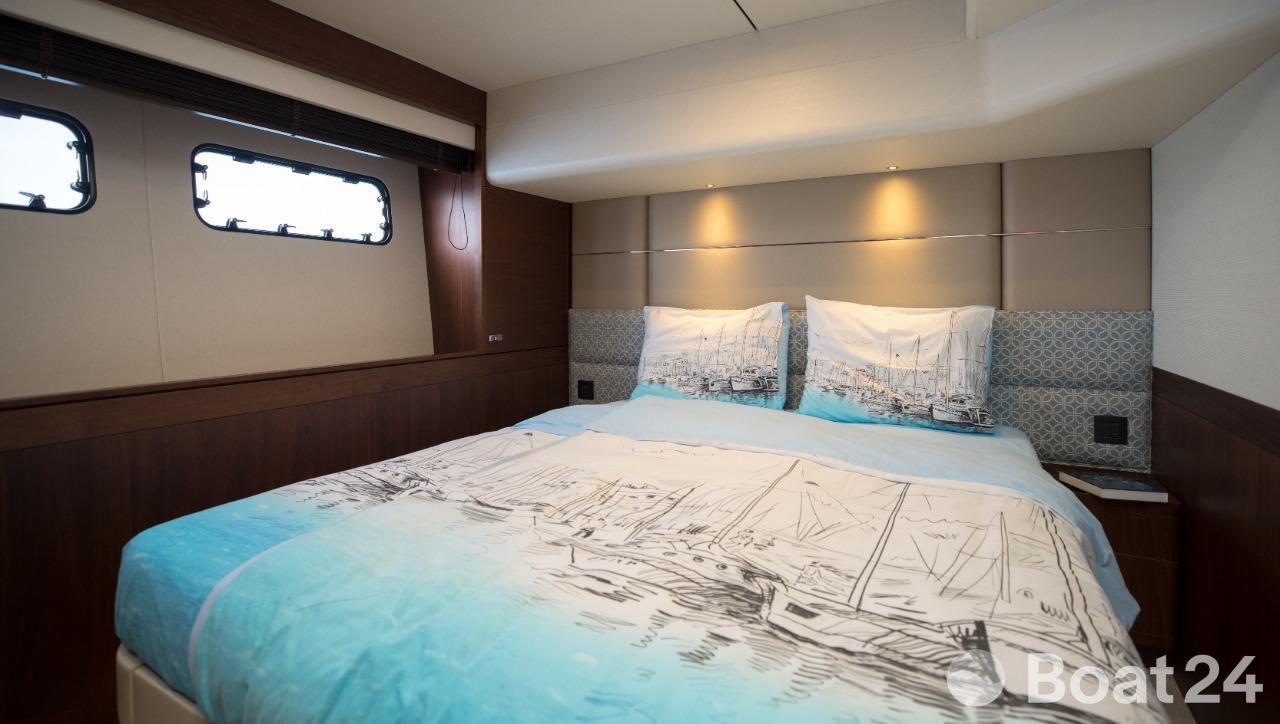

Large double bed with drawers below Large wardrobe with shelves Dressing table with stool
Deck hatch Radio/MP3 Ensuite bathroom
STARBOARD GUEST CABIN
Large double bed with drawers below (with the option of powered sliding berths) Wardrobe with shelves

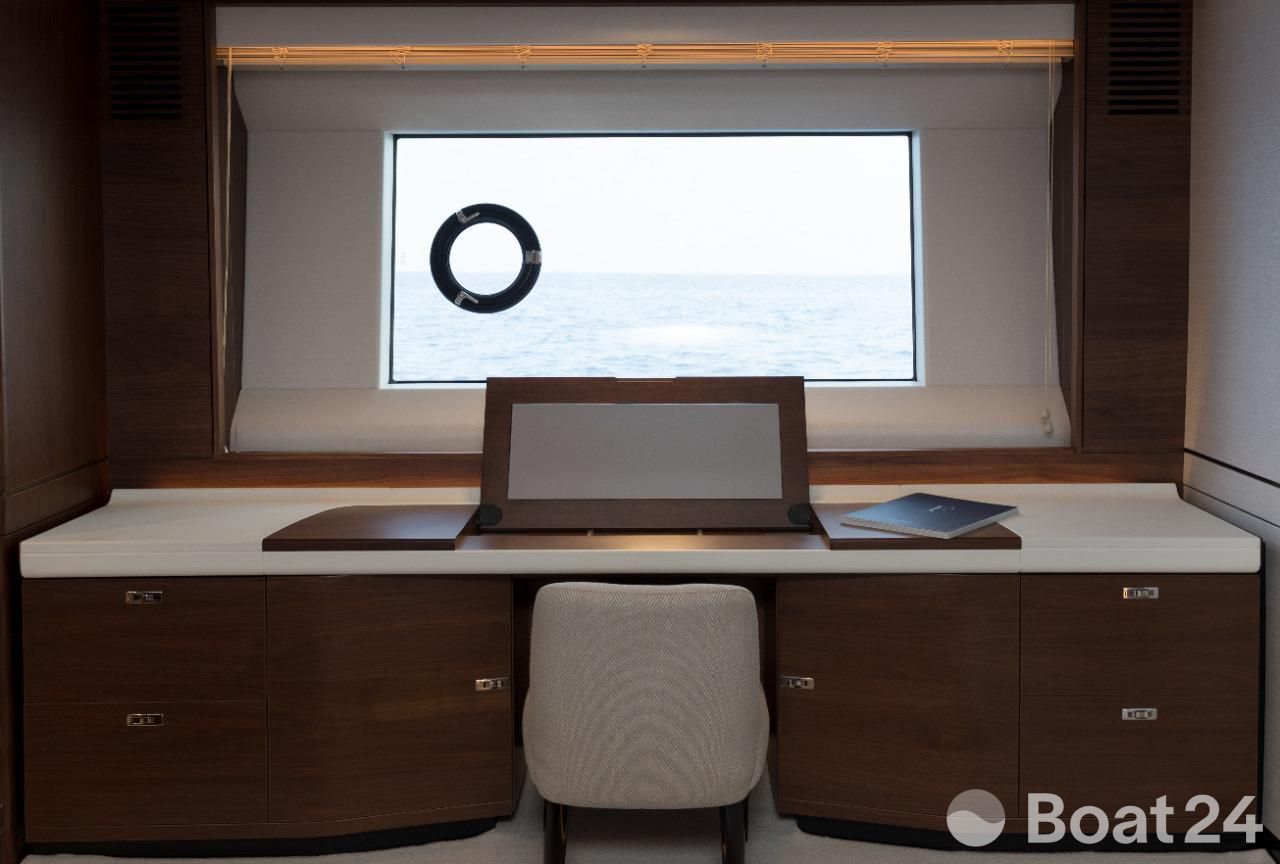

Dressing table with stool
49” UHD LED TV and DVD, radio/MP3 Storage lockers
Bedside tables with storage
En suite bathroom with day access
PORT GUEST CABIN
Two single beds with drawers below (with the option of powered conversion to double) Wardrobe with shelves
Storage lockers
Bedside table with storage En suite bathroom
LOWER ACCOMMODATION LOBBY
The lobby area has a full-height storage cupboard with the option of fitting an additional washer/dryer
CREW QUARTERS
Two single beds, wardrobe and storage lockers
Bathroom with separate stall shower, electric freshwater toilet and washbasin Utility area (optional additional crew cabin)
A combination washer/dryer is fitted in crew utility space Access to engine room

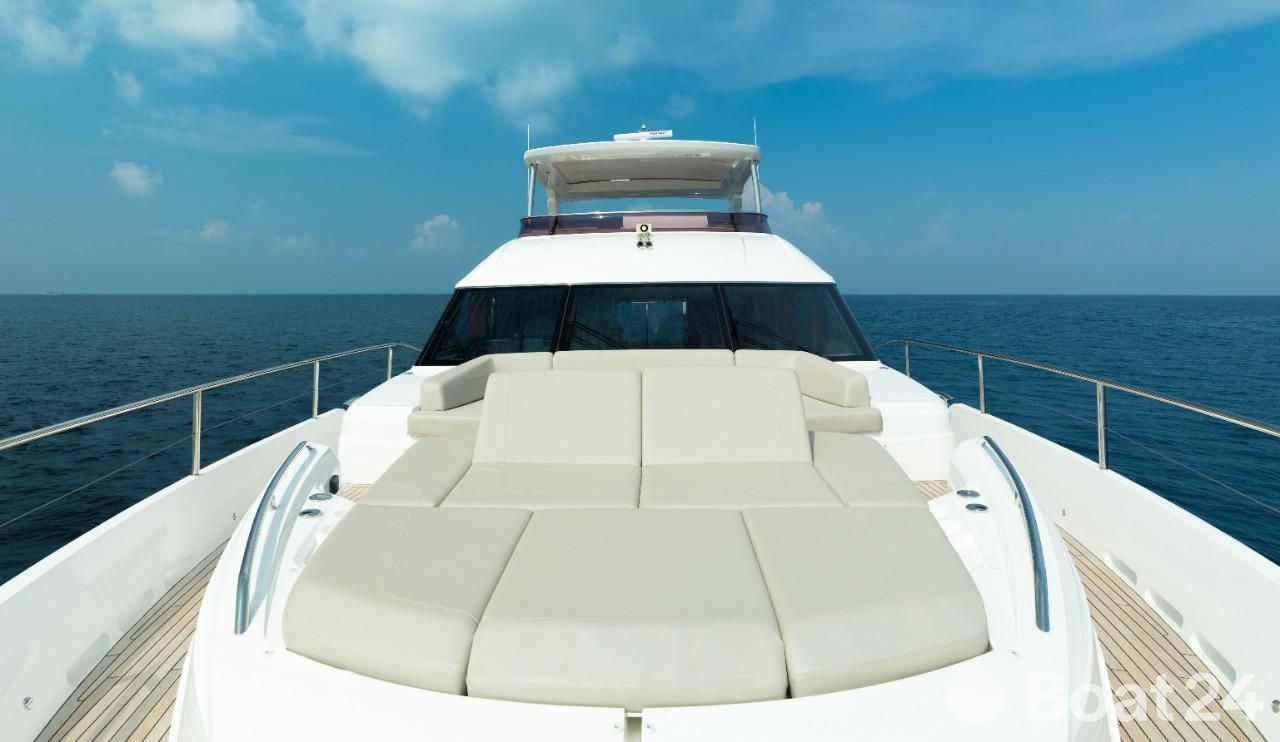

DECK FITTINGS
Teak-laid transom platform, cockpit deck, flybridge, flybridge stairway, side decks and foredeck
walkthrough
Self-stowing 50kg/110lbs Delta anchor with 100m of chain
Reversible hydraulic anchor winch with foredeck, main helm and flybridge controls Twin electric sternline mooring winches
Stainless steel cleats, fairleads and handrails Foredeck seating and sunbathing area
Storage lockers for rope, fenders and foredeck sunbed cushions Telephone connection point
Stern docking lights LED deck level lighting
Freshwater deck/anchor wash
ACCOMMODATION
All cabins and bathrooms feature opening portholes and air conditioning outlets All cabins feature 220/240v power points
All mattresses pocket sprung

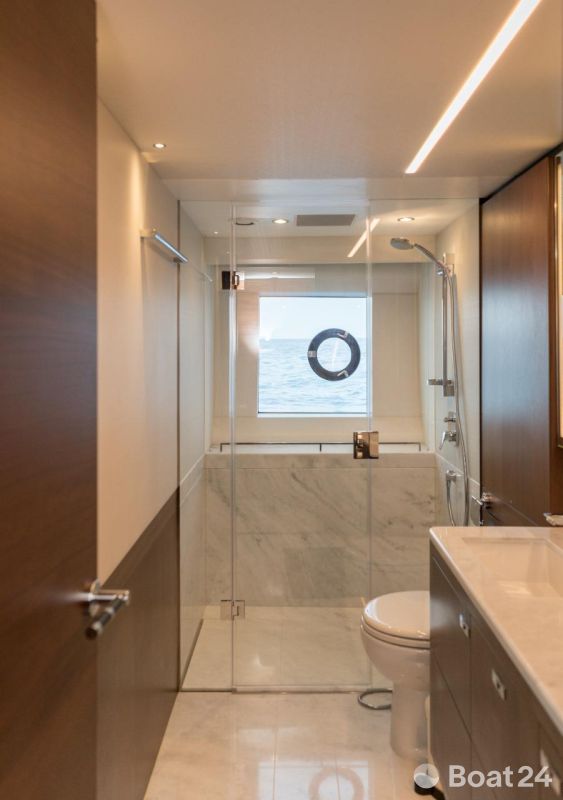

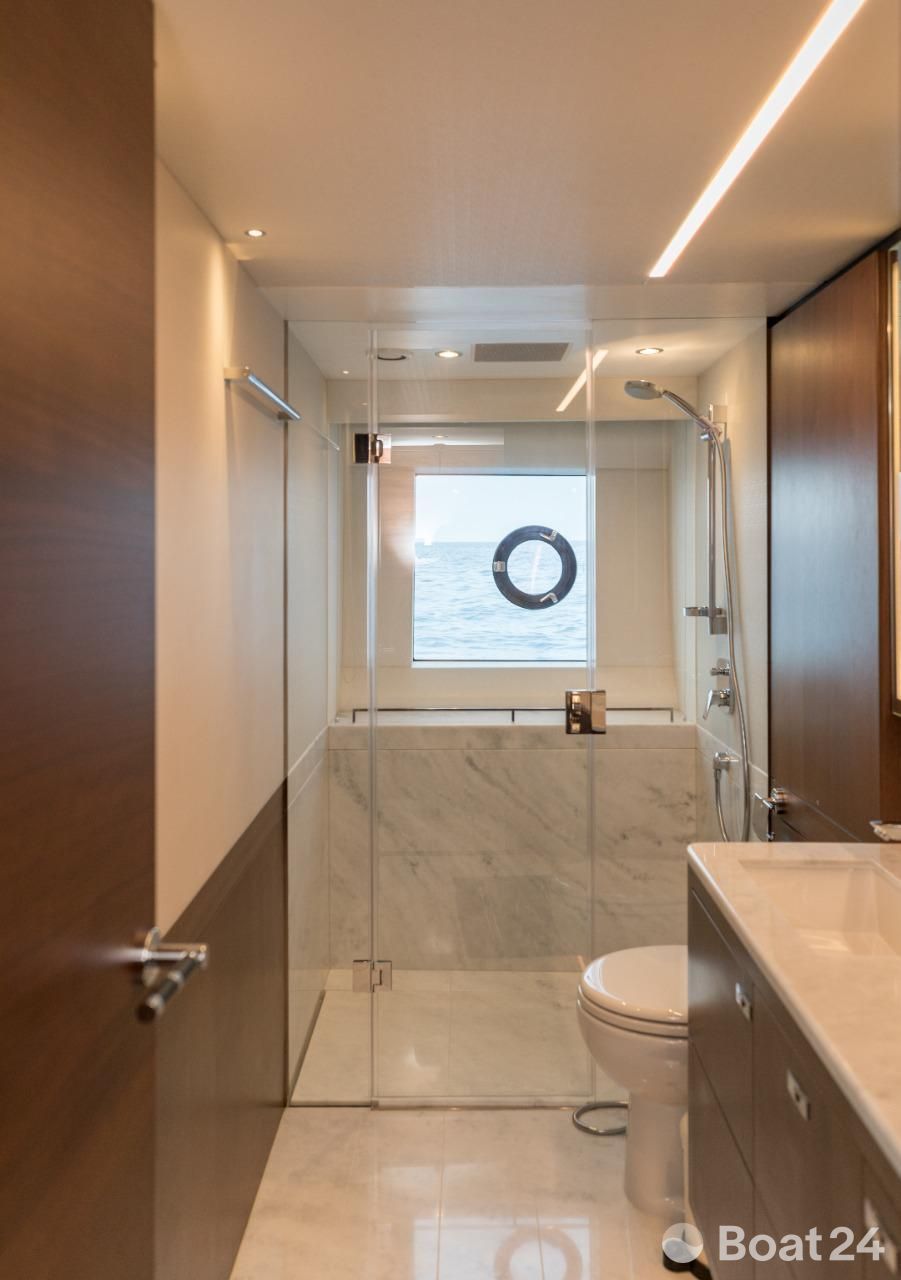

All bathrooms feature full shower stalls, electric freshwater toilets, extractor fan and 240v shaver points
INTERIOR FINISH
Furniture in Rovere Oak with satin or high gloss finish. Walnut or Alba Oak available as an option Solid surface worktops and floors in all guest bathrooms
Galley worktops in choice of granite or quartz
Choice of high quality carpet and upholstery fabric from extensive range Curtains, blinds or sunscreens to all windows and portholes
Timber-laid galley and helm floors
POWER AND DRIVE SYSTEMS
5- bladed propellers in nickel aluminium bronze Bow thruster (240kgf/529lbf)
Power-assisted electro-hydraulic steering system with hydraulic back-up Electronic engine and gear shift control system
Dripless shaft seals
Engine room extractor fan with electronic time delay
ELECTRICAL SYSTEMS
24 Volt:
4 x heavy duty batteries for engine starting 6 x heavy duty auxiliary batteries
2 x 60 amp battery charger charges both banks of batteries via an automatic switch charging system Remote battery master switches with control switch at main panel
LED lighting throughout 220/240 Volt:
22.5kW diesel generator in own sound shield with water cooled specially silenced exhaust 2 x 63 amp shore support inlet
Earth leakage safety trip, polarity check system, circuit breaker on all circuits Power points in all areas
FUEL SYSTEM
Twin fuel tanks (in NS8 marine grade alloy) with interconnection system giving 1320 gal/1585 US gal/6000l capacity

Fuel fillers on port and starboard side decks
High capacity duplex fuel filters/water traps with audible and visual fuel contamination warning system
Remote fuel cocks in cockpit locker
WATER SYSTEM
253 gal/304 US gal/1150l plus 44 gal/52 US gal/200l hot water calorifier, heated by engines and 240v immersion heater
Water level gauge
Electric freshwater WC system with 99 gal/119 US gal/450l holding tank
AIR CONDITIONING
165,000Btu chilled water system with outlets in all accommodation areas and incorporating reverse cycle heating with linked windscreen demist system. Suitable for tropical conditions (40°C)
FIRE EXTINGUISHERS
Automatic/manual override fire extinguishers in engine room with warning system at both helm positions and incorporating engine air vent closure system
Hand-operated fire extinguishers in all cabins, galley, crew and lower helm
BILGE PUMPS
Automatic electric bilge pumps
High capacity manual bilge pumps with valve system and suction points in same areas
OTHER ITEMS SUPPLIED AS STANDARD
Set of cutlery, crockery and glasses (8) Set of towels (8 large, 8 small)
Ensign staff
Fenders (8) and warps (4) First aid kit
Set of manuals

ENGINES & EXTRAS
Twin MAN V12-1800 (2 x 1800 mhp)
HYDRAULICS £2,935,000.00
Hydraulic system consisting of separate engine driven hydraulic pumps allowing any system to be supplied with hydraulic power from either engine. Including hydraulic anchor winch and 300kgF hydraulic bow thruster (in place of standard) 300kgF hydraulic stern thruster and hold function docking system. All with dual station controls STABILISATION £33,075.00
Gyro stabilisation (Seakeeper 16)
HULL COLOUR £85,905.00
White
(with dark grey waterline, black antifouling & dark grey hull pinstripe, hull & bathing platform fendering is white with stainless steel insert)
INTERIOR FURNITURE N.E.C.
Walnut interior wood satin finish (galley & helm floors are planked walnut as standard)
LAYOUT £13,420.00
Combination toilet/bidet in Master Stateroom in place of standard toilet £2,300.00
Port cabin to have double berth conversion with powered sliding £3,185.00
mechanism on inboard berth
Mattress and reading light provided in crew utility space to give
£400.00

additional berth
Fit 90 mm wide plank wood non v groove walnut flooring for all upper floor
£24,950.00
DECK HARDWARE

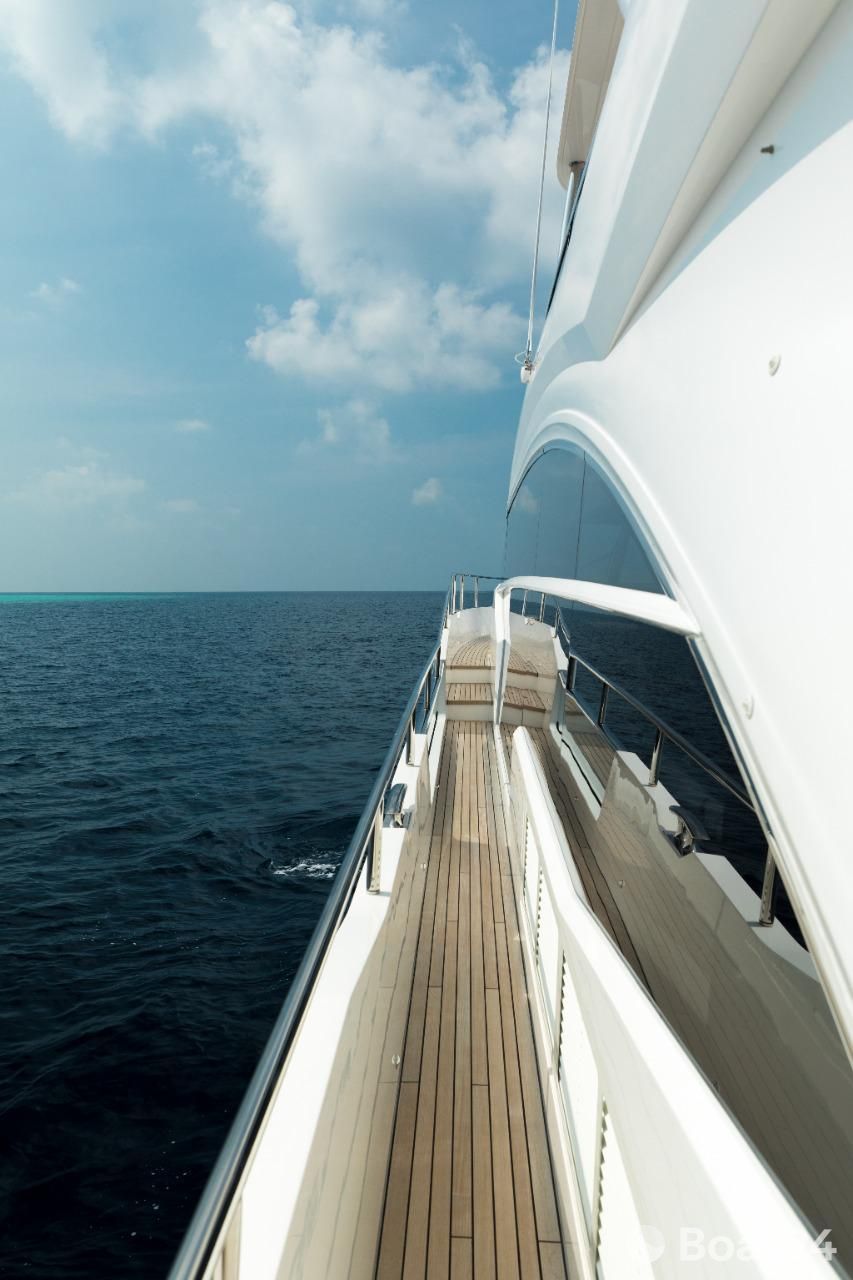

Teak laid side decks and foredeck walk through area £15,395.00
Port bulwark to have glazed aperture (with toughened glass and stainless £8,840.00
steel capping rail)
Third station controls in cockpit (engine controls, thruster controls and
£6,760.00
engine emergency stop)
Passerelle wiring – in order to be able to use the remote control when the main battery master switches are off, the passerelle is wired directly to the
domestic batteries via an isolation switch on the main AC/DC panel White GRP Flybridge hardtop featuring electric opening section in soft

£85,280.00
fabric (including dimmable lighting). Hard top legs are painted in Oyster Grey metallic as standard
Side entry gates to aft port & starboard side decks in addition to standard
£10,505.00
passerelle
Stainless steel anchor in place of standard (50Kg)
£3,190.00
Dinghy cocks on swimming platform f.o.c. £490.00
Cockpit servery unit (including 100l drawer fridge and storage cupboard) £4,785.00
Teak coffee table (with deck mounted fixing point) for foredeck
GENERATOR £1,980.00
ONAN 27Kw/50Hz generator fitted in place of standard (recommended if £2,910.00
Fin stabilisers are fitted)
Additional ONAN 27 Kw/50Hz generator
£26,180.00
ELECTRICAL
Continental 220v/240v sockets N.E.C.
Multi sockets, in place of standard sockets (throughout craft)
„please note that as these sockets will take various plug types it is the customers’ responsibility to ensure that the appliance being plugged in matches the boats operating voltage. PYL cannot be held liable for equipment damage that results from a mismatch of voltages“
(not for use in USA or Australia)
Fit 12 bottle wine cooler in galley (replaces forward drawer unit) £770.00

£825.00
Underwater transom lights (4 LUMISHORE SMX53 White) £4,515.00
Underwater lighting to aft hull sides (4 LUMISHORE SMX53 White)(2 £4,515.00
per side)
Freshwater maker (190 litre/hour) complete with remote instrumentation
£12,910.00
and service/spares kit
Lava Brick BBQ in place of standard
£125.00
Ice maker fitted in flybridge wetbar £1,550.00
Upper accommodation lighting upgrade package
Includes: Overhead accent lights to aft galley screens combined with additional ambient lighting in forward saloon area
Lower accommodation light upgrade package £1,220.00

£1,655.00
Includes: Low level ambient lighting in all sleeping cabins with overhead lighting on dimmer switch (standard in Master Stateroom)
Exterior lighting upgrade package
£1,540.00
Includes : Additional deck level lights on side decks and transom, flybridge deck and wetbar
Fit two cameras in engine room and flybridge looking backwords linked to £3,310.00
plotters
AUDIO VISUAL & COMMUNICATIONS
PREMIUM AUDIO SYSTEM
Incorporates : £3,440.00

Deck Saloon – Harman Kardon 5.1 Blu-ray system (with Bluetooth
connectivity) and KEF speakers
Owners Stateroom – Harman Kardon 5.1 Blu-ray system (with Bluetooth
connectivity) and KEF speakers
Forward Guest Cabin – Harman Kardon 2.1 Blu-ray system (with
Bluetooth connectivity) and KEF speakers (when option TV is selected)
Flybridge – Fusion UD755 Radio/iPod/MP3 player with waterproof
speakers also linked to saloon
Forward Guest Cabin – 32″ LED TV linked to Harman Kardon 2.1 Bluray £1,140.00
system (with Bluetooth connectivity) and KEF speakers
(only applicable when Premium Audio System is selected)
Starboard Guest Cabin – 28″ LED TV with a Fusion MS-AV755 £2,000.00
Radio/DVD/MP3 player with Bluetooth facility
Crew Cabin – 22″ LED TV with a Fusion MS-AV755 Radio/DVD/MP3 £1,755.00
player with Bluetooth facility
Cockpit speakers with local control (linked to flybridge system) £320.00
(Recommended when the hard top option is selected)
Foredeck seating walk through area – waterproof speakers linked to the £560.00
flybridge audio system, with separate local control
KVH (TV6) Tracvision (linked to all television sets) £13,710.00
KVH (60cms) dummy dome £1,700.00
Supply 5 sat tc decoders connected ta all 5 tv’s £4,650.00
NAVIGATION
Supply Raymarine Axiom XL16 (15.6″) colour multifunction displays two at lower helm and two at upper helm £8.290,00
Raymarine Magnum HD colour radar, 12kW pedestal with 48″ open array £1,400.00
scanner in place of 4kW
Raymarine remote control keypad (RMK-10) at upper and lower helms £620.00
Raymarine AIS 700 Class B transponder interfaced with chartplotter & £925.00
with 8ft (2.4m) aerial
European version plotter N.E.C.
International VHF N.E.C.
EXTERIOR UPHOLSTERY / CANVAS / COVERS
Fit reticulated foam to all standard exterior Cockpit, Flybridge and £6,670.00
Foredeck seating/sunpads in place of standard – Does not include
Flybridge helm seats
Foredeck sun awning with carbon fibre poles £6,070.00
Aft flybridge sun awning (with hardtop only) £4,450.00
ACCESSORIES
Fender socks with Princess Logo – Grey (10 peaces) £250.00
SPARES
1Kg Hull/Superstructure gelcoat £30.00
Spare set of anodes (hull, hydraulic platform & swim ladder) £145.00
