Details

Lieferung europaweit zu Selbstkosten.

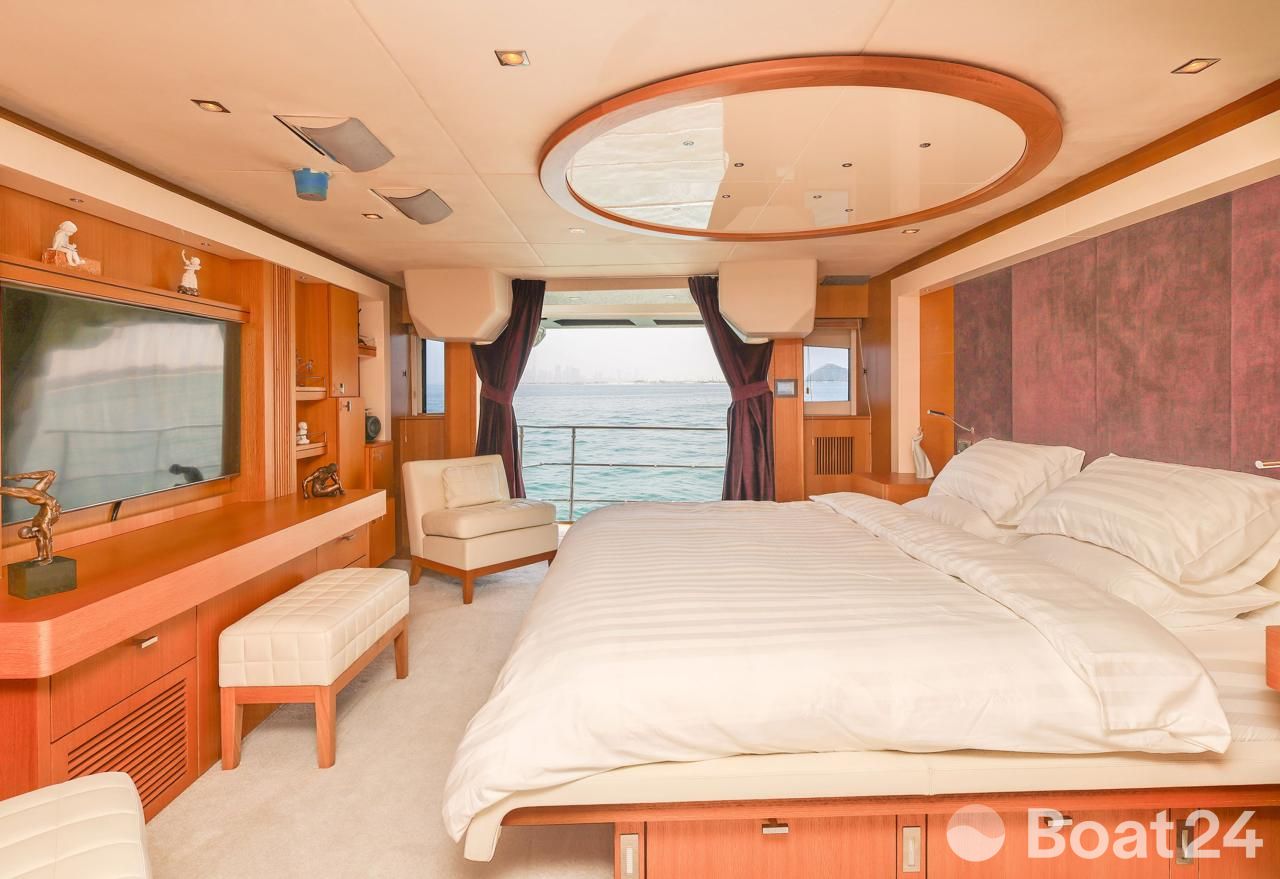

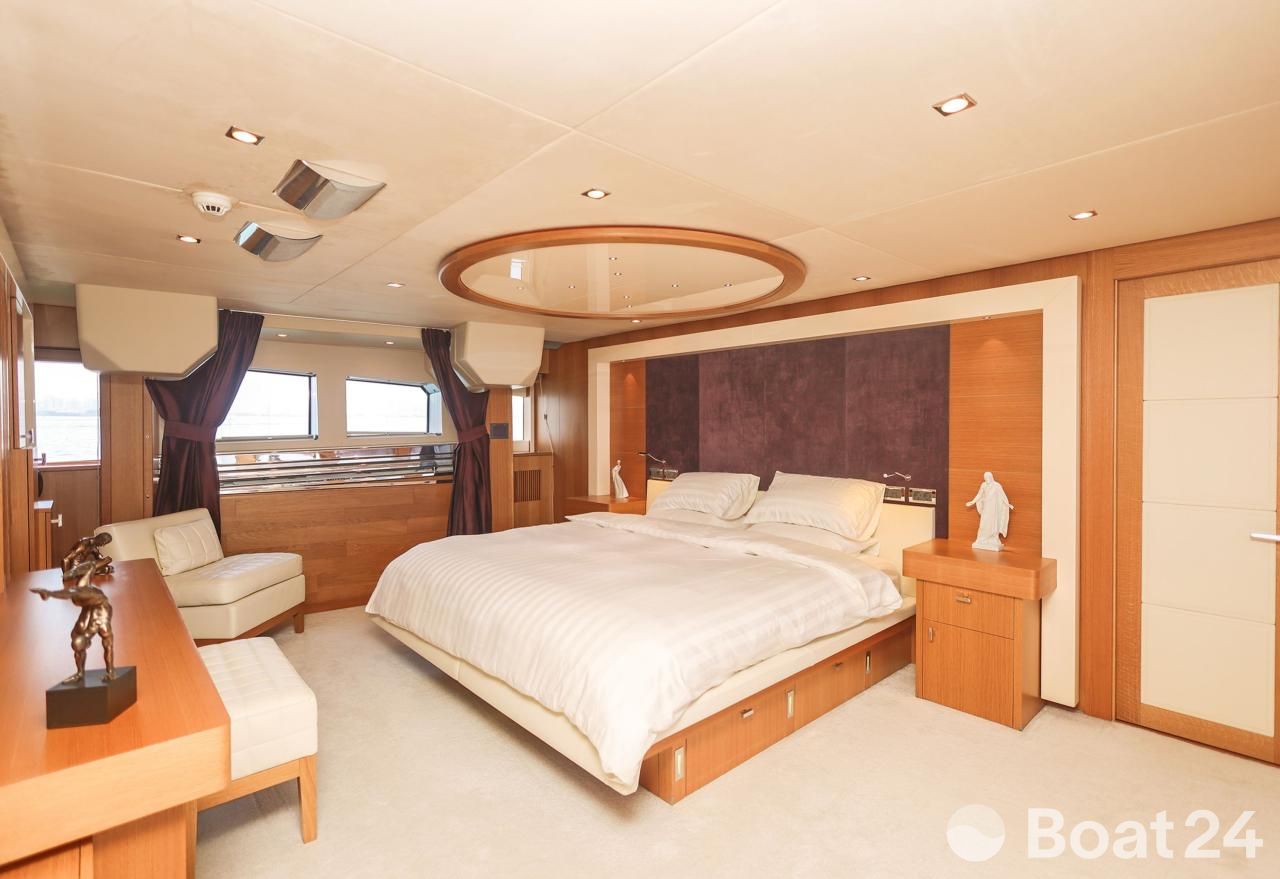

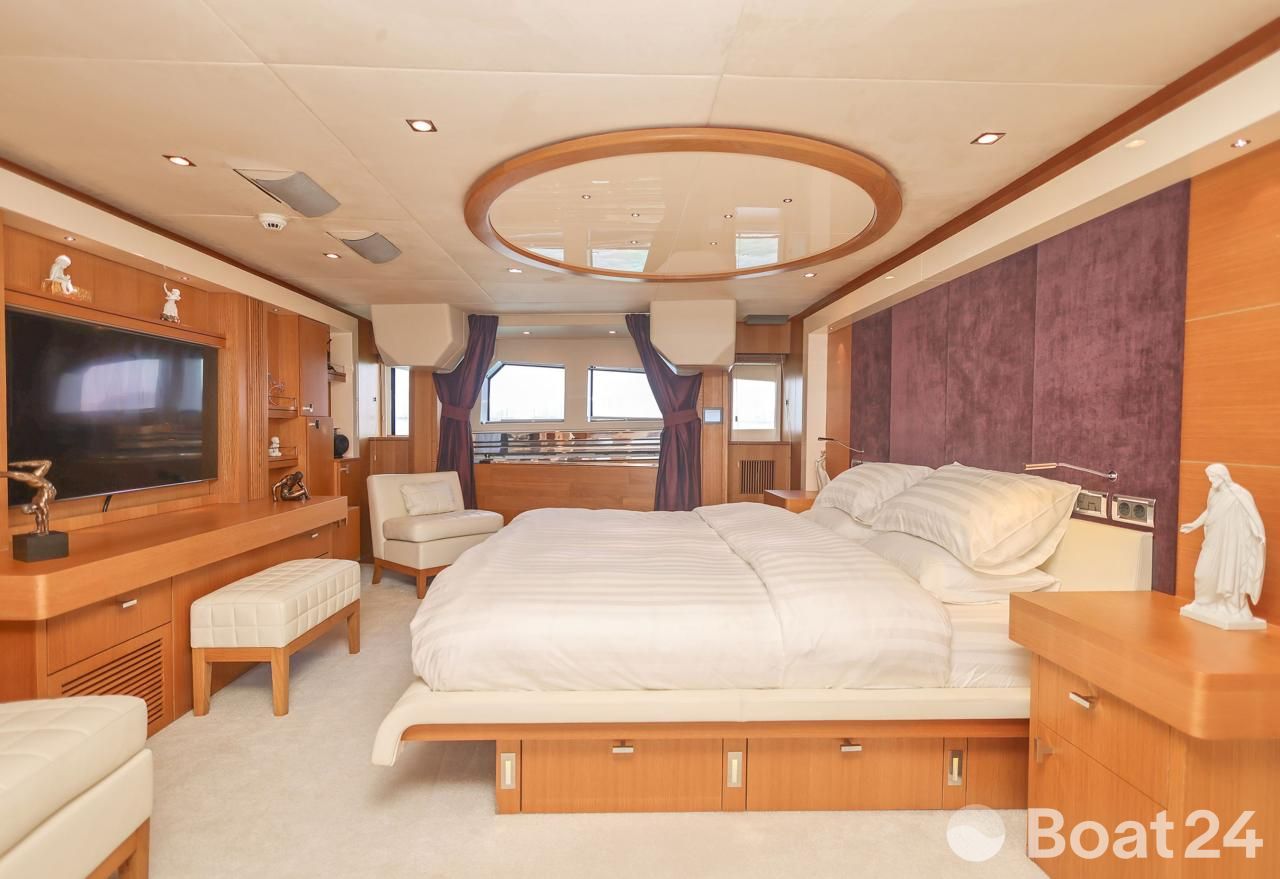

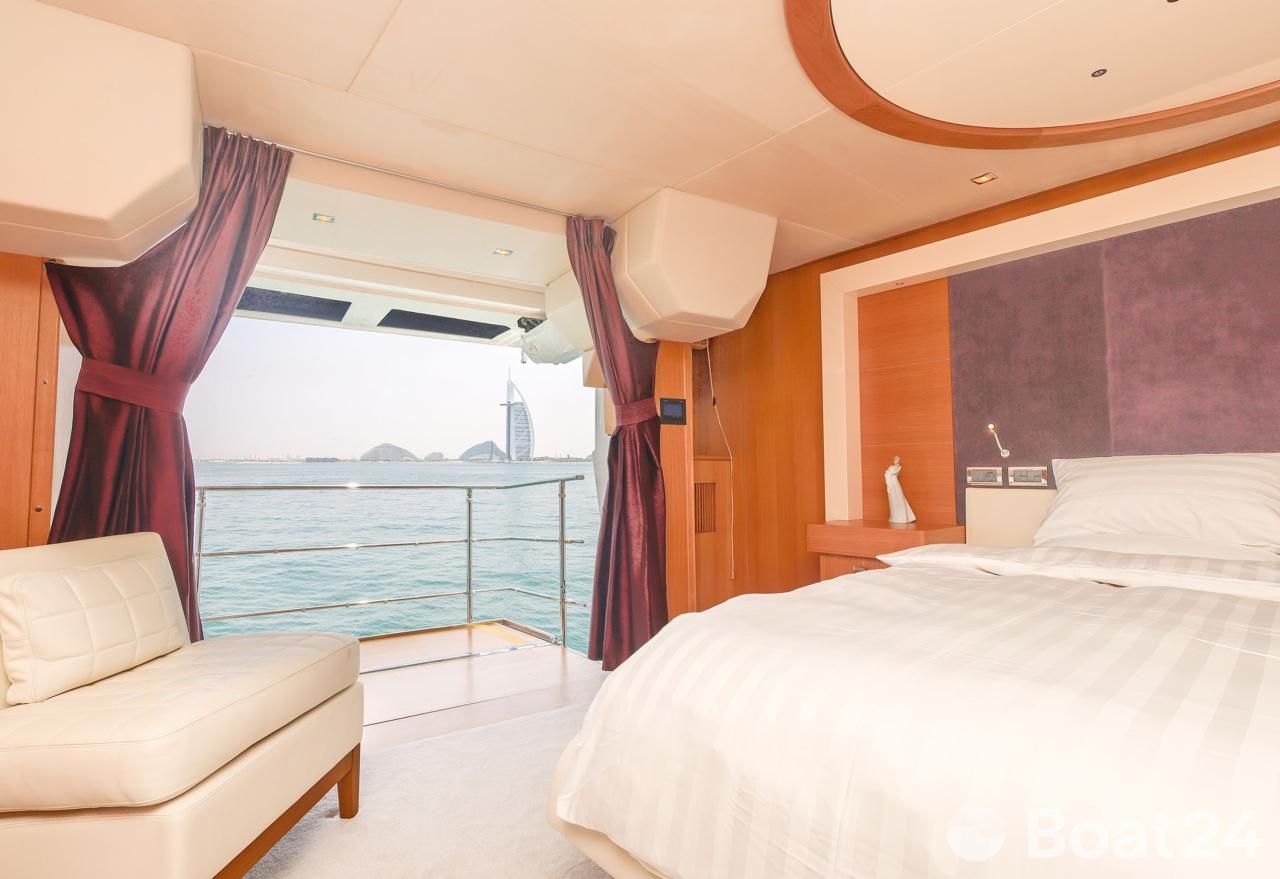

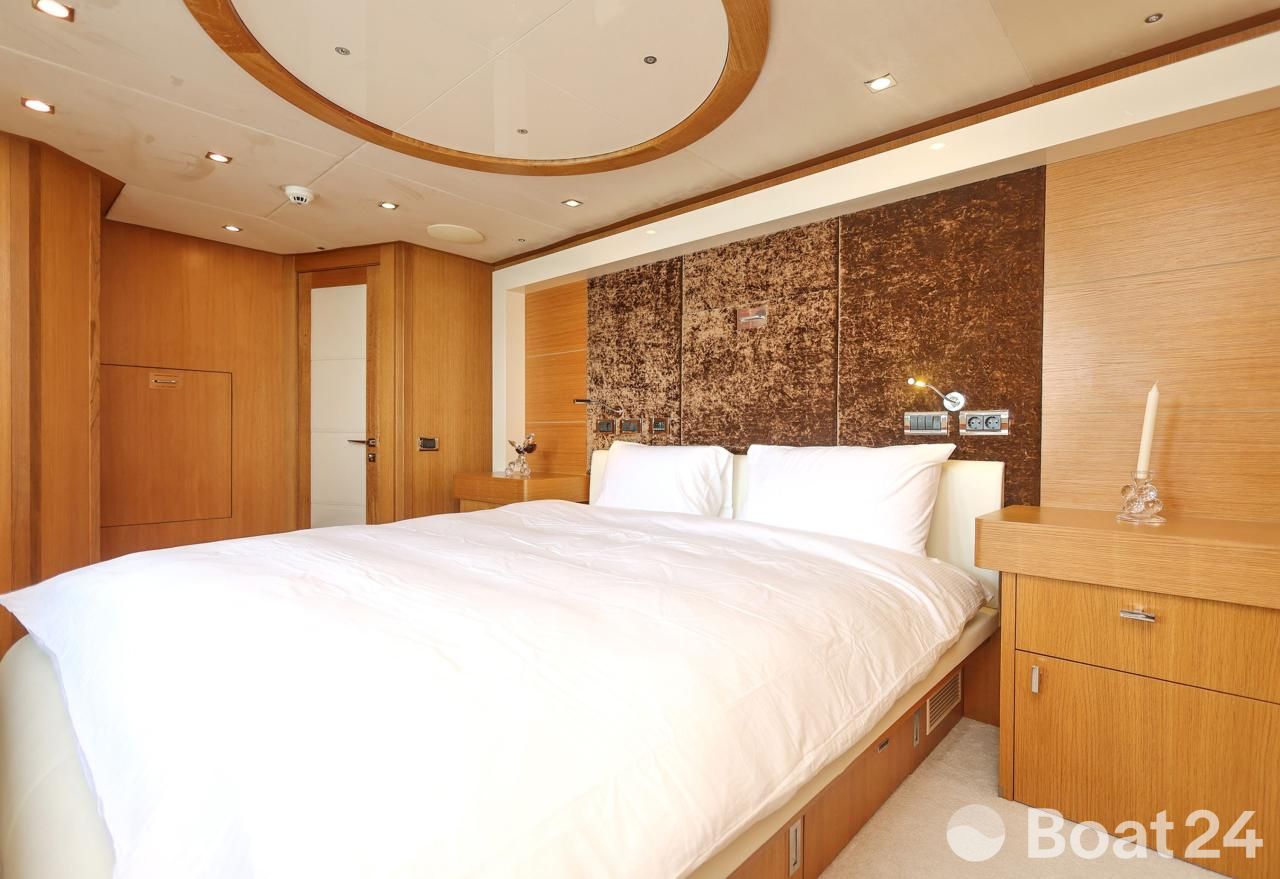

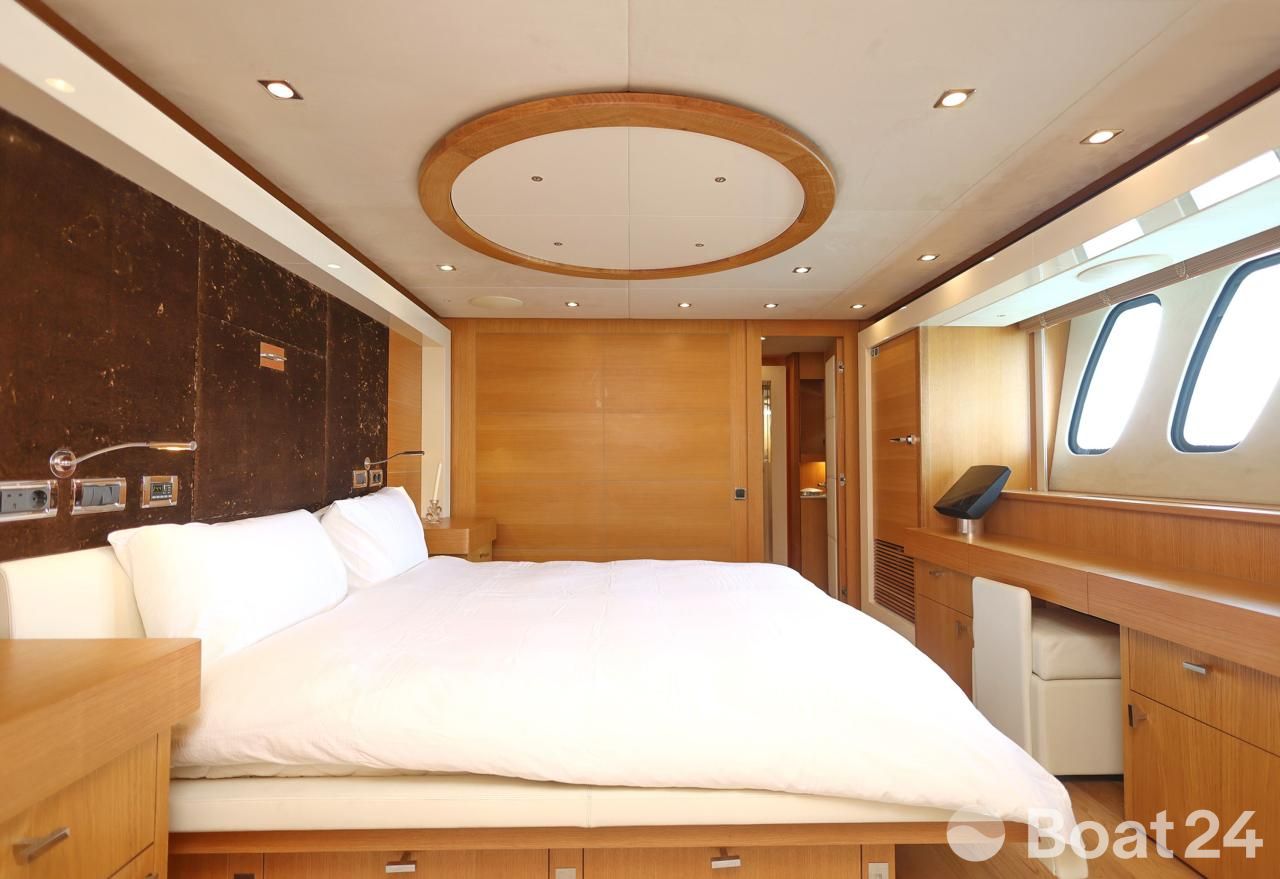

Owner’s Suite, Main Deck Forward
A majestic full beam stateroom forward of the main saloon on the main deck, the bedroom features a large flat screen television and optional hydraulic balcony.

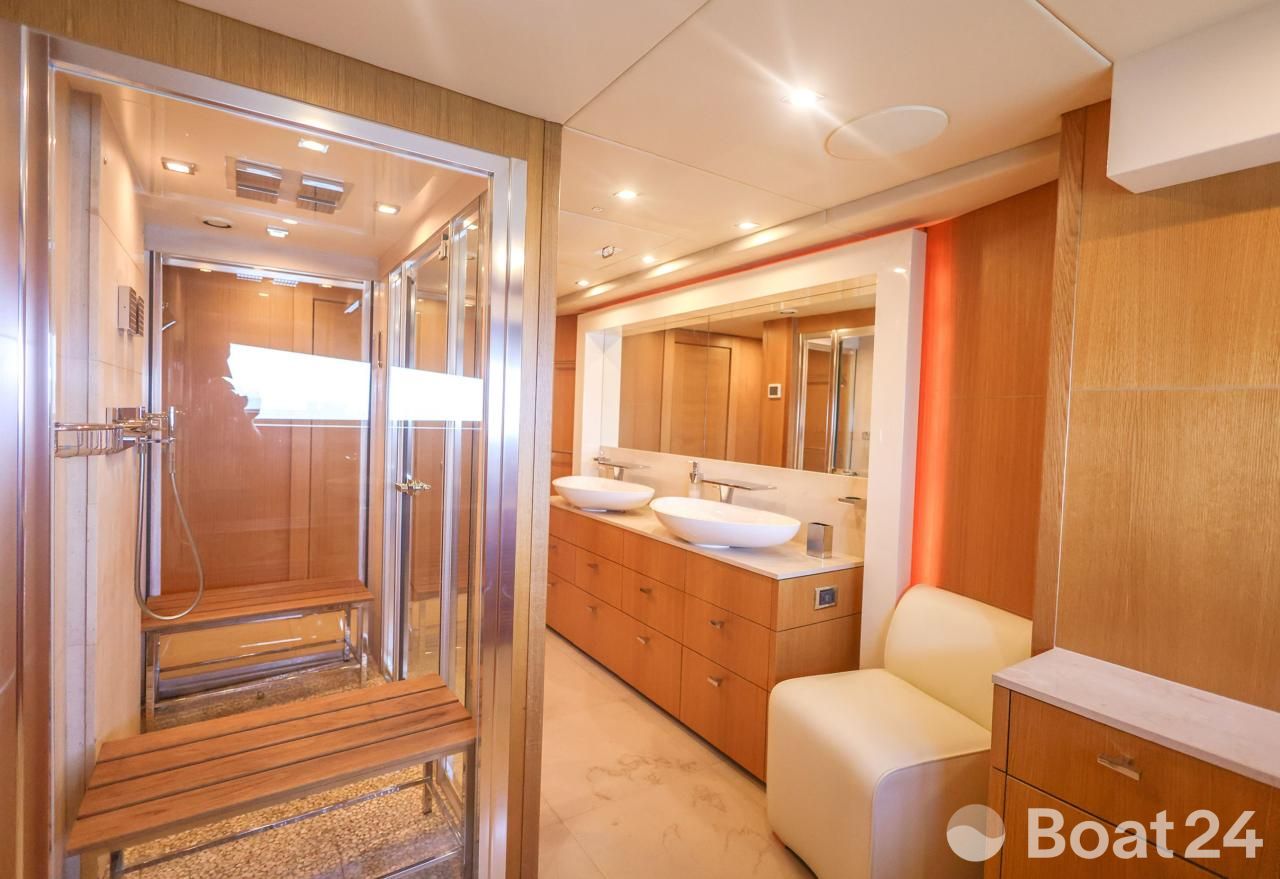

Forward is the spacious en suite with his and hers washbasins and enclosed shower & stream room.

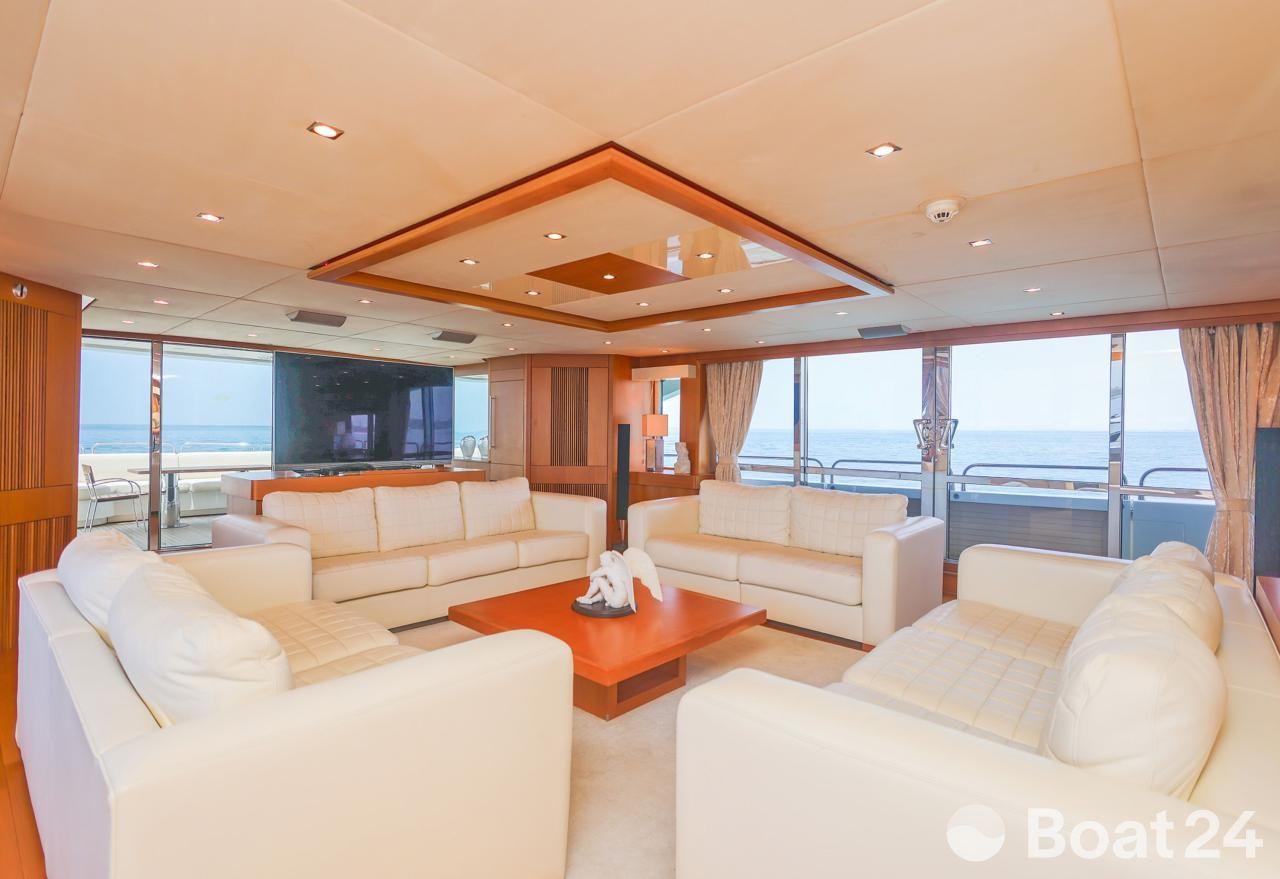

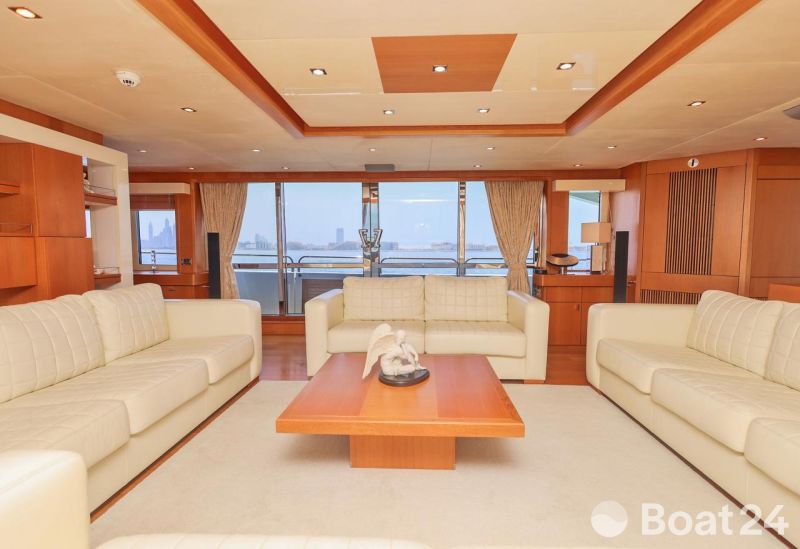

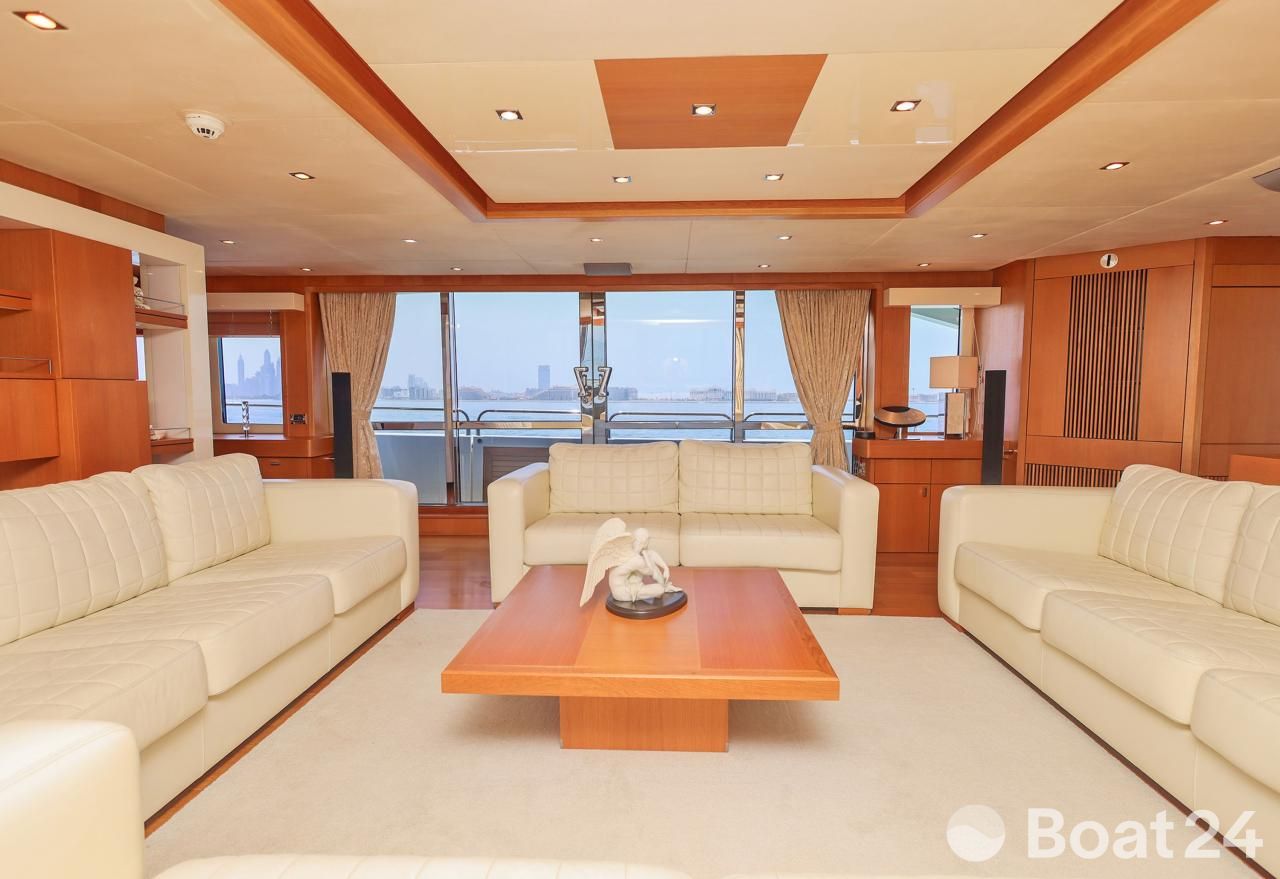

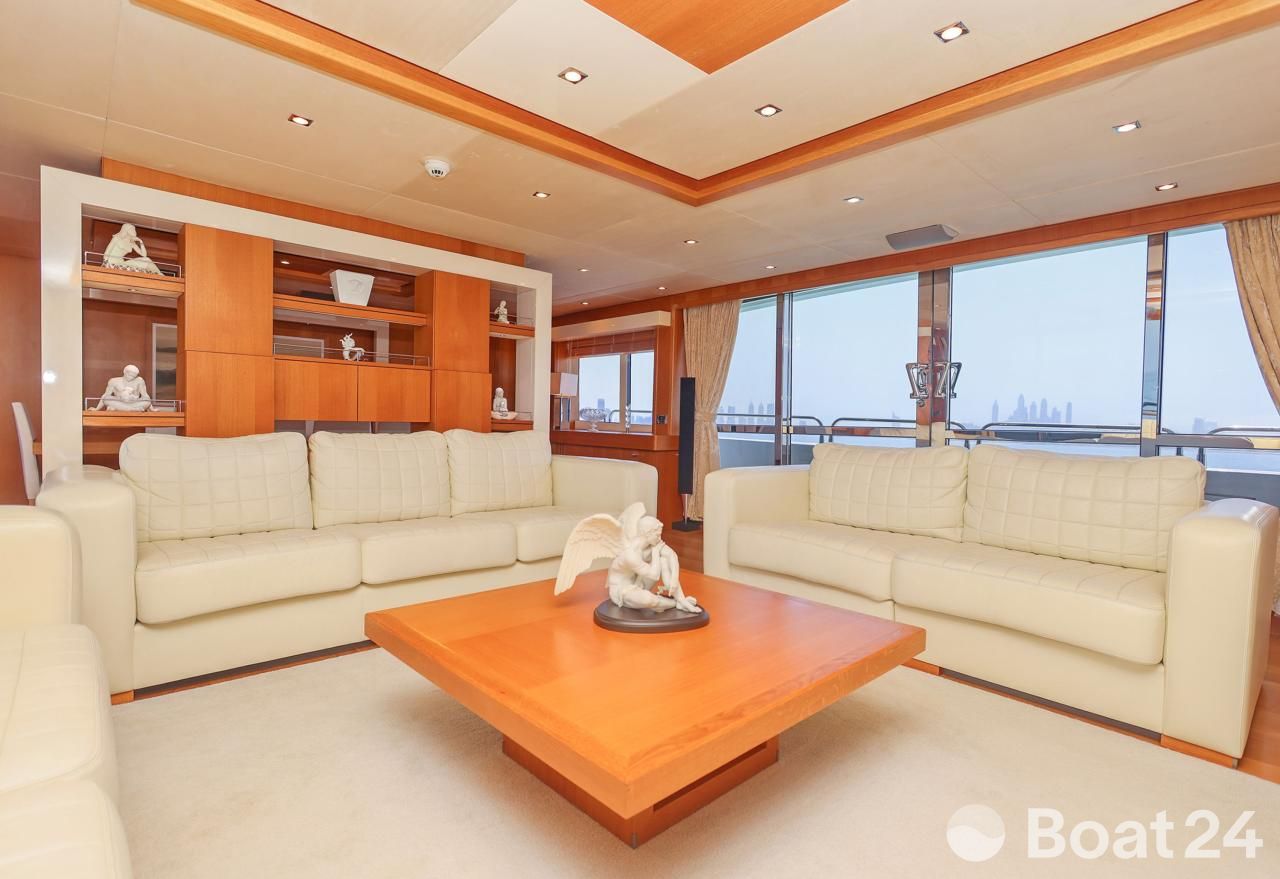

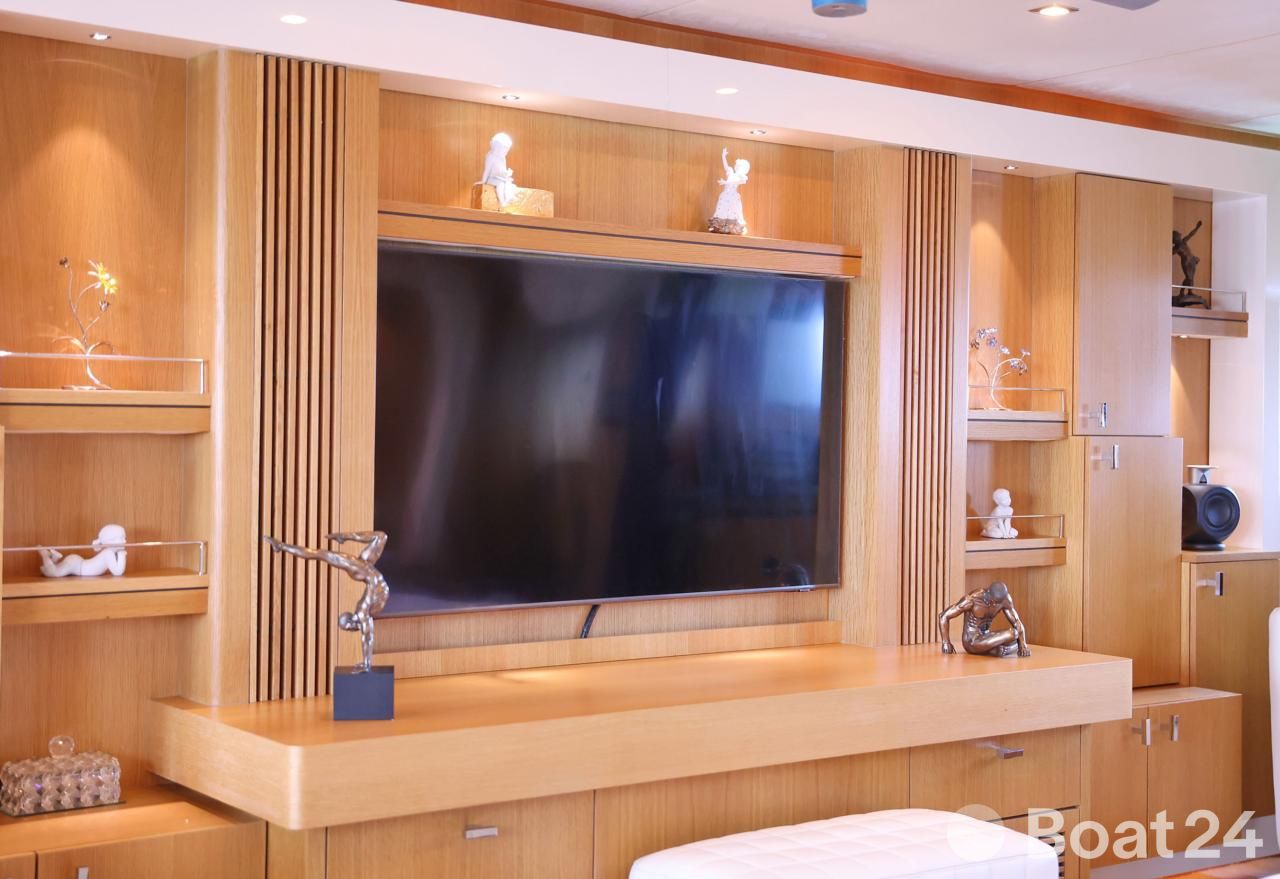

Main Salon, Main Deck

BO System

TV Screen BO

iPod docking station

Mini Fridge & Bar

Mini Fridge & Bar

OCEAN AIR blinder

Sounds System (Subwoofer)

Escape Hatch (Floor bathroom crew, top sinks foredeck)

Steam Shower

Bathroom Heating Floor

Entry walking wardrobe

Additional sound insulation

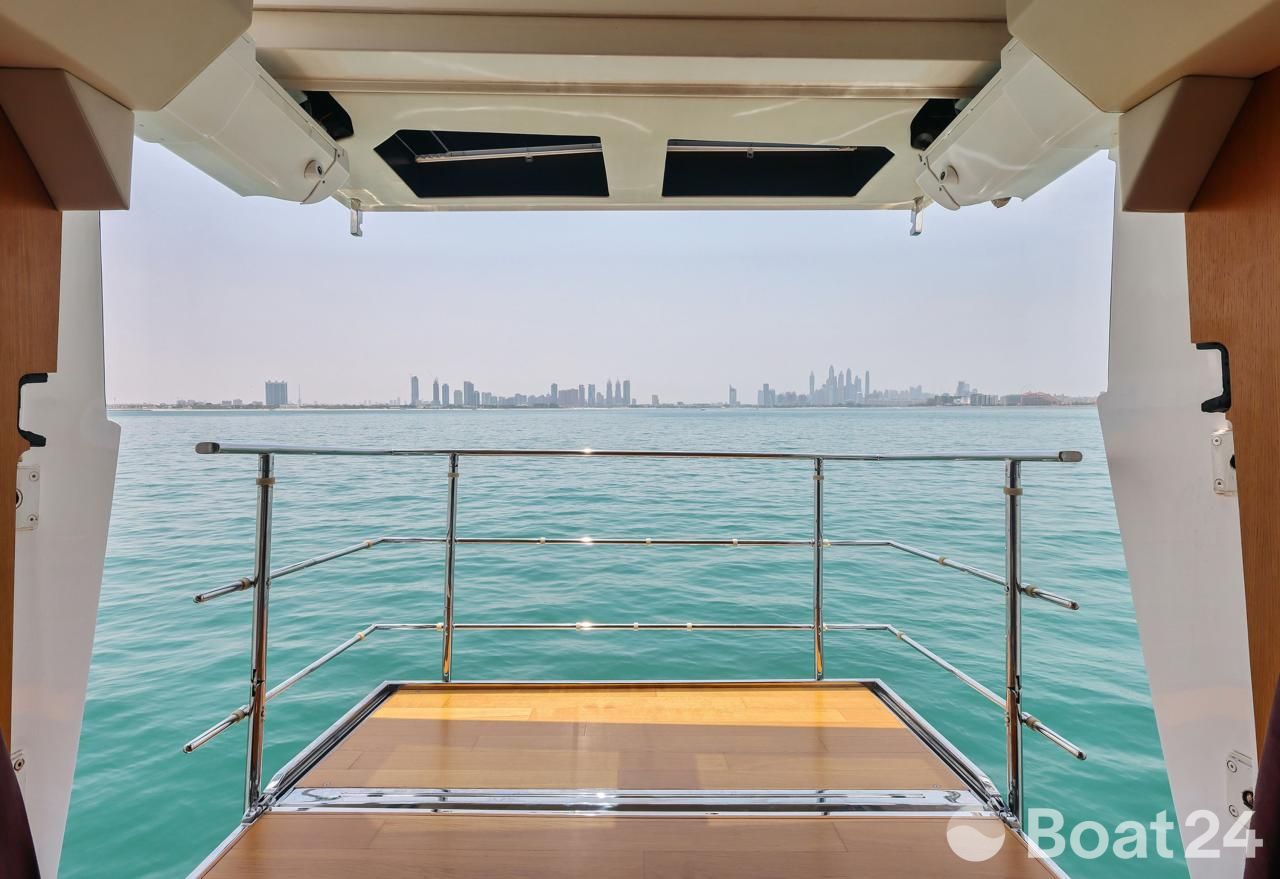

Balcony : (BESENZONI) full hull side split door arrangement with automatic stanchions

Teak Inlay

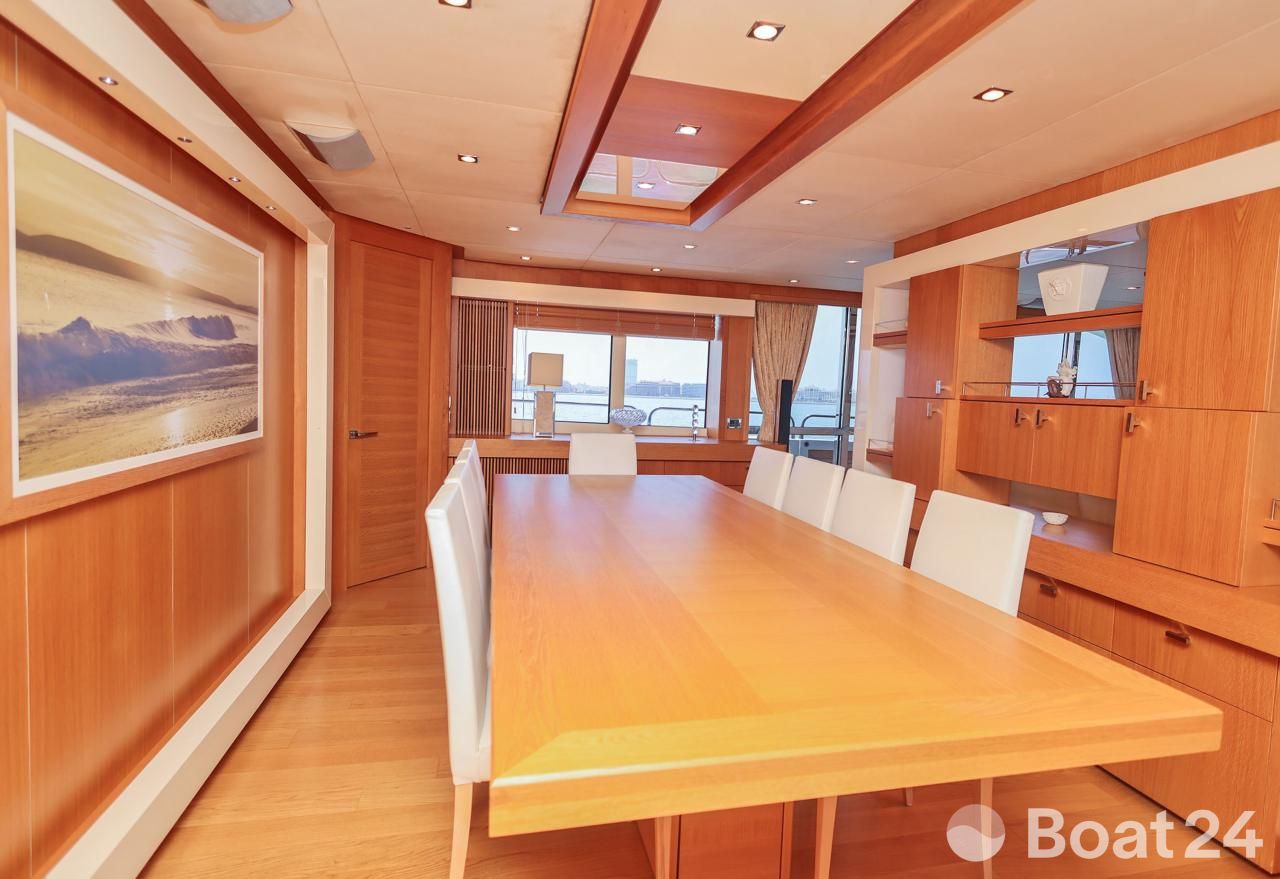

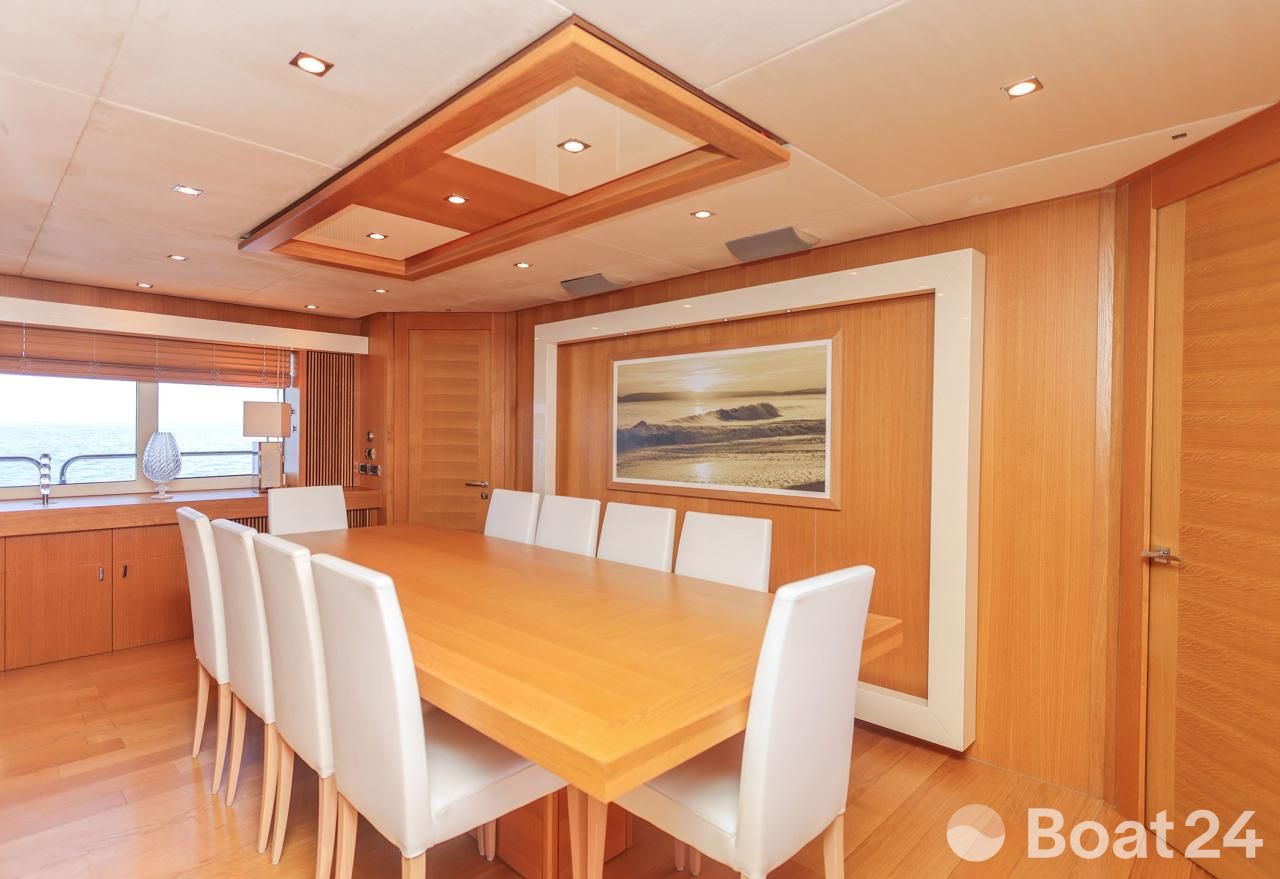

Dining Salon, Main Deck
An open-plan area that is the perfect meeting place for guests, the main saloon feature s ample seating, a rise and fall flat screen television and hydraulic balconies.

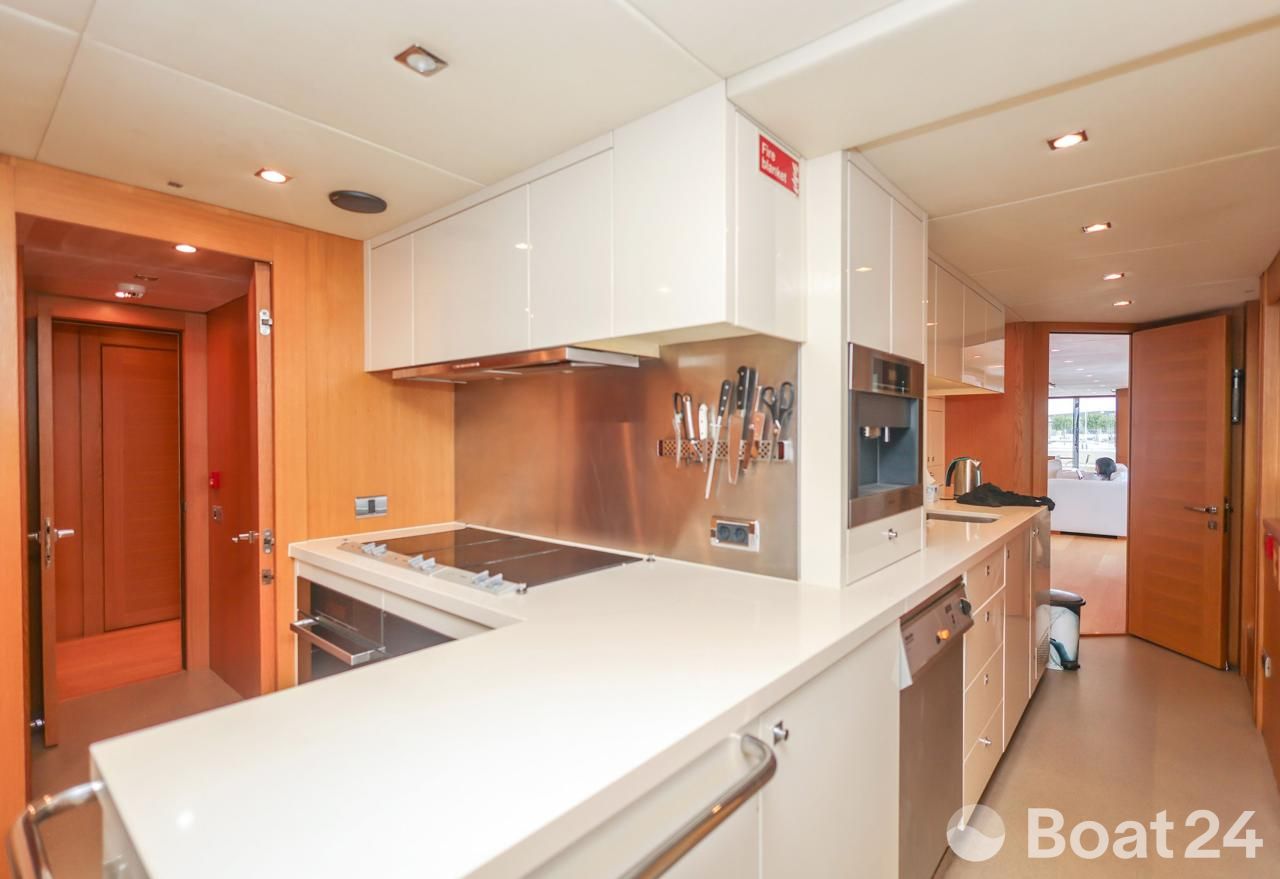

Galley, Main Deck Forward Amidship
This area features a table that can sit twelve and benefits from an airy, light feel with proximity of the balconies. Located on the main deck adjacent to the dining area, this is a fully fitted, chef-standard kitchen where all guest meals, including formal dinner parties, can be prepared with ease.

All Oak Panelling & Floor

Blade Store Wood

Fridge & Icemaker

AV System BO

4 Sofas ? Coffee Table

UV Tinting on main deck saloon side windows and patio doors

Electric Patio Door

Full height bulwalk balcony fitted with manual stanchions

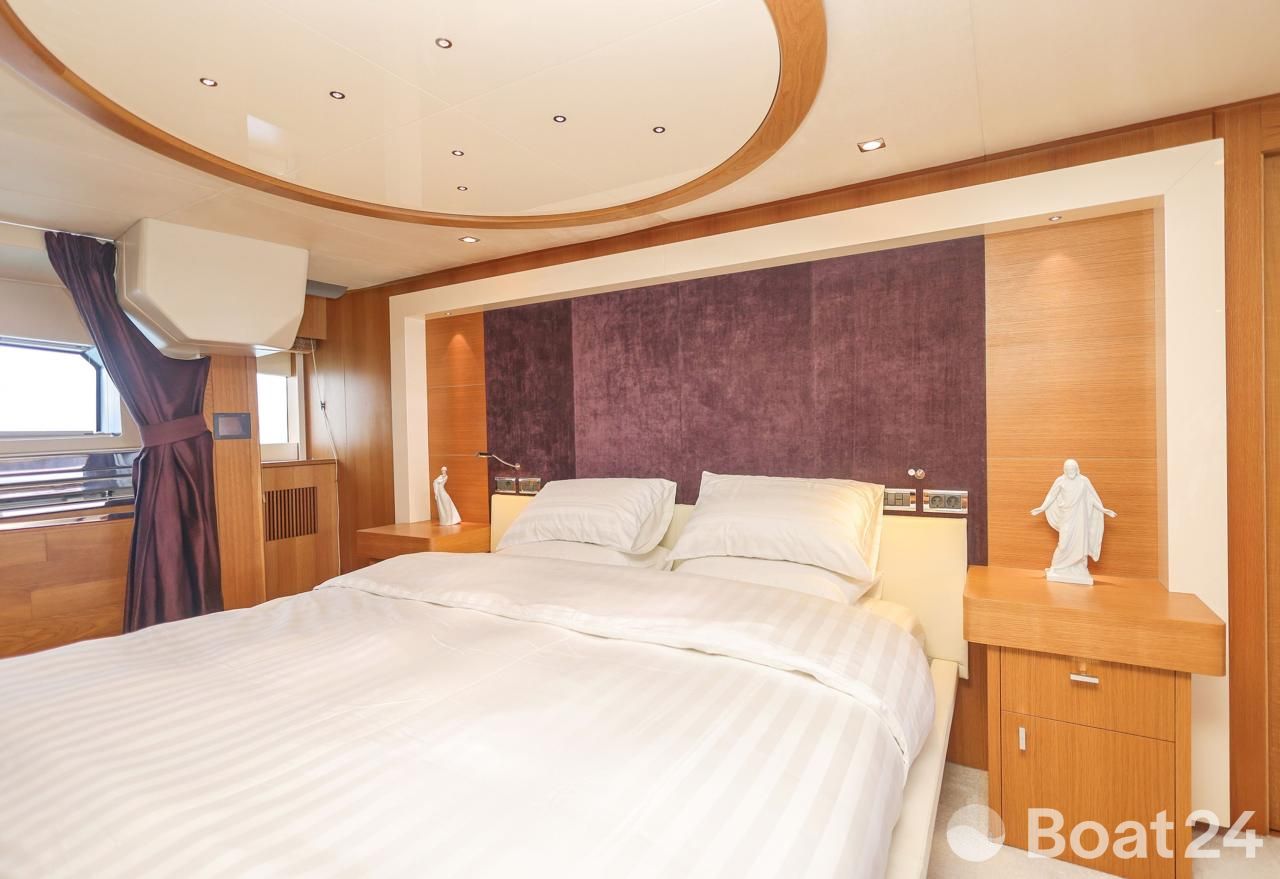

Guest Staterooms

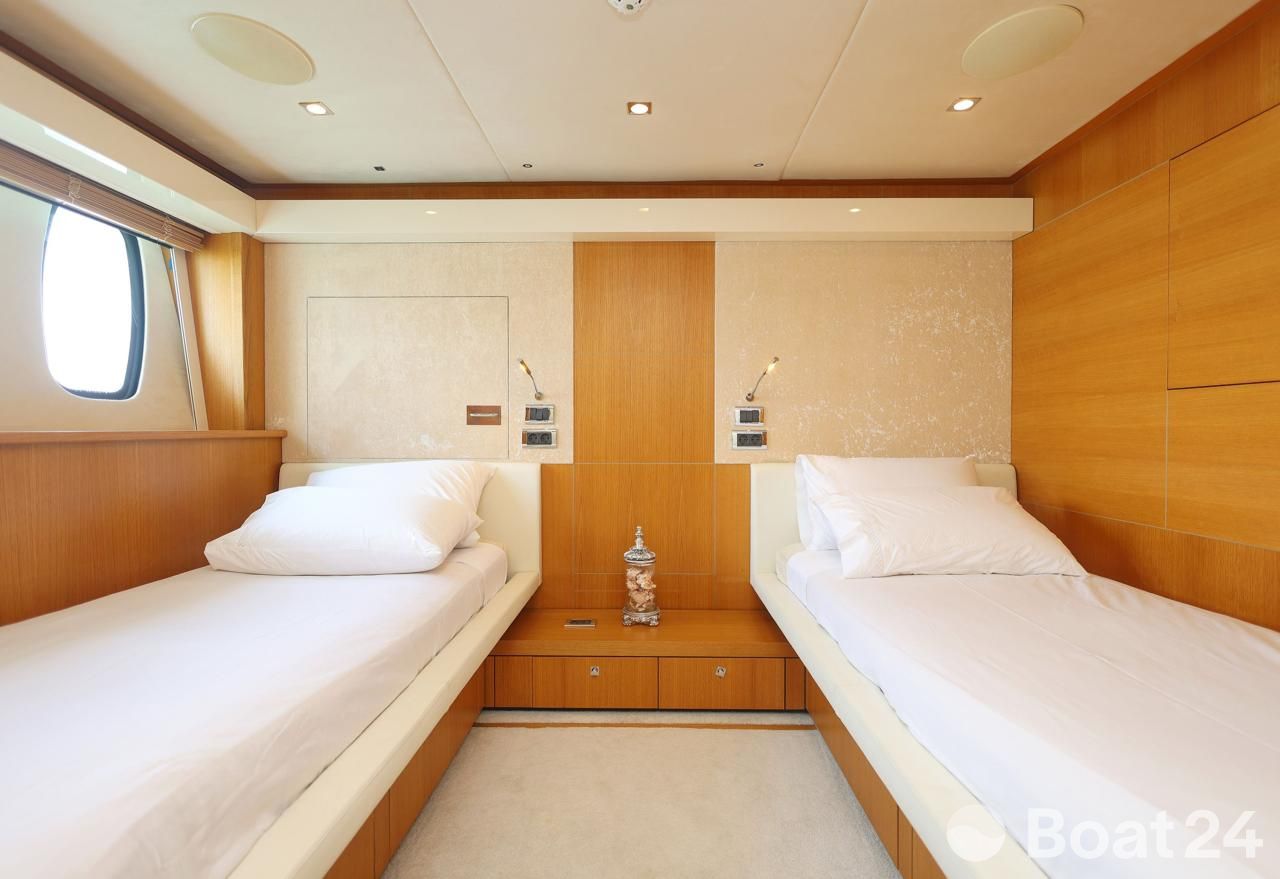

Port guest stateroom offers twin beds and en suite shower room.

Entertainment B&O IPOD Dock

(2) Guest staterooms below deck aft with Queen Size bed and en suite bathroom, entertainment B&O IPOD Dock

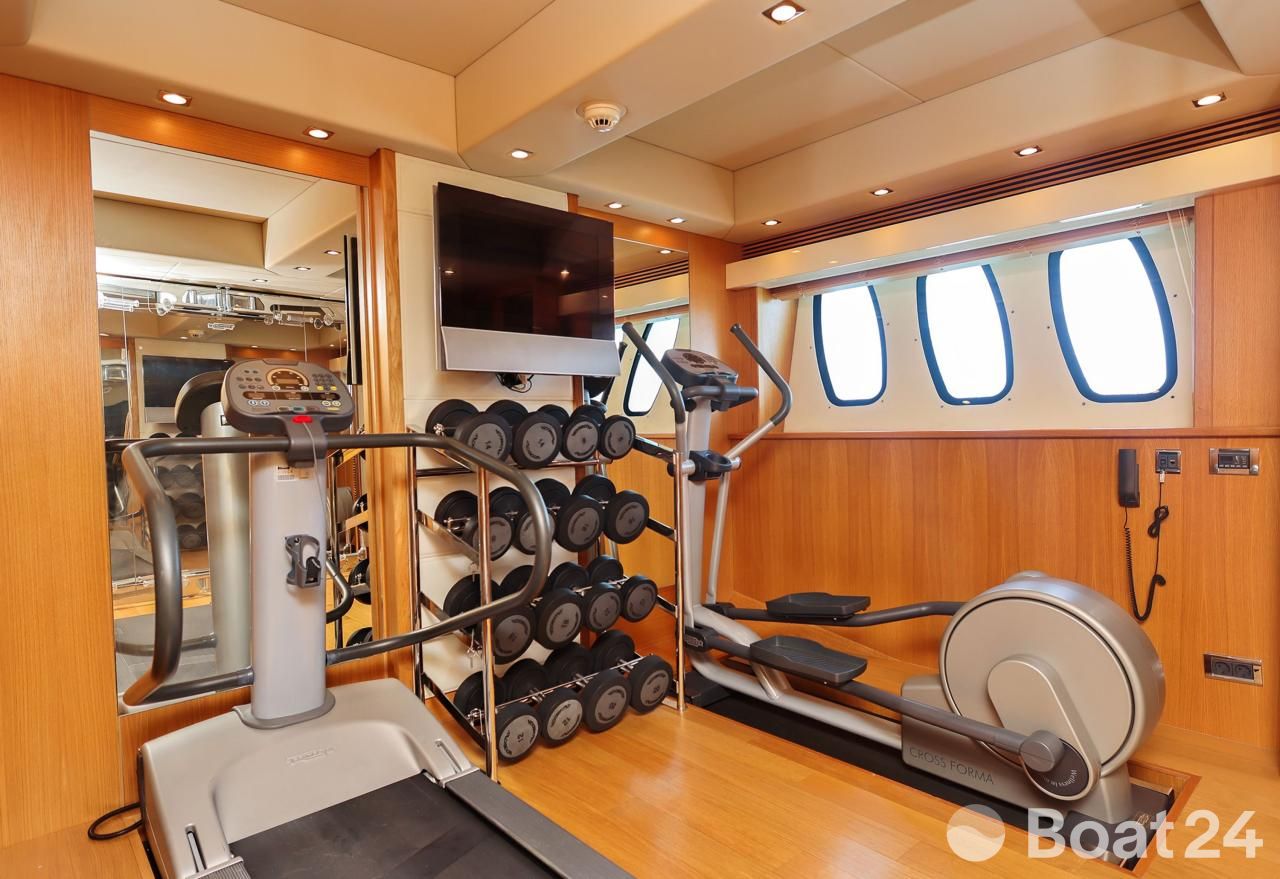

Exercise Room, Below Deck Forward Starboard

The Gym includes a Complement of exercise equipment

Crew Quarters Forward
With separate circulation for the crew, the crew area is accessed through staircase from the main deck. Feature a galley and crew mess as well as Accommodation for up to eight crew.

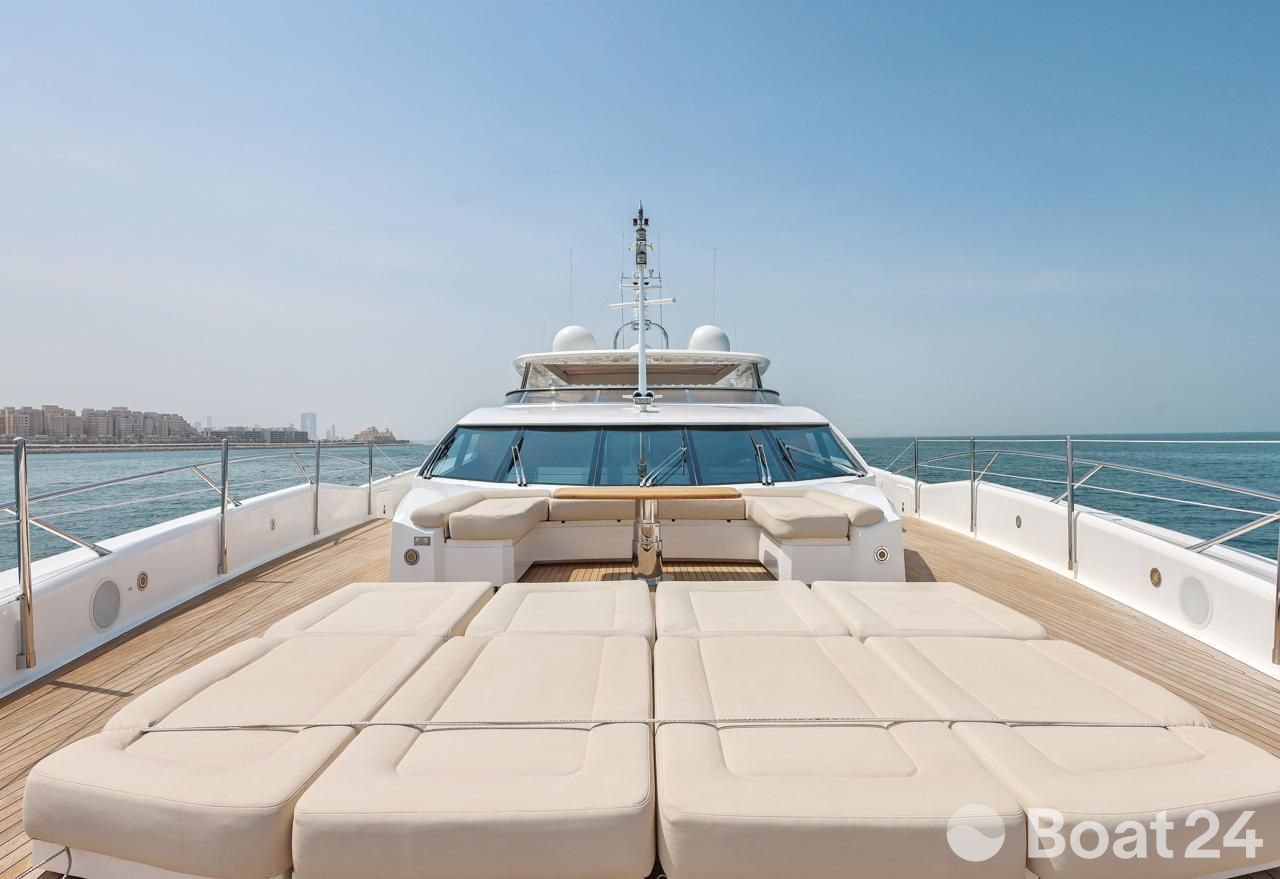

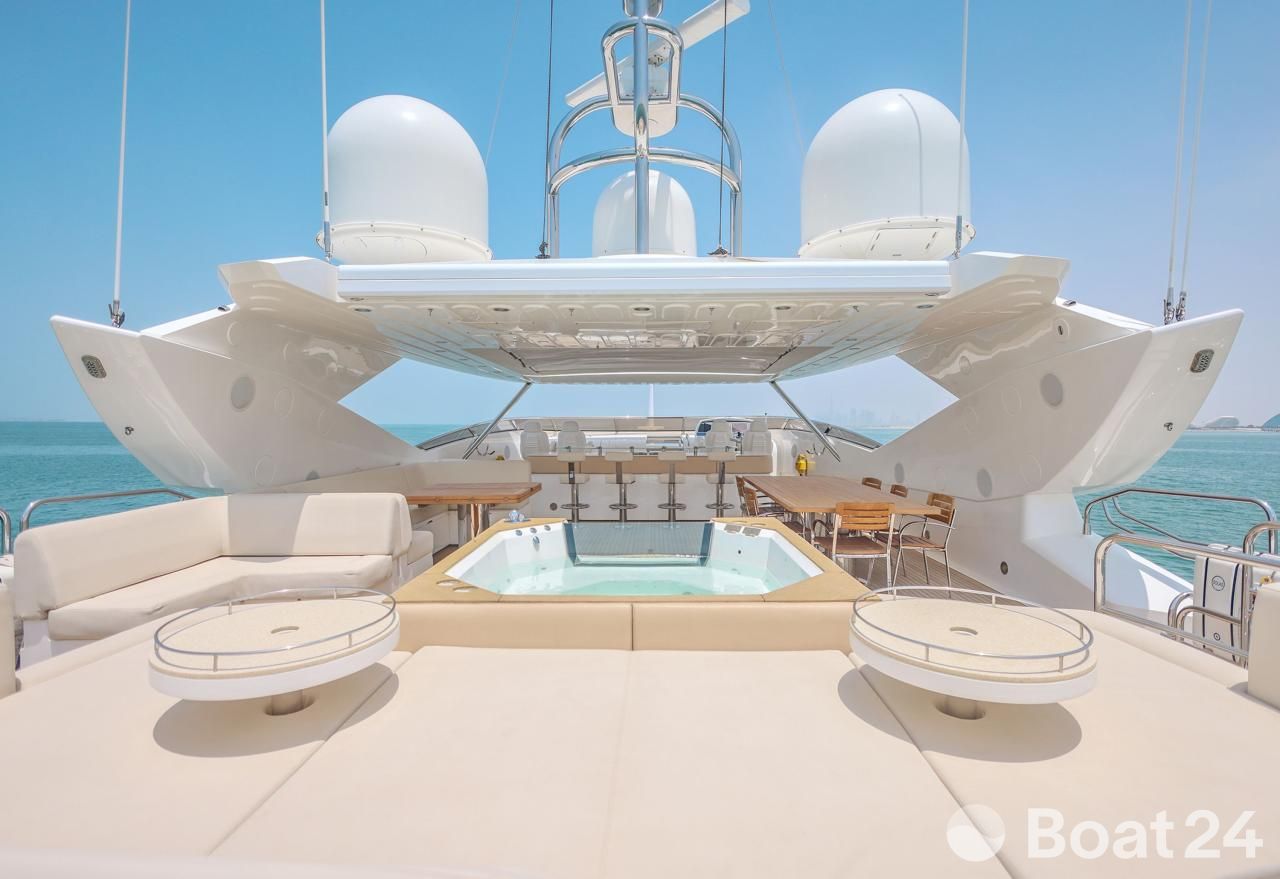

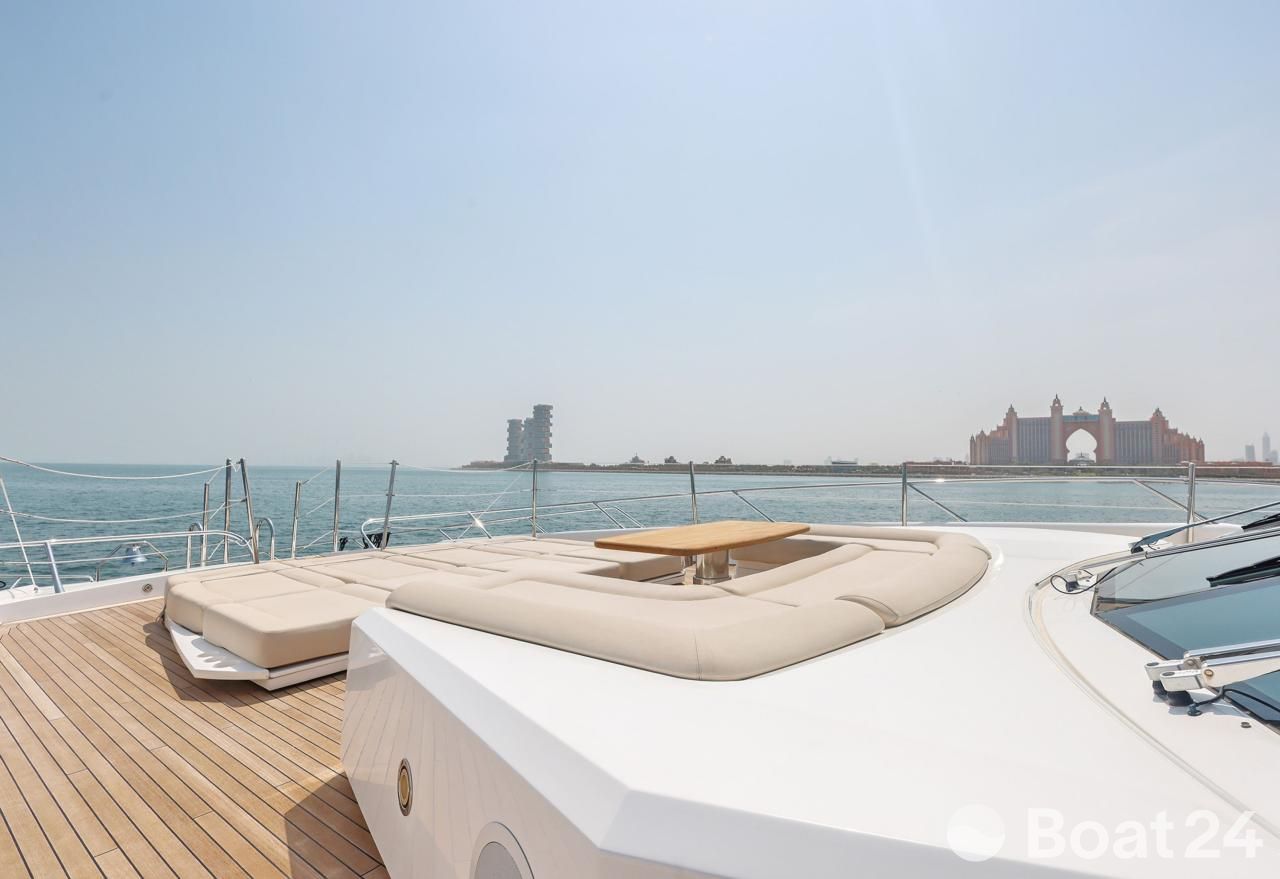

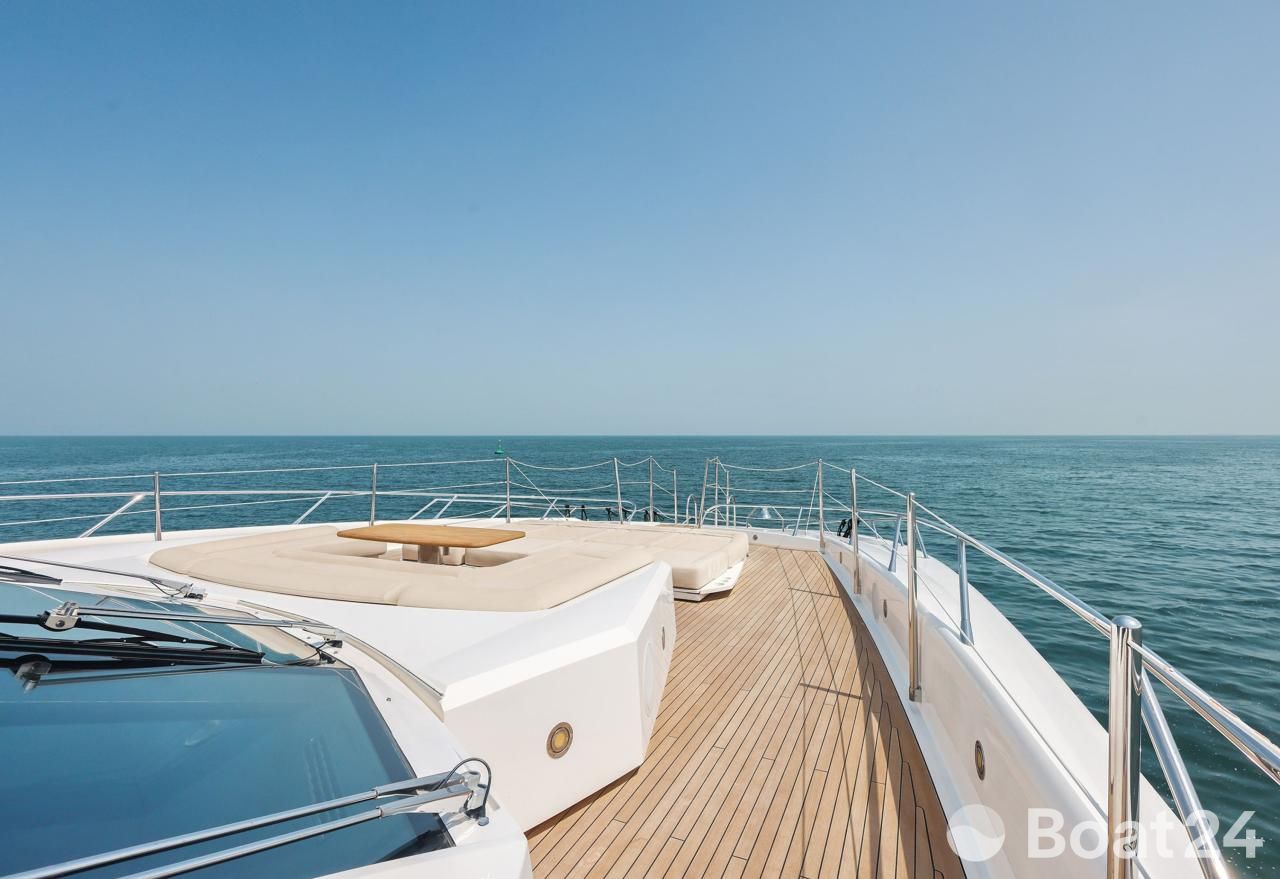

Sun Deck

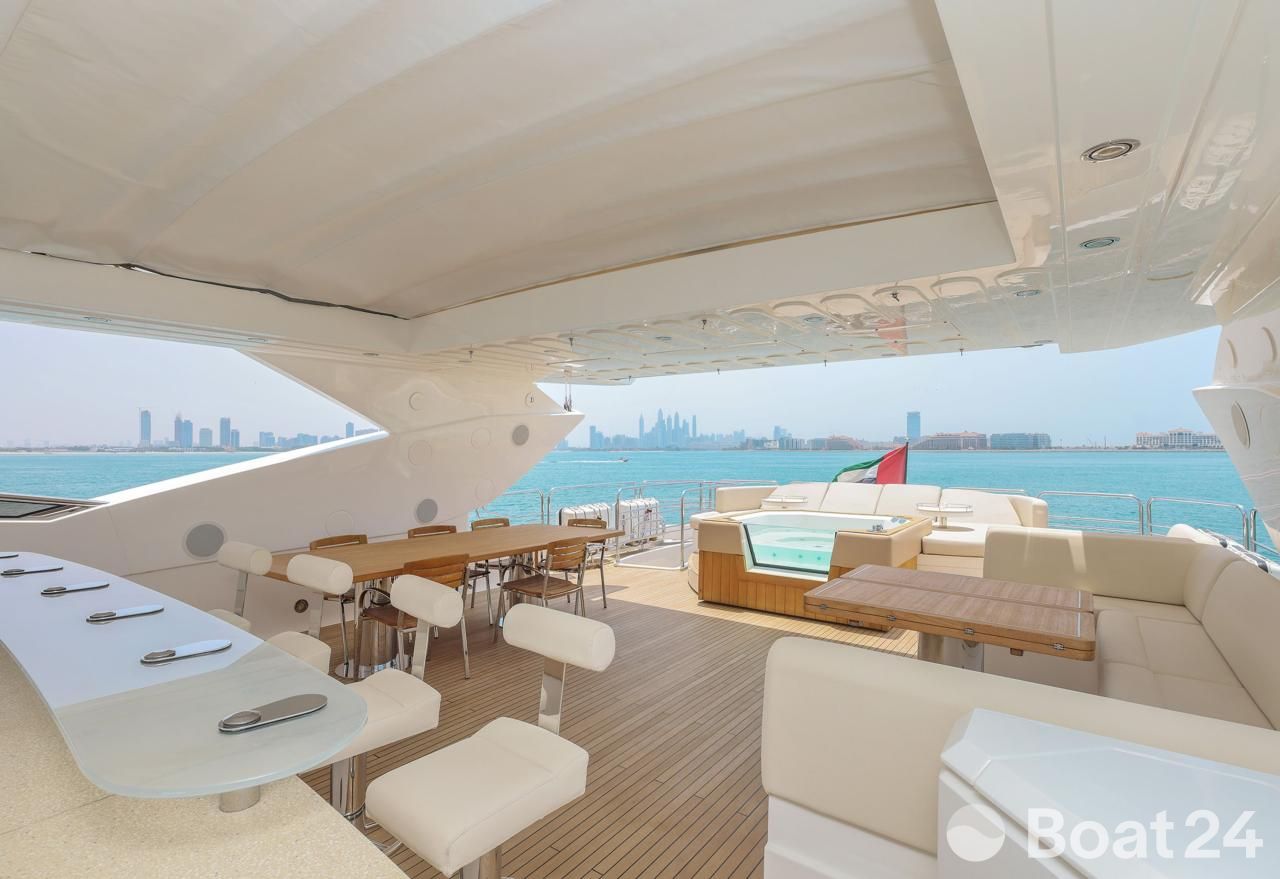

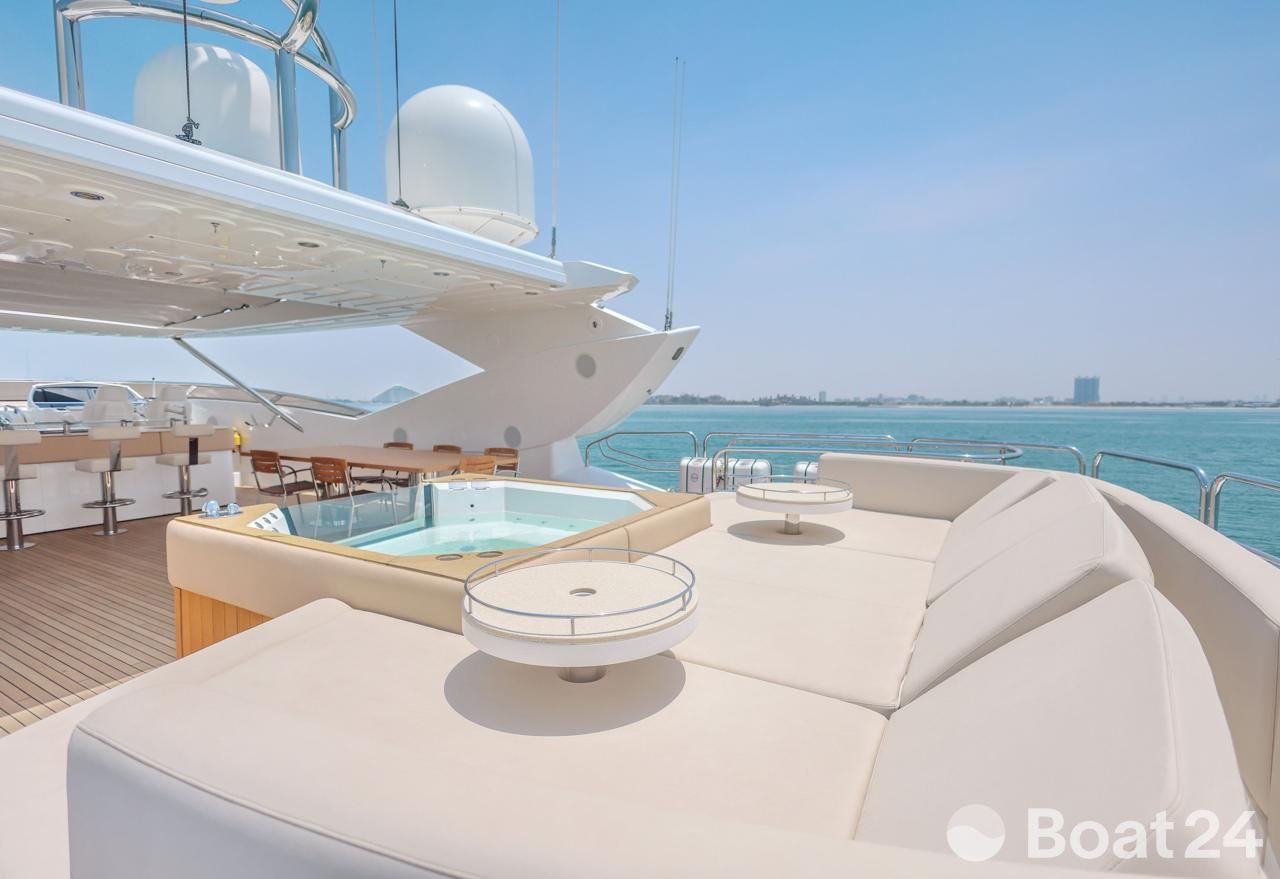

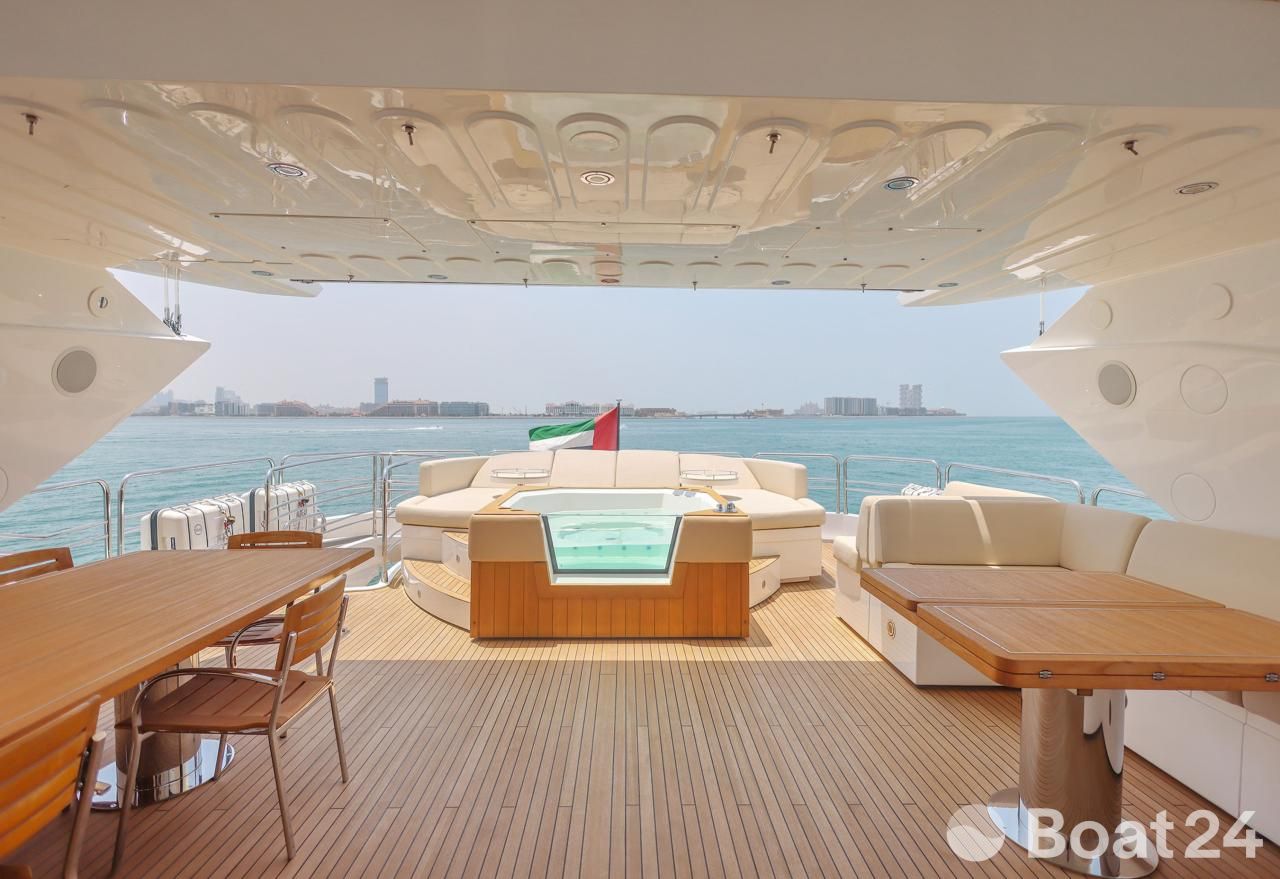

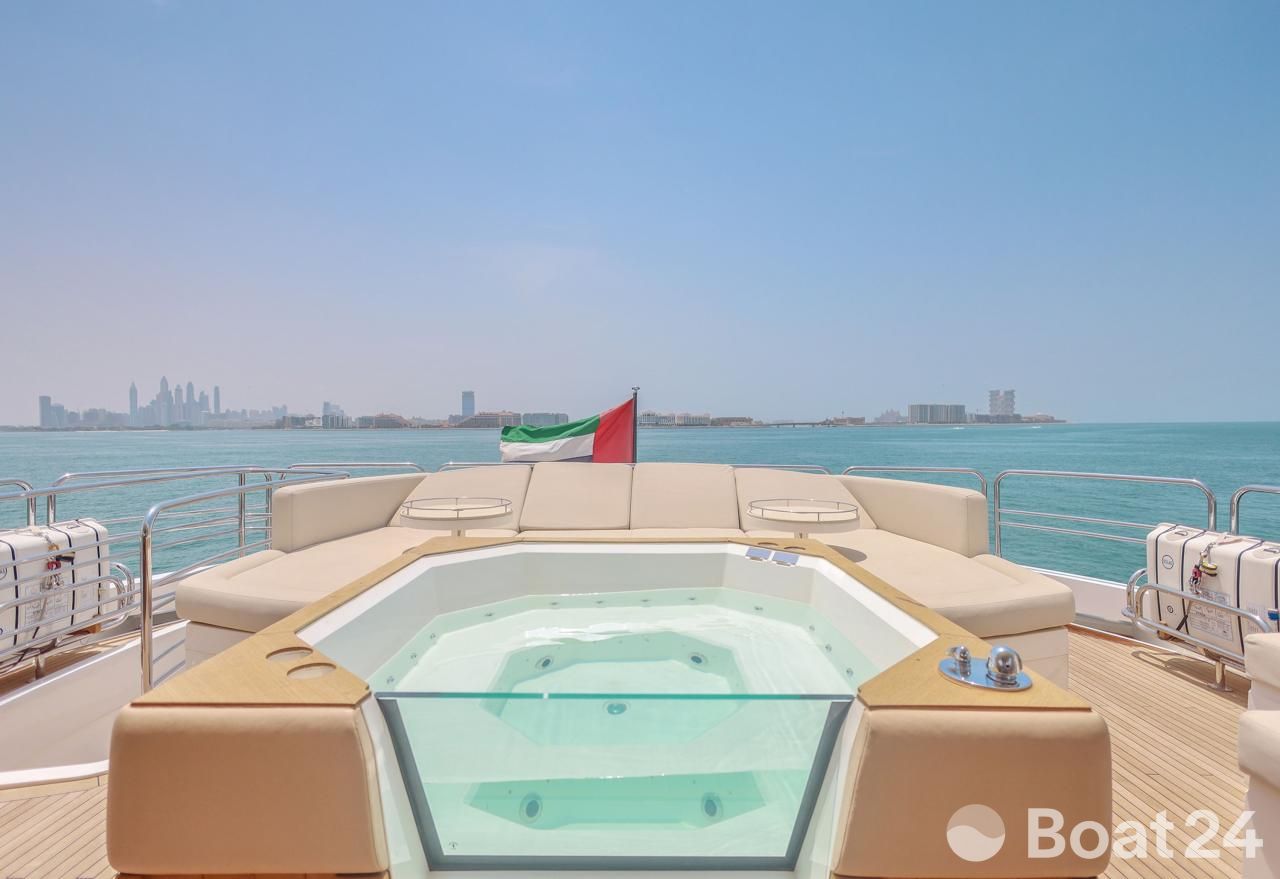

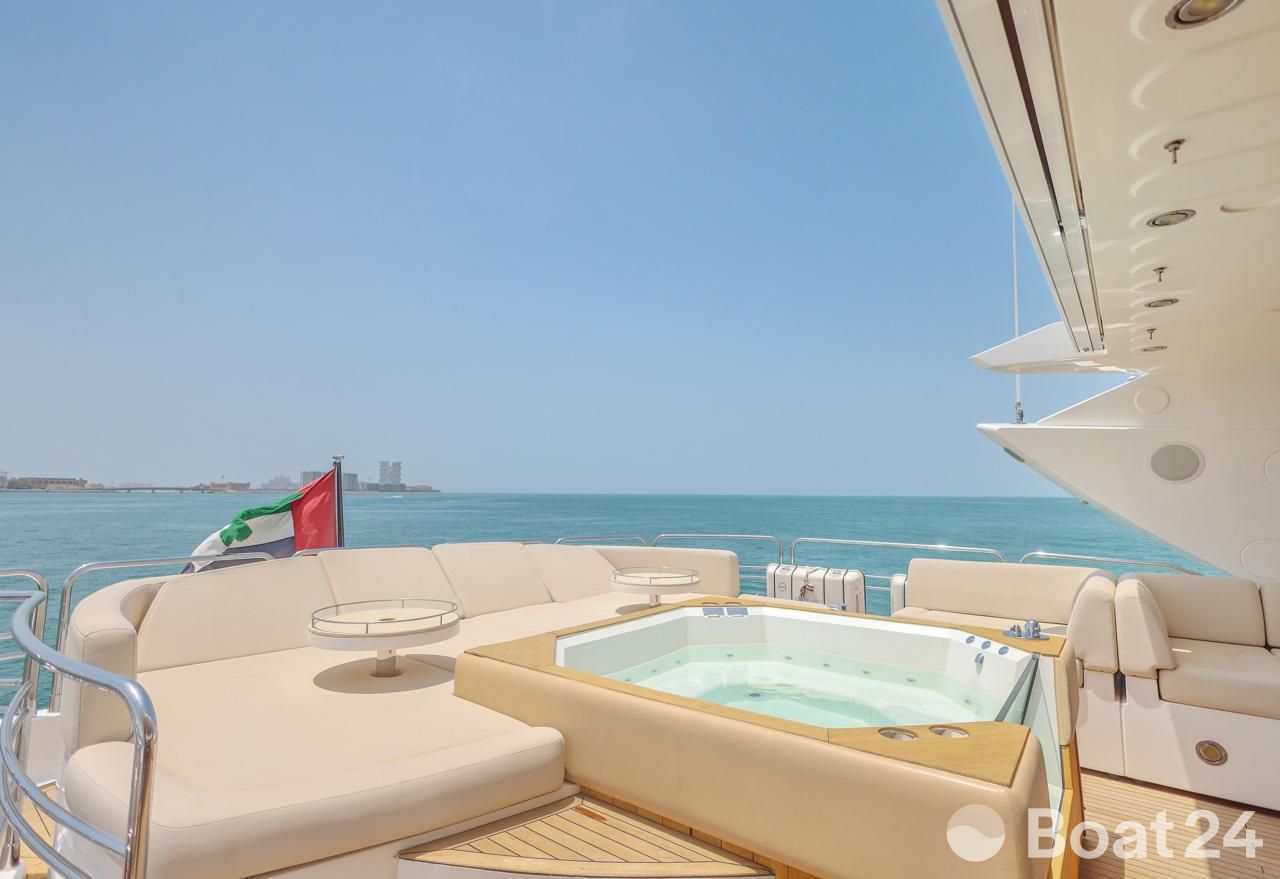

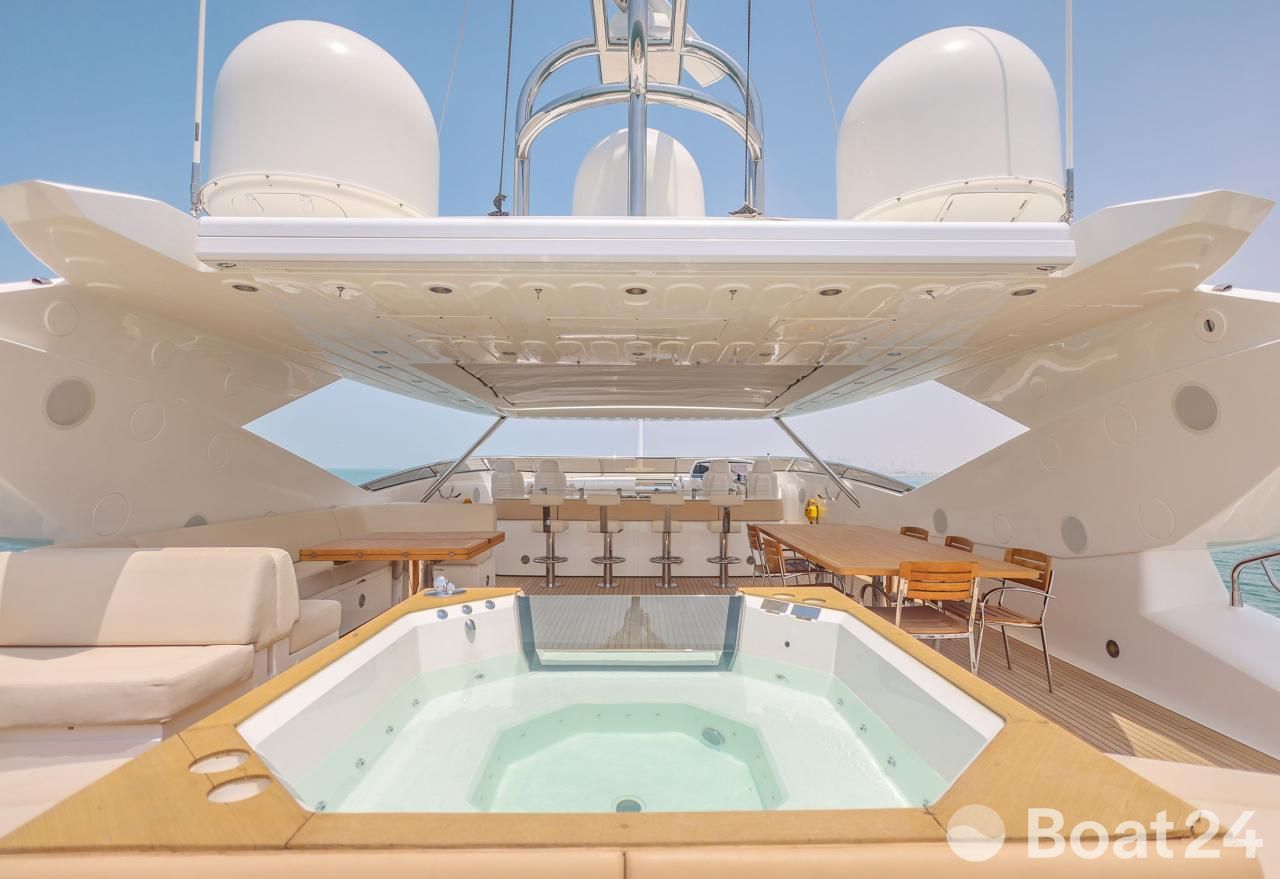

From aft with Jacuzzi surrounded by sunbathing beds, followed by dining table opposite to wet bar with sink & tap, fridges, Ice-crusher, grills and storage. Forward there is fly bridge navigation station and access to raised pilothouse.

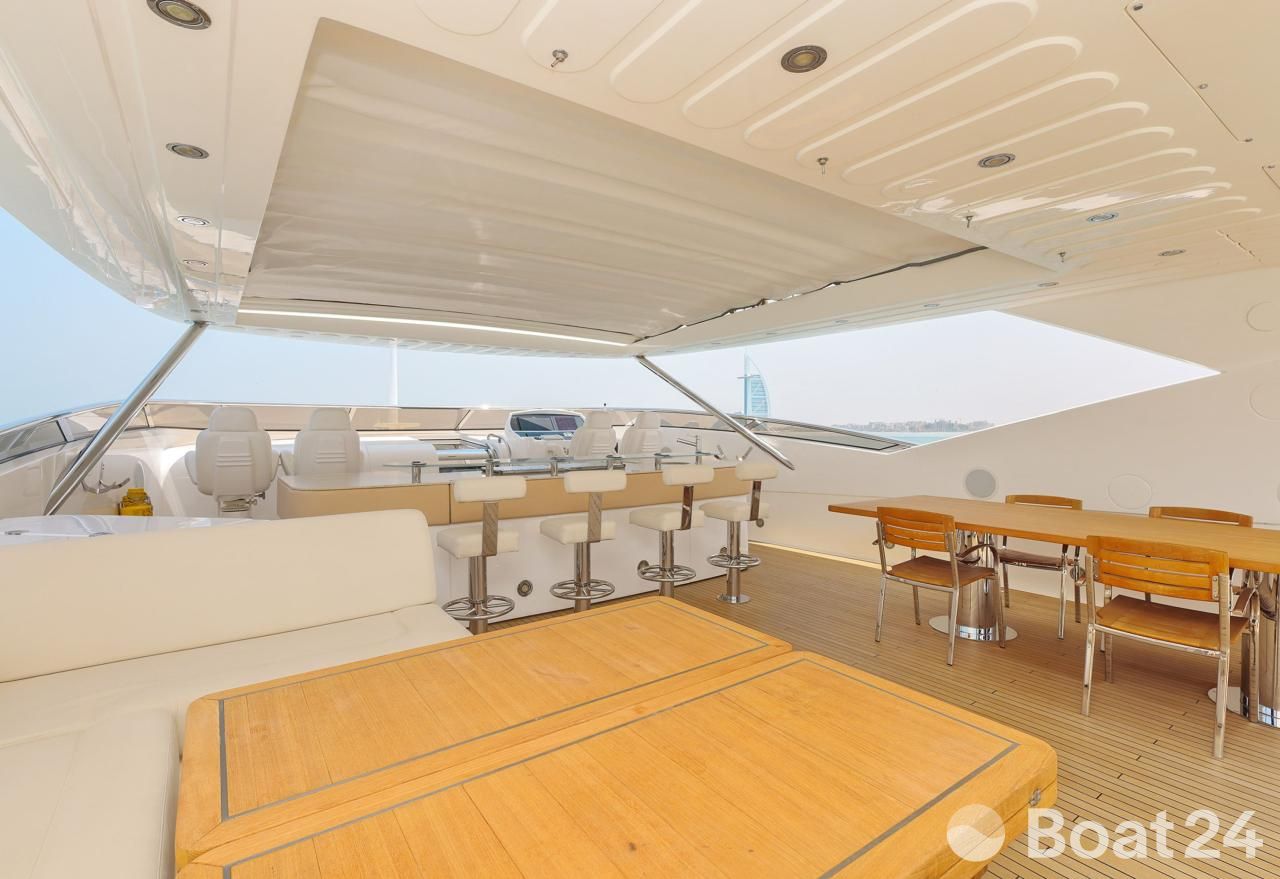

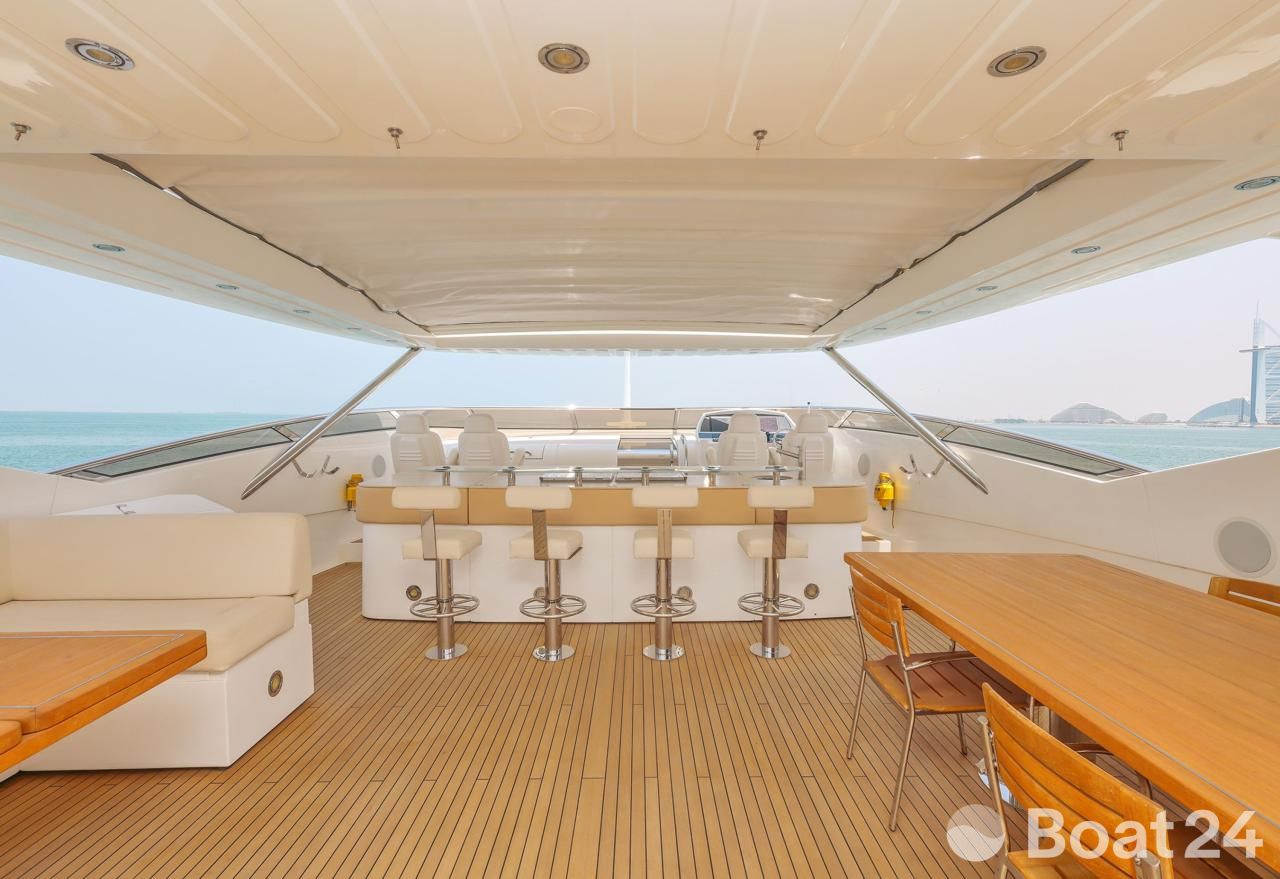

The Flybridge is also equipped with recessed Flat TV screen in the mast, mist sprinklers, hardtop retractable awning and aft mast retractable sun awning
Retractable sun awning flybridge hardtop in white

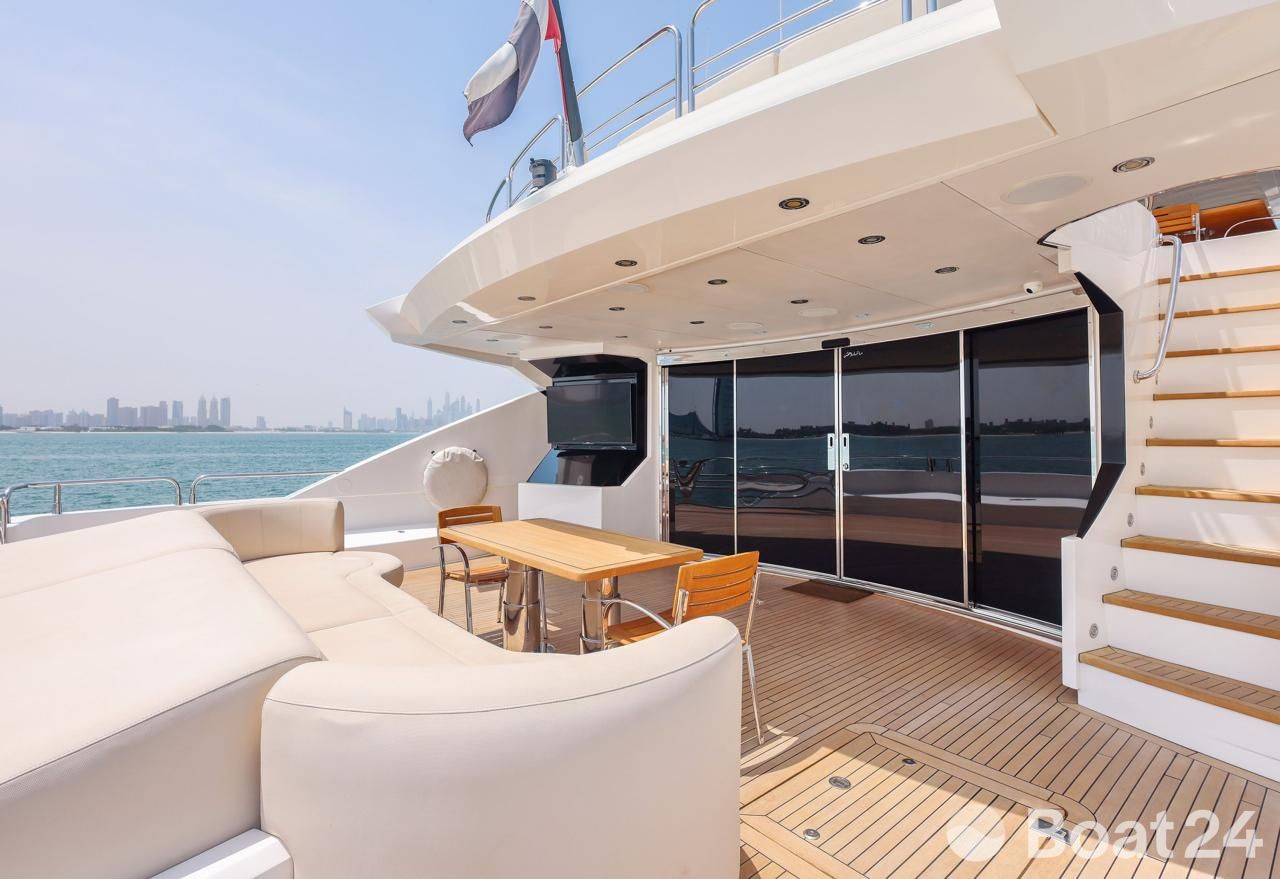

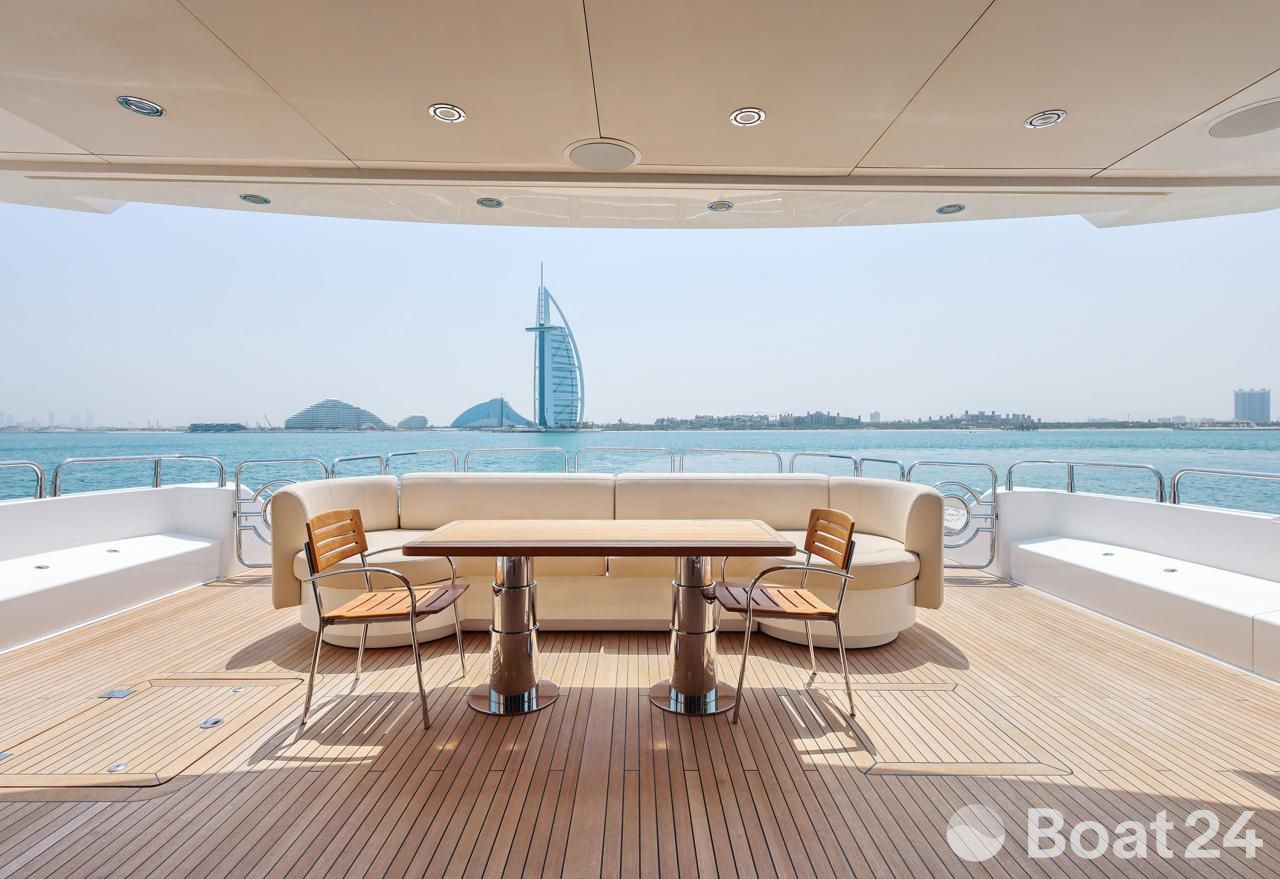

Aft Cockpit retractable sun awning
Fold-out wing station port side of flybridge

MAIN MACHINERY

MAIN ENGINES – Twin MTU 12V 4000 M93L = 2 x 3460HP @ 2100 RPM

GEARBOXES – ZF Marine, ratio 3:286

DRIVES

Shaft / TEMET 25.140mm – Propeller / NIMBRAL 5 blades

Generator #1 – (starboard) KOHLER kW65

Generator #2 – (Port) KOHLER kW65

Generator #3 – (night) KOHLER kW30

Output ? Volts – 220/380V ? 3 Phases ? 50 Hz

Generator Fuel Consumption/Day 200L/Day

CAPACITIES

Fuel (including extra range tank) – 28,710 litres 7,585 US gallons

Day Tanks – 3,580 litres 947 US gallons

Dirty Fuel Tank – 155 litres 41 US gallons

Fresh Water Tanks – 4,950 litres 1,307 US gallons

Water makers – 300 litres/hour 79 US gallons/Hour

Lube oil – 290 litres 77 US gallons

Waste oil – 290 litres 77 US gallons

Bilge tank – 180 litres 48 US gallons

Black Water – 1,350 litres 357 US gallons

Grey Water – 350 litres 93 US gallons

ECONOMICAL – 12/13 knots, 350 L/H, 1300 NM @ 1200 RPM

CRUISING – 17 knots, 550 L/H, 853 NM @ 1800 RPM

TOP SPEED – 27 knots, 1200 L/H, 621 NM @ 2200 RPM

AIR CONDITIONING SYSTEM AND COMPRESSED AIR SYSTEM

Air Conditioning – MARINE AIR (4) Chilled Water System, BTU: 480.000

Fresh Air System – (2) 24.000 BTU (including Gym room)

Compressed air system – BAUER Junior II compressor & workshop compressor

ELECTRICITY

Shore Power ? Volts 220/380V ? 3 Phases ? 50 Hz

Converter – 380V

Shore Power Converter (2012)

ASEA converter AC90V ? 3

Main Engine Starting batteries – (8) 24V 105Amps

Service batteries – (6) GEL 24V 105Amp

Emergency batteries – (4) 24 Volts 105 Amp

Radio batteries – (2) 24 Volts 105 Amp

Emergency Lights batteries – (2) 24 Volts 105 Amp

Frequency Converter – (1) POTENTIA PP95-1-3/3 Modular

Battery Charger: NEWMAR

NEWMAR: Service (67A), Engine (67A), Emergency (44A), Radio (20A)

ELECTRICAL SYSTEM

AC Supply & Distribution

Connection to shore power through Glendenning 100amp 20mt master cable. Seamless transfer switching between generator and shore power

Marine Personal Assistant (M.P.A) control of tank levels, breaker status, alarm activation and monitoring, pump controls, bilge and fire information and all electrical load management

ANCILLARY MACHINERY

WATERMAKER #1 – HRO 180L/H 2 membranes Horizon Seafari H1212101480

WATERMAKER #2 – HRO 120L/H 1 membrane Horizon Seafari H1212000630

Stabilizers (at anchor) – ABT TRAC 370 fin Stabilizer 21.5 Sq ft (type 16X)

Bow Thruster – ABT TRAC 20 100HP (American Bow Thruster)

Stern Thruster – ABT TRAC 65HP

Steering System – HYDRIVE

Emergency Steering System – MANUAL, 220V/24V

Helm/Control (4) Stations – Wheelhouse ? Flybridge ? (2) Wings

Sewage System – HAMANN

Black Water System – TECMA 24V

Discharge/macerator pump – 220/380 V AC ? 140l/min

Fresh Water System – (2) GIANNESCHI

Water mist system – Flybridge hardtop ? 8 pcs

Steam shower Owner – Kohler 7kW

Grey Water System – TECMA wastewater pumping units

Discharge/macerator pump – 220/380V AC ? 160 l/min

Fuel Filtration – ALFA LAVAL MIB 303S-13 7500T/Min 760 lt/hr

Extraction & Ventilation System – 165m3/mn A60 approved marine fire dampers

HYDRAULIC SYSTEM

Power pack

(2) pumps 220V AC

Oil Tank Capacity up to 100 litres

Auxiliary Hydraulic Pack

Tender garage door

Tender garage door locking pins

Trim tabs

Hydraulic Tender Recovery Winch

Hydraulic Rise & Fall Bathing Platform

Bulwark

Balconies and locking cylinders

Master Stateroom Balconies and locking cylinders

Central Hydraulic System

American Bow Thruster bow & stern, Stabilizers

(2) Anchor winches

(2) warping capstans

(2) hydraulically driven seawater-cooling pumps.

PTO – Pump on port Generator, both Main engine, 2x 11kw AC pump A locally mounted manual hand pump, in the event of ships power loss, can also operate the System

COMMUNICATION

Communication System – Panasonic KX-T7730

Satcom(s) – Furuno 0560

VHF Fixed – SAILOR RT5022 VHF DSC

VHF Handheld – MIALANA SIMRAD GMDSS

VHF – SIMRAD RS87 DSC VHF (wheelhouse, flybridge helm, crew mess, emergency steering)

VHF – Sailor RT5022 repeater hand set at the fly helm

Loudhailer – Hailer horn connected to SIMRAD RS87

Telephone System Two shoreline – Phone and Fax connected to PABX

PABX telephone – B&O telephone Wheelhouse, Captain?s cabin, Main Saloon, Master Stateroom, Starboard twin guest cabin, Port twin guest cabin

Emergency Radio Beacon – SIMRAD EP50 EPIRB & SART SIMRAD SA50

Communication Equipment

(2) handheld VHF SIMRAD AX50 GMDSS

Thrane & Thrane V7 broadband

Fixed data points

Wireless Access Points

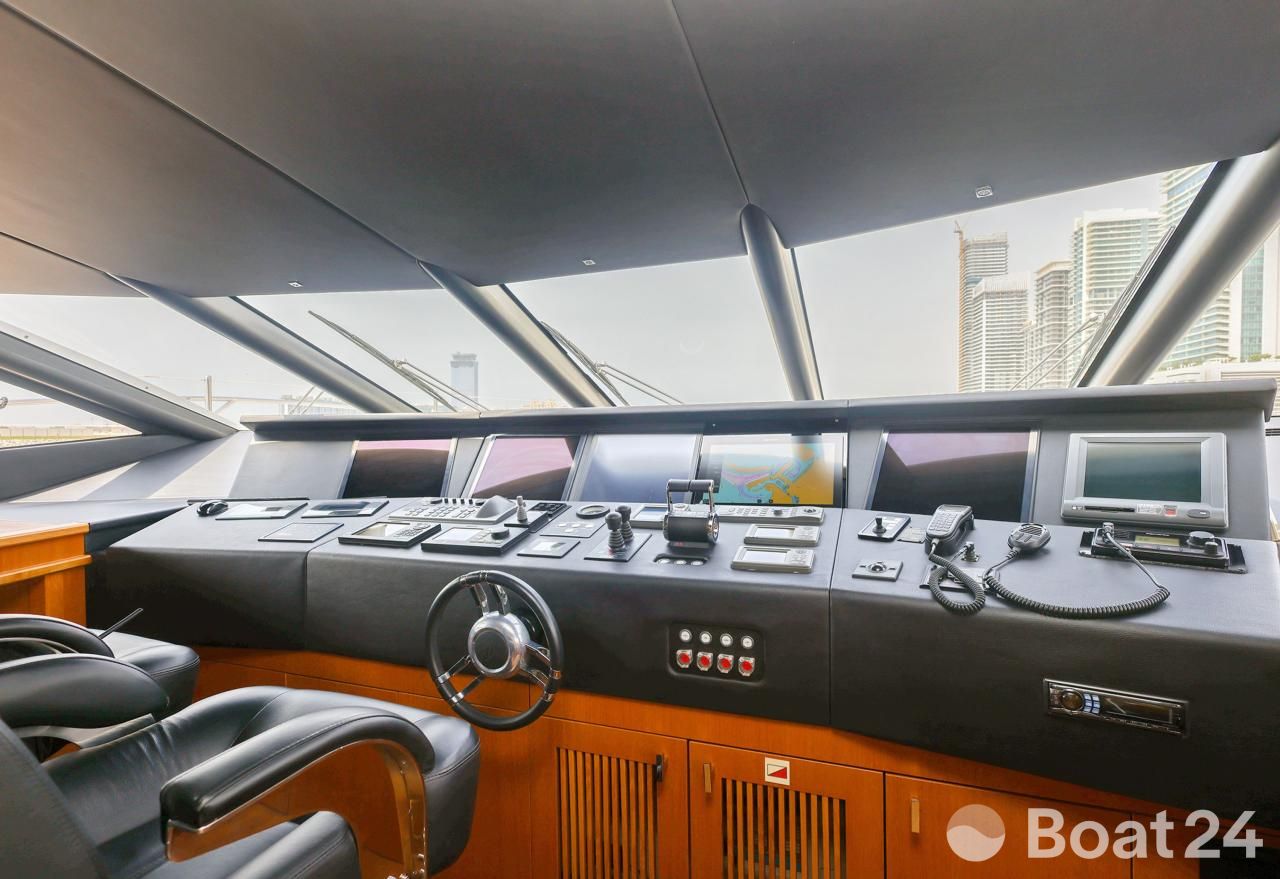

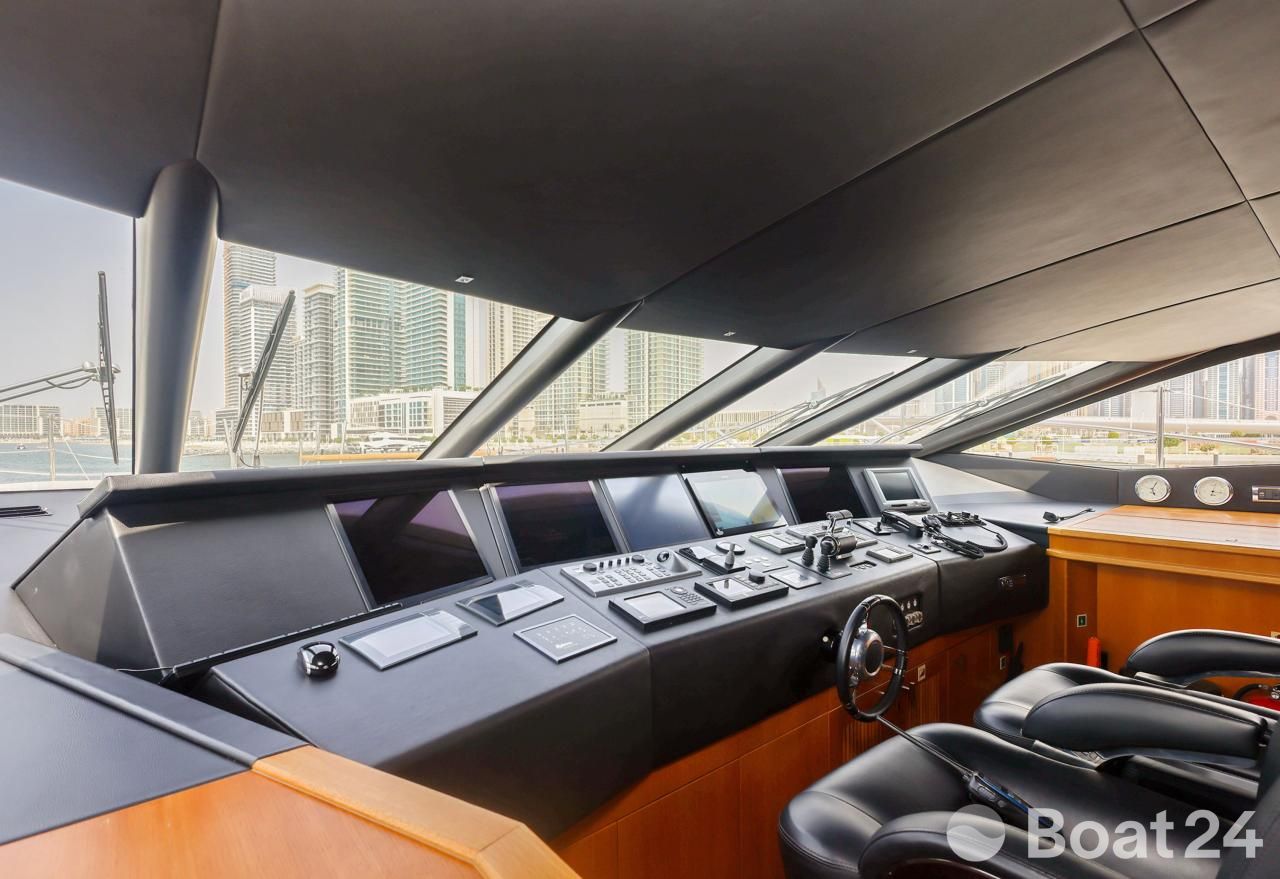

Navigation

Sat TV – (2) Seatel 4004

Radar – Furuno FAR2117BB 96 Nm

Radar – Furuno 1944BB 72 Nm

Autopilot – SIMRAD AP 50 Autopilot with RF45X Rudder ref

Gyrocompass – COMNAV DV2-FURUNO Satellite Compass

Compass – FURUNO SC50 Satellite compass interfaced to autopilot

Compass – Richie COMPASS

Displays wheelhouse – (3) 19?? Hatteland screen

Display Flybridge – (2) 15?? Hatteland screen

Navigation display – Radar integration for Transas, AIS class A transponder, ARPA Integration for Transas

Satellite System – Signal from Transas to be fed on Saloon TV only

Searchlight – THRANE & THRANE fleet 33 phone system

Windscreen Wipers – (1) 24V Sanshin remote searchlight

Air Horn – (5) pantograph with screen washers

Depth Sounders – Kahlenberg D2 with KA500 Air Compressor

GPS – Furuno MULTI STATION RD 30

Navigation Display – SIMRAD GN 33

Chart Software – Hatteland

GPS – Transas Navisailor chart plotting bridge & flybridge

NAVTEX FURUNO AIS

FURUNO NX700

Weather Fax – FURUNO FAI

Wind Indicator – INMARSAT C FURUNO N700B

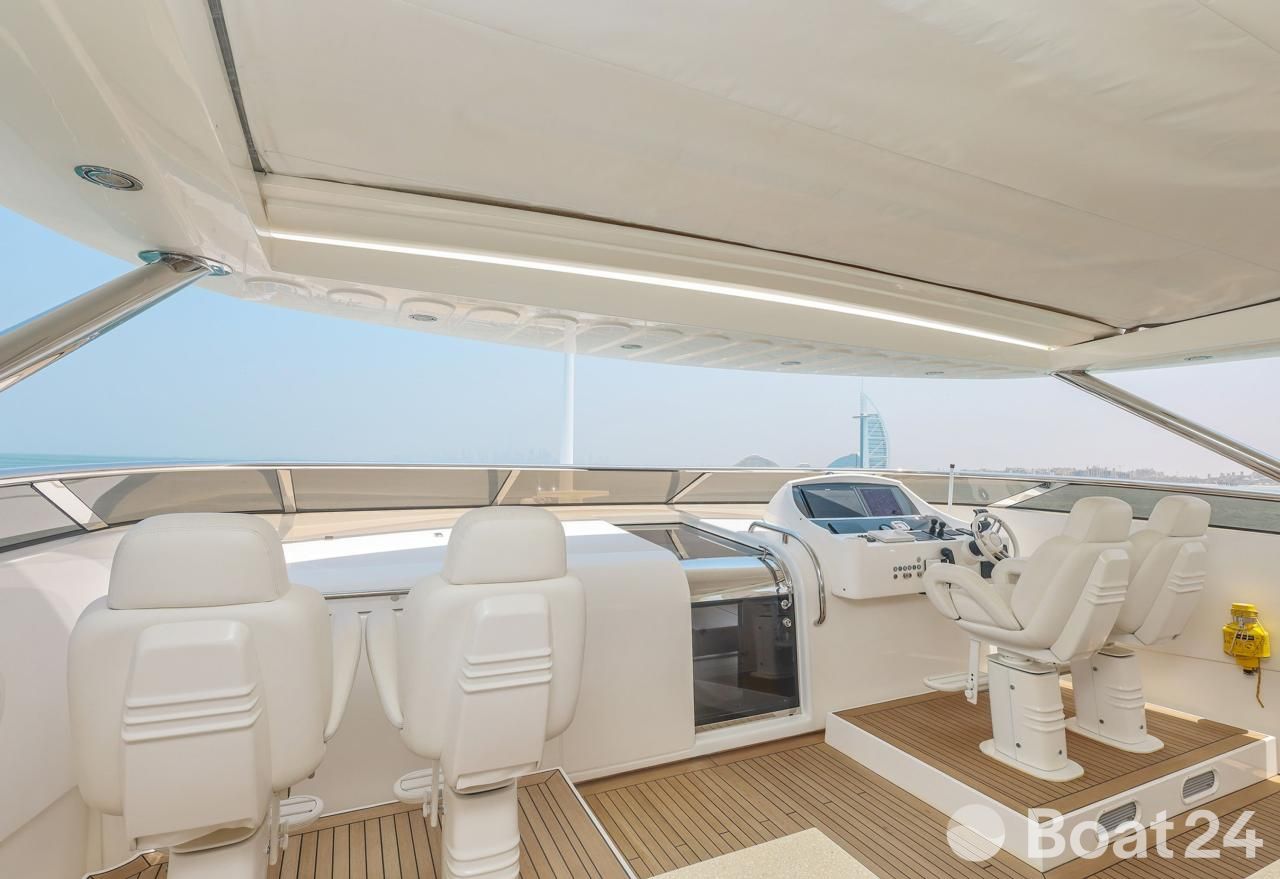

Flybridge Navigation

VHF – SIMRAD RS 87 GMDSS

VHF – SAILOR CU 500

Autopilot – Repeater SIMRAD AP50

Repeater – Bow & Stern Thruster Control TRAC, Hydrive Steering Control, Night Camera ? CCTV ? Monitor ? Flir

Search Light – SANSHIN HR 1012

AUDIO VISUAL EQUIPMENT

BANG and OLUFSEN system Audio Visual up throughout all accommodation

Main Deck Saloon

LG 4K OLED 65 Model 65E7V „fixed“

Bose 38 Lifestyle surround sound-system

Satellite decoder with local control

IPod docking station

Owner Cabin

50? LCD television

Bose 28 Lifestyle surround sound-system

Satellite decoder with local control

IPod docking station

Guests Double Cabins (2)

32? LCD television

Bose 321

Satellite decoder with local control

IPod docking station

Twin Cabin & Gym Room

26? LCD television

Bose 321

Satellite decoder with local control

IPod docking station

Sun Deck & Main Deck Aft Cockpit

(3) pairs Marine speaker (zoned from Main Saloon)

(3) Bose SA2 Amplifier

Bose PMC II remote

GALLEY AND LAUNDRY EQUIPMENT

Main Galley appliances

Oven – (2) MIELE M5681B 600mm

Micro-wave – MIELE 8261SS

Ceramic Cook top – GAGGENAU VC230

Induction Cook top – (2) GAGGENAU VI230

Extraction Hob – MIELE DA3190 (with upgraded metallic ducting)

Dishwasher – MIELE Professional G7856

Coffee Machine – MIELE CVA 5056 (Built-in)

Wine Cooler – MIELE KWL4154 UG-1

Main Deck Saloon appliances

Icemaker – RARITAN

Refrigerator – MIELE K621 Ui-1 (undercounter)

Stern Laundry appliances – MIELE Professional PW6065

Washing Machine – MIELE Professional PT7135

Condenser Dryer

Crew Mess appliances

Microwave – MIELE M8201-1

Refrigerator – MIELE K621 Ui-1

Dish washer – MIELE G1162 SCVI

Flybridge wet bar appliances

(2) Waeco CR110 Icemaker RARITAN Standard Griddles/grill

(2) GAGGENAU VR421

Crushed Ice Machine

AMENITIES

Jacuzzi – Flybridge (seats 4 people)

Gym – Starboard forward Cabin

Steam Shower – Owner bathroom

Bathrooms – All bathrooms equipped with under floor heating

DECK EQUIPMENT

Anchor Windlass System – (2) MUIR vertical VRC 8000 HYDRAULIC

Anchors – (2) Stainless Steel

Anchor Chain -190mt & 165mt, Diameter 17.5mm. Galvanised stud linked chain

Deck Capstans – (2) MUIR VC6000 HYDRAULIC

Stern Gangway – BESENZONI 6mt x 0.58mt extension, stainless-steel

Underwater lights – (10) under water lights Seavision SV19 (24vdc) 80mm

Additional set of Mooring

Bow Fairleads – (4) with integral rollers

LIST OF EXTRAS IN EXCESS OF SUNSEEKER PLATINUM OPTIONS

Air Conditioning air handler upgrade to quieter running AHDC units

Antifouling upgrade

Auto Troll option for Transmissions (Trolling for gearboxes)

Balcony – Forward Main Deck Stateroom Port side

(2) Balcony – Amidships Main Deck Saloon

Oak interior wood finish

Custom Refrigeration in Main Galley

Deck and Superstructure moulded in Ral White

Misting system for flybridge

Forward long-range fuel tank (5,150 litres)

Frequency converter ASEA

Fuel cleaning centrifuge Alfa Laval

Generator upgrade

GRP Flybridge Hardtop

Hydraulics – Stern thruster – Hydraulic (65hp)

Hydraulics – Trac Star Digital fin stabiliser system

MPA Tisseen Monitoring System 15″ touch screen display

MPA Monitoring – 15″ touch screen display in Crew Mess

MPA Monitoring – CCTV system with four cameras and dedicated display in crew mess connected to Tisseen system

MPA Monitoring – Generator Control and Monitoring System Upgrade Additional system feature allowing complete control and monitoring of generator parameters and alarms via MPA Touch Screen

MPA Monitoring – Handheld wireless tablet display

MTU 4000 series toolkit with stowage in engine room

Passerelle Upgrade – Stainless Steel Finish

Polished Stainless Steel Anchors

Retractable Electric Sun Awning for mid deck overhang

Retractable Electric Sun Awning for Flybridge Bar Area

Flir camera night watch

Security alarm system

Sewage Treatment Plant (interfaced to Tisseen System)

Sunshade – Additional stainless steel socket for sunshade listed below

Sunshade – Square type three-metre sunshade for use as parasol including one stainless steel socket

Teak Forepeak deck area and Flybridge Deck

Tender 6m Pascoe 6.0 m

Trailing for engines

Wind system to be connected to Central Navigation Display

Under Water Lights – 5 x Large Xenon (3 across the transom and 1 aft either side)

Automatic Main Saloon doors

ADDITIONAL EXTRAS

Cleats – Second pair of cleats at the bow

Tinted film to side windows and sliding doors

3rd generator (night generator-silent) with separate underwater exhaust

Bow fairleads with rollers in order to save rope wear

Tool stowage to have space

Compressor air system

Central display upgrade to 21″

Radar display upgrade to 21″

Chartplotter display upgrade to 21″

SAT TV with receiver on each TV

SAT Thrane & Thrane phone system doom to match SAT TV doom

Notice* All areas apart crew mess, crew and captain cabins to have B&O TV’s and surround

systems

Table and chairs on fly-bridge apart from main salon

Diver’s compressor

Yacht name written in stainless steel with LED diodes

MTU Blue Line controls in engine control room

(4) Deck chair on fly-bridge

Headroom: 7’2″ 2.1m

Hardtop: GRP with BESENZONI retractable canopy

Decks: Teak planking 12mn expect flybridge 9mn

SAFETY, SECURITY, AND FIREFIGHTING EQUIPMENT

Security

CCTV System (cameras): 1 Port side facing forward, facing aft, 1 Starboard side deck, forward-facing aft, 1 Main Deck Aft Cockpit, 2 Engine Room, 1 Tender Garage

Full 15?? M.P.A Master Touchscreen display in crew mess

Navigation parameter interface allowing NMEA data to be displayed on the M.P.A screens

Primary M.P.A Touchscreen (2) Electrical Main and Wheelhouse

Slave M.P.A Touchscreen (2) Engine Room and Crew Mess

Tisseen System: Monitoring all system on yacht (electric power, generators, water, outside light)

Safety and Life Saving equipment (LY2)

Life rafts – ZODIAC (10 men) XTREM 2010 10 MANSART

Life Buoys – 4kg & (2) 2.5kg

Life Jackets – 22 Complete with retro-reflective tape and lights adult

Life Jackets Child – 2

Water Sports Buoyancy aids – 6

Grab Bags – 2 SOLAS B

MOB smoke & light – 2

Buoyant Line – 2

Set of line throwers -1

Rocket flares – 6

Flare polybottle – 1

Axis 30 VHF emergency radio – 2

Axis 30 Spare testing battery – 2

(6kg Powder, 9ltr Foam, 5kg CO2, Spare powder Cartridge, Spare Powder, Sapre Foam Cartridge, Sapre Foam Compound)

Cat C Medical kit for 20 persons (positioned under the captain?s bunk)

Firefighting Equipment

Smoke detectors/ heat Sensors in all cabins

Fixed CO2 Fire System – (2) Electrical Room

High Fog System

Garage/Engine Room

Sprinkler System (2) Garage Sprinkler

Fire Extinguishers – (2) FM 200 Fire Engine Room/ Electrical Room; (2) Portable Co2 in the Engine Room; (1) Portable Co2 in the Electrical Room; (6) Powder in the engine Room; (1) Powder in the Electrical Room; Fire fighting: (2) Asbestos Suit

Smoke detector alarms in Machinery spaces with heat detector alarms

Fire & Bilge System

Primary Fire & Bilge pump

400 V A.C 5.5kW 50/60Hz 3 phase ? self priming ? Circa 45m3/hr – (Approx 12.5l/sec) @ 10m head in the engine room

Secondary Fire & Bilge pump

Coupled to a manual start diesel engine ? capacity of circa 40m3/hr (approx 11l/sec) @ 10m head in a dedicated pump room

Emergency Bilge pump

Engine driven ? self priming
