CARKEEK 47 GRAND PRIX CUSTOM (2014) – FOR SALE

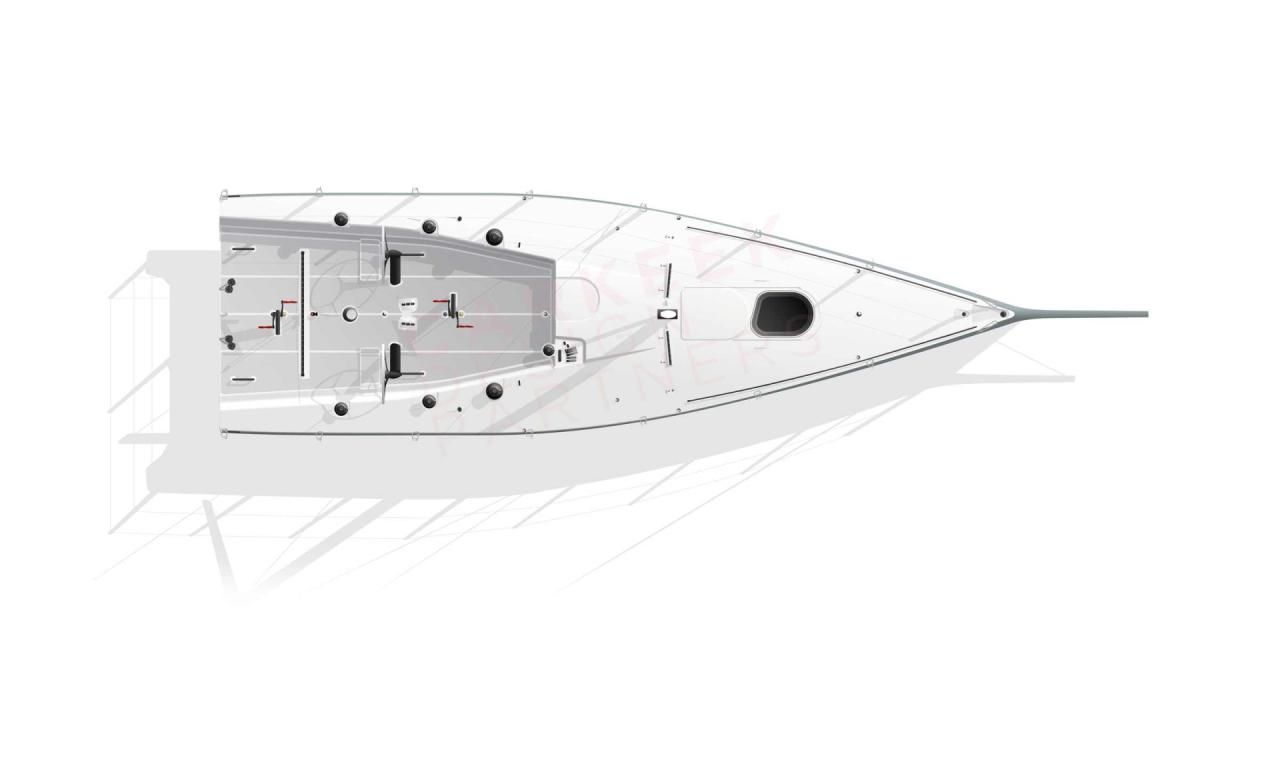

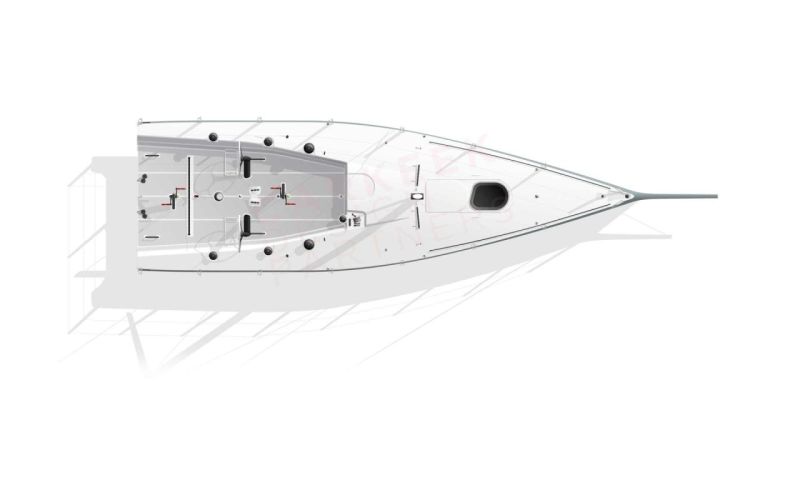

For those seeking peak performance in offshore racing, this exceptional Carkeek 47 is designed for yacht racing. Built in 2014 by Premier Composite Technologies, this yacht features a 5th Generation TP52 deck layout, cutting-edge electronics, and an optimized keel and bulb configuration for maximum speed and agility.

With full carbon construction, EC6 carbon rigging, and a comprehensive sail inventory, this yacht is fully equipped for serious racing campaigns. The boat has been meticulously maintained, with continuous upgrades and servicing through 2023–2025, including a new set of Quantum sails, new standing rigging, and a full engine service in 2024.

This is a rare opportunity to own a race-ready performance yacht that delivers top-tier results on the racecourse.

Owners comments:

This Carkeek 47 Grand Prix will be available to a new owner after the Aegean 600 in early July 2025. Originally set up for offshore racing by its first owner in Australia, this high-performance yacht has been fine-tuned for 600-mile offshore races such as the Sydney-Hobart, Middle Sea Race, and Aegean 600, achieving top results in both IRC and ORC handicap systems.

As the 2025 racing season begins in March, the boat will be competing in local inshore and offshore races in Greece. Interested buyers are welcome to arrange a viewing during this period.

For more details or to arrange a viewing, contact us today!

SPECIFICATIONS

General
Designer: Carkeek Design Partners
Builder: Premier Composite Technologies
ISO Structural: Cat A
ISAF OS: Cat 1
Keel, Fin & Bulb

CFD optimized fin and bulb configuration and shapes
Keel design and structural attachment is in accordance to ISO structural regulations to Class A with plan approval by Germanischer Lloyd
CNC milled high strength SG Iron Grade 80-55-06 (ASTM A536-84) cast keel
CNC milled lead T-bulb
S.S. bolts, backing plates, washers and nuts
Pocket for trim and weight adjustment
Steering System

Female moulded infused carbon fibre rudder blade with autoclaved carbon fibre stock.
Jefa Upper and Lower self-aligning rudder bearings
Twin Carbon wheels and quadrant
Coats & Paintworks

Interior finished in semi-gloss satin white paint
Awl Grip paint finish to top sides and deck gloss areas
Cockpit floor: SeaDek closed cell EVA non-skid
Below water-line Awlgrip epoxy professionally faired

Rigging
Rig (Southern Spars)
High modulus carbon mast – 2 pieces
Three sets swept aft carbon spreaders
Standard Modulus GP box style boom with outhaul purchase
EC6 carbon rigging
EC6 running backstays

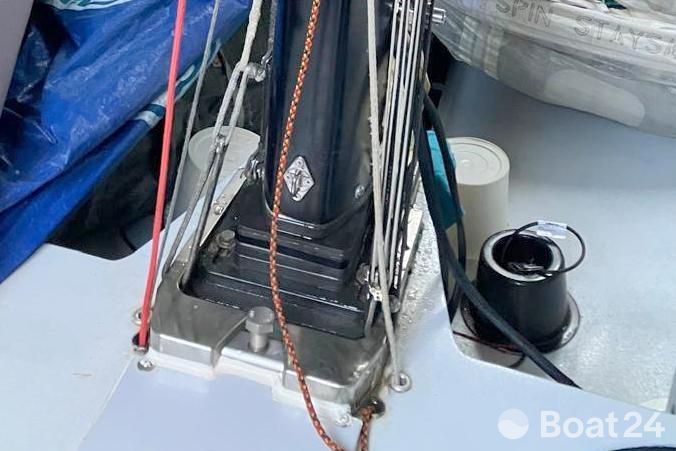

Adjustable internal hydraulic mast jack & Enerpac pumpStainless steel mast fittings
Carbon gas Vang
Main halyard lock- cassette x 1
Jib halyard lock- cassette x 1
Code 0 halyard lock – cassette x 1
Floating mainsail tack
Added on (screwed on built-in mast groove) Harken Mainsail track with 17 roller bearing tracks
Furlers

Facnor 4500 + Furler MH0
Karver 4.5 Furler FR0
Ronstan Furler J0

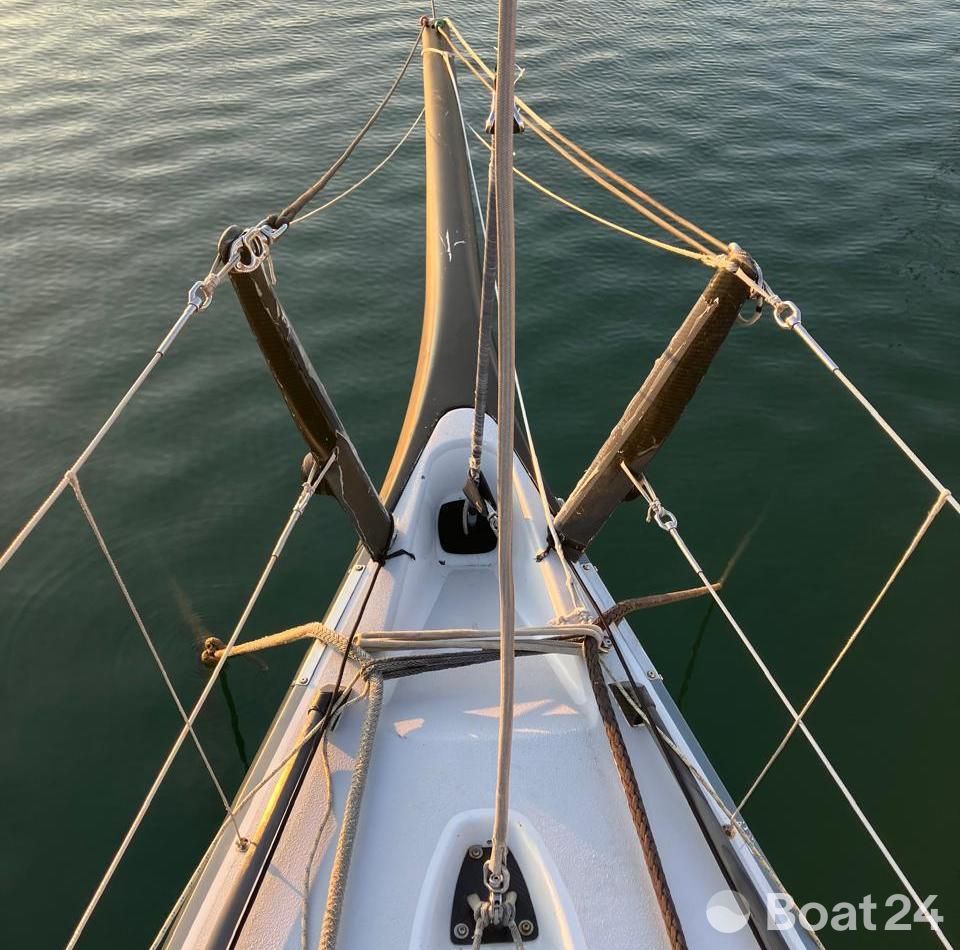

Bowsprit

Custom autoclaved removable carbon bowsprit
Removable stainless steel bobstay

Running Rigging

1 x Main halyard (lock)1 x Fractional jib halyard (lock)
1 x Fractional spinnaker/jib halyard
2 x Masthead spinnaker halyards (lock x 1)
1 x Staysail halyard
1 x Mainsheet
2 x Spinnaker sheets
2 x Code 0 sheets
2 x Jib sheets
2 x Spinnaker tack lines

Sails
New sails 2023-2025
2023
– Main Offshore – Quantum Carbon Velum 2023 – 2 Reefs
– J4 – Quantum Carbon Tri Radial 2023

2024
– A1.5 – Quantum 2024 (only used in 1 race)
– A2.5 – Quantum 2024 (only used in 2 races)
– Jib Staysail – Quantum Tri Radial 2024 (only used in 1 race)

2025
– A4 – Quantum 2025 (Brand new)
– J1.5 – Quantum Carbon Fusion M7 2025 (Brand new)

Other sails

J1 North 3DL 2014

J2 North 3DI 2014
A1.5 North 2014
A2 North 2014
Storm Jib North Dacron 2014
Storm Trysail North Dacron 2014
Offshore Main OneSails 4T 2014 – 2 Reef
Offshore Main OneSails 4T 2017 – 3 Reef
J1.5 OneSails 4T 2014
J2.5 OneSails 4T 2014
J4 OneSails 4T 2014
J1.5 OneSails 4T 2016
J2.5 OneSails 4T 2016
J4 OneSails 4T 2016
J1.5 OneSails 4T 2017 -18
J2.5 OneSails 4T 2017 – 18
J1.5 OneSails 4T 2021 NEW
J2.5 OneSails 4T 2021 NEW
A2B OneSails 2014
A2C OneSails 2016
A4 OneSails 2019
A5 OneSails 2015 Laminate
A6 OneSails 2019
MHO OneSails 2019
FR0 OneSails IFS 2020
Spin Staysail OneSails 2018
J0 OneSails 2019
J5 Storm Jib OneSails Radial 2016

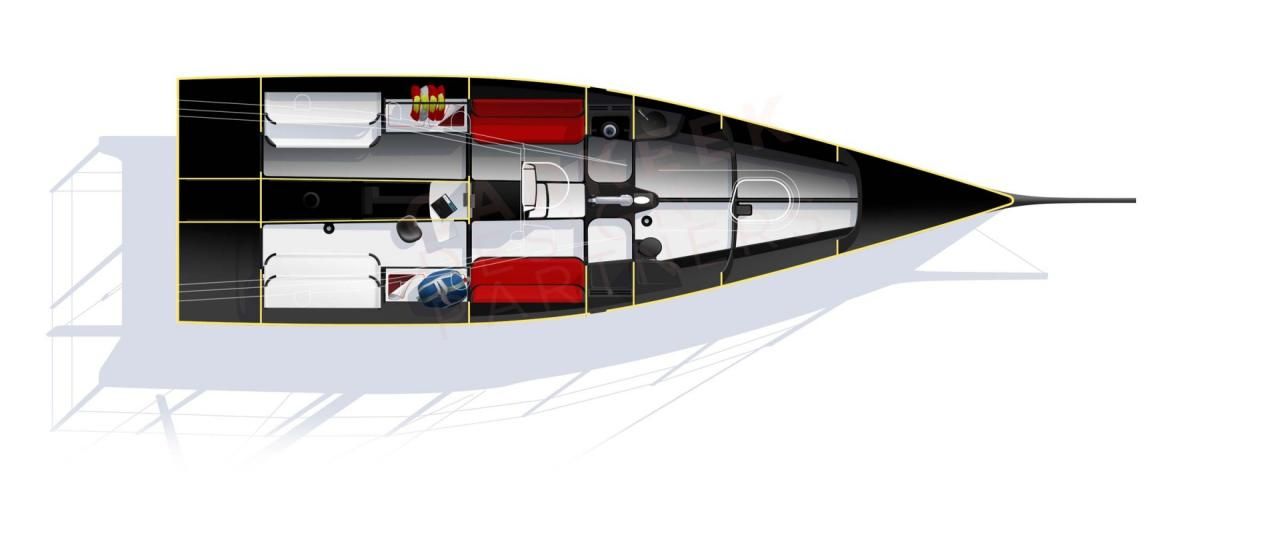

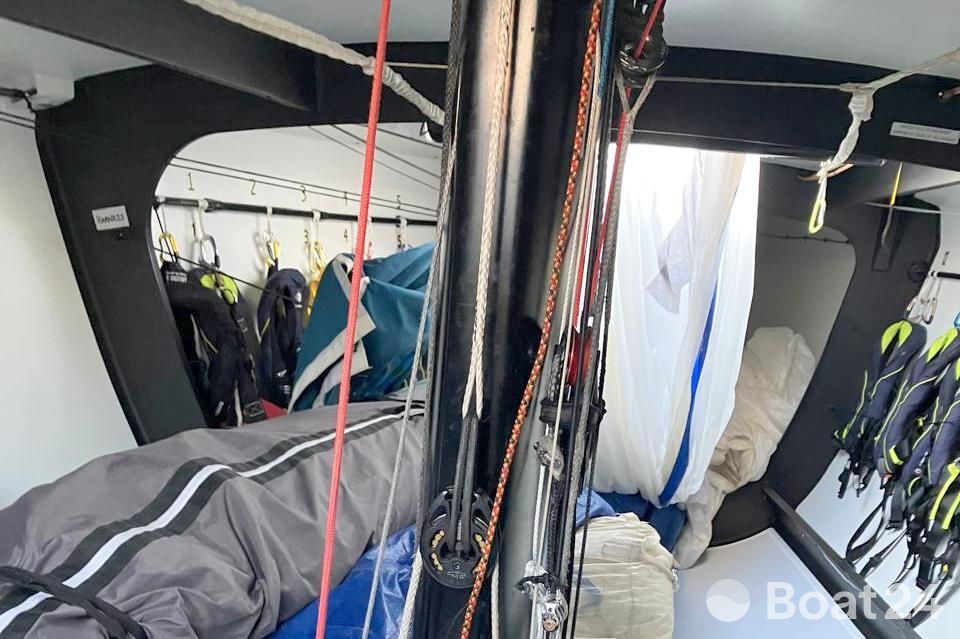

Accommodations
Nav station built from infused carbon/epoxy/foam
Head located forward next to the mast
8 x Carbon pipe cots with adjusting tackle
Engine box with integrated steps in infused carbon/epoxy/foam
Carbon sink in galley unit
Custom fabricated lightweight gimballed burner propane stove
Hatches & Portlights

Custom companionway sliding hatch and hatch garage

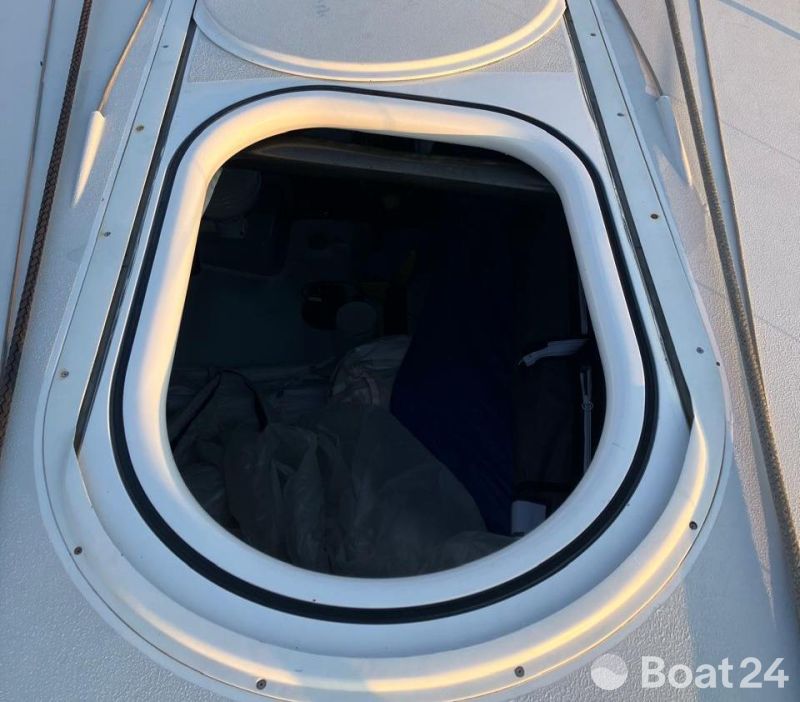

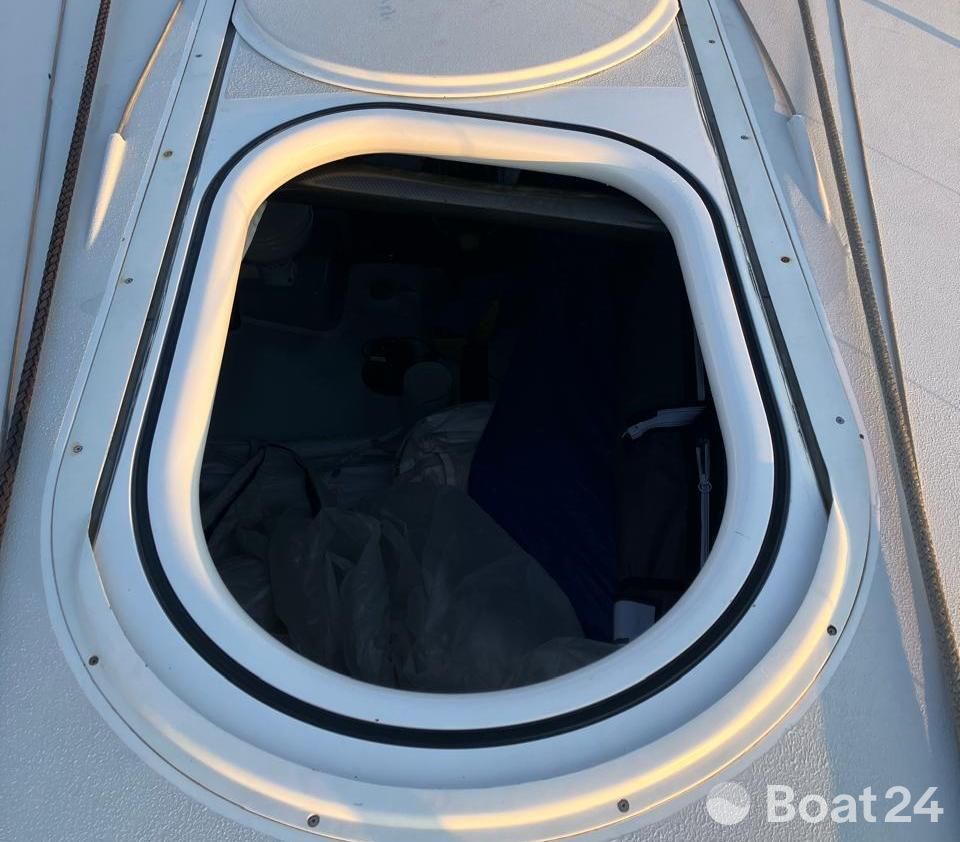

Custom composite sliding foredeck hatch
Custom composite Offshore hatch
2 x Portlights in cockpit

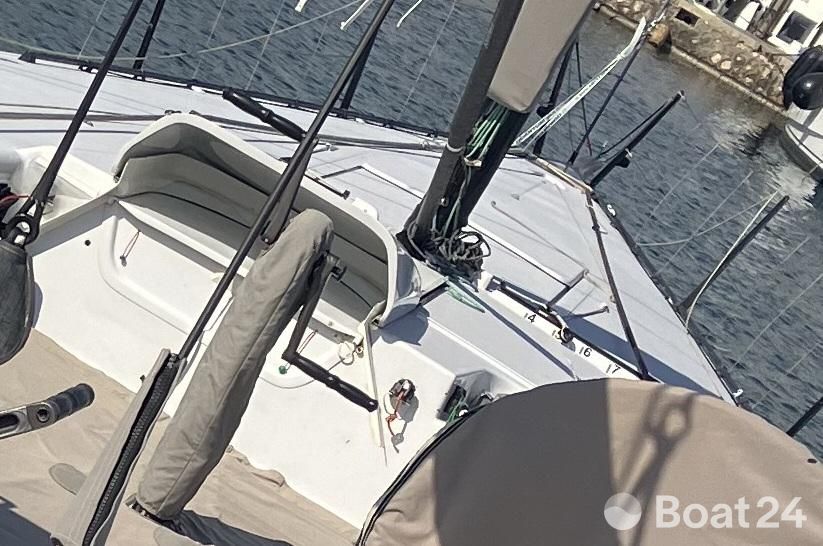

Deck and Cockpit
Winches

1 x HARKEN B65.3 STR UD primary portside (F84455800)
1 x HARKEN B65.3 STR UD LH primary starboard (F84455800L)
1 x HARKEN B65.3 STR UD mainsheet portside (F84455800)
1 x HARKEN B65.3 STR UD LH mainsheet starboard (F84455800L)
2 x HARKEN B65.2 STR UD runner winches
1 x HARKEN B50.2 STR FD utility winch
HARKEN MX Pedestrals

2 x Carbon fiber pedestal tube description as per drawing 42050 with flange (PEDxxxByyyCzz)
2 x Pedestal upper mechanics for MX dual chain pedestal (A94771000)
2 x Pedestal lower sprocket for MX2.8 dual chain pedestal Z13 Z35 (A94835600)
1 x Pedestal lower group 1dsc output Ø30 (A94899000)
1 x Pedestal lower assy 1 output Ø30 (A94899100)
2 x Chain 1/2“ 1/8“ Z=178 (S484040008)
2 x Chain 1/2“ 1/8“ Z=188 (S484030008)
4 x Aluminium pedestal double handle (F84265000)
Bevel Boxes & T Boxes

3 x Bevel Gear Box – LH (F86512300)
1 x Tbox 605 (F83950800)
1 x Gbox L&T 606 disconnect predisposition (F86512300)
1 x Xbox 606 direct disconnect predisposition (F86512200)
3 x Kit front disconnect gbox 606 (Ø25) fork RH (A96511300)
1 x Kit Lbox 606 (Ø25) fork RH 1 disconnect (A96514500)
1 x String Drop Hub (F86556200 )
Foot Buttons – String disconnects

5 x Ball remote button
Shafts

9.4m x Carbon drive shaft
Underdeck Systems

Vang purchase system led aft under-deck to control box
Outhaul led aft under-deck to control box
Main cunningham led aft under-deck to control box
Mainsheet led forward under-deck to main winches
Main traveler led forward under-deck to control box
Spinnaker tack line led aft under-deck to pit winch
Spinnaker sheets led forward under-deck to primary winches
Halyards led aft under-deck to pit winch
Other Hardware

11 x Spinlock rope clutches for Halyards, spinnaker sheets and fore guys
Custom organizer
Spinnaker string drop system

Engine
Fuel Cap.: 72.6 lt. in 2 x 36.3L (19.18 gall.) rigid plastic fuel tanks
40hp Volvo desel engine
Retractable Propulsion Solution (stainless steel shaft with aluminum & bronze propeller)
Spinlock flush throttle control
Carbon fiber exhaust to transom
Teleflex throttle control mechanism

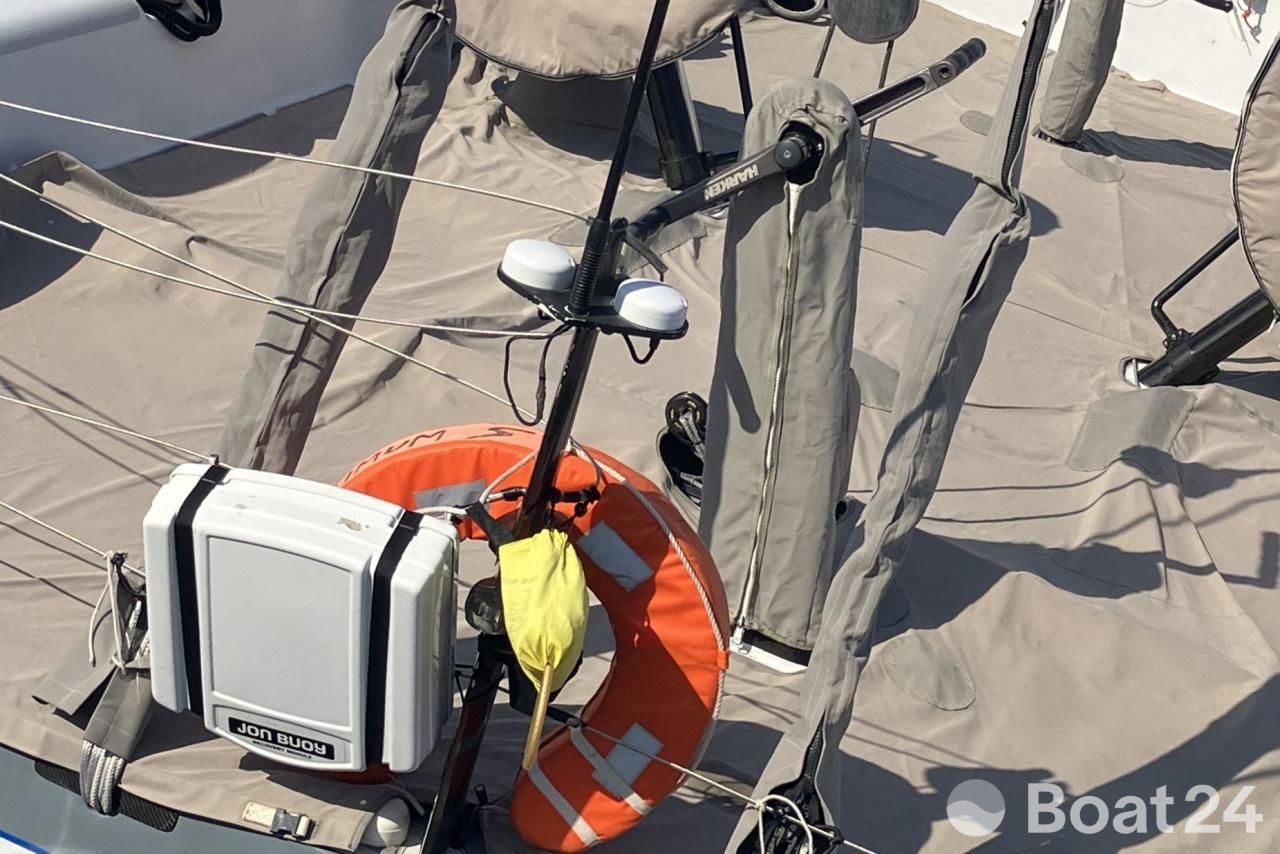

Safety
1 x Radar Reflector
1 x Whistle
12 x Life Jackets+ Crotch Straps
1 x Lifebouy with self-igniting light
4 x Red Parachute Flares
4 x Red Hand Flares
2 x Orange bouyant smoke flares
2 x CO2 2kg Fire Extingusher
1 x Manual Bilge Pumps
2 x Bucket + Lanyard 9lt
2 x Anchor with Rope or Chain
2 x Cockpit Knife
1 x Inflatable Liferaft Plastimo Transocean

Electronics and Navigational Gear
1 x H3000 CPU Hercules Performance (2024 / A&T Tested)
1 x H3000 CPU USB Cable
2 x H3000 GFD Pack
4 x H3000 20/20 HV Display Pack
1 x B&G Ploter
1 x SIMRAD MX610 Navigation System / GPS
1 x NAIS – 400
1 x Garmin Display
1 x B&G 10/10HV Display
1 x H3000 Depth Sensor (Flanged)
2 x AirMar High-Performance Speed/Temprature Sensor ST950 (installed 2024)
1 x A&T Vertical Masthead unit 500 series (installed 2022)
1 x Halcyon 2000
1 x Diverse Mast Cable: Wind, windex light, LMR 240, connectors, braid
1 x Heliflex Stubby VHF Antenna 20M
3 x Fastnet Cable 10m (replaced 2024)
1 x 2-Core Screened (3M)
1 x 6-Core Wind Cable (9M)
1 x Terminator
2 x A&T Junction Box (installed 2024)
5 x Junction Box (7 Terminal)
1 x H3000 Instrument Handbook
1 x Custom Loadpin
1 x Diverse Hybrid Loadcell Amplifier
1 x Garmin 19X HVS
1 x C-MAP Plotter Chart
1 x LevelOne Wireless Access Point with Antenna and PoE injector
1 x ICOM VHF

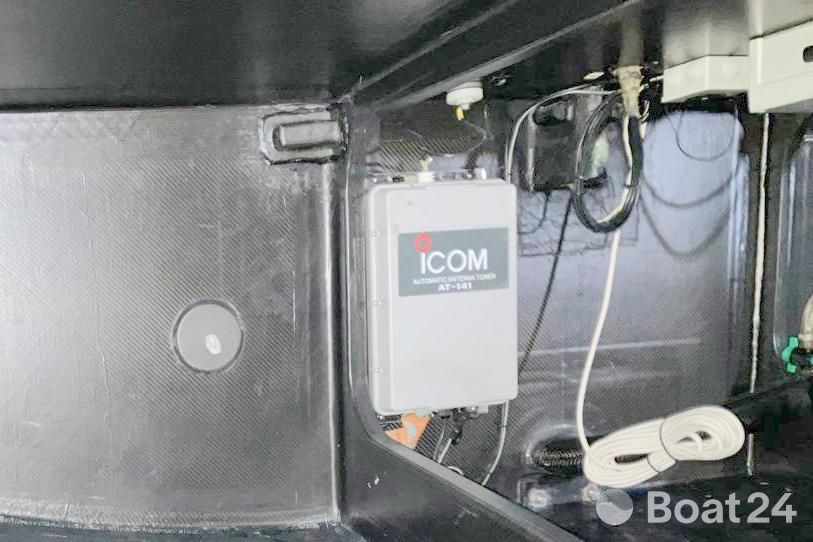

1 x iCom HF
1 x Battery Status Display
1 x MOXA Nport 5410 Serial to Ethernet
1 x Laptop Panasonic Touchbook Upgrade RAM & SSD Disk
1 x Teltonica RUTX50 IoT 5G Router Teltonica RUTX50
1 x Linksys PoE Switch
1 x CEL – FL 3G, 4G Repeater
1 X Satellite Kit Sailor 150 Fleet Broadband Thrane & Thrane
Additional

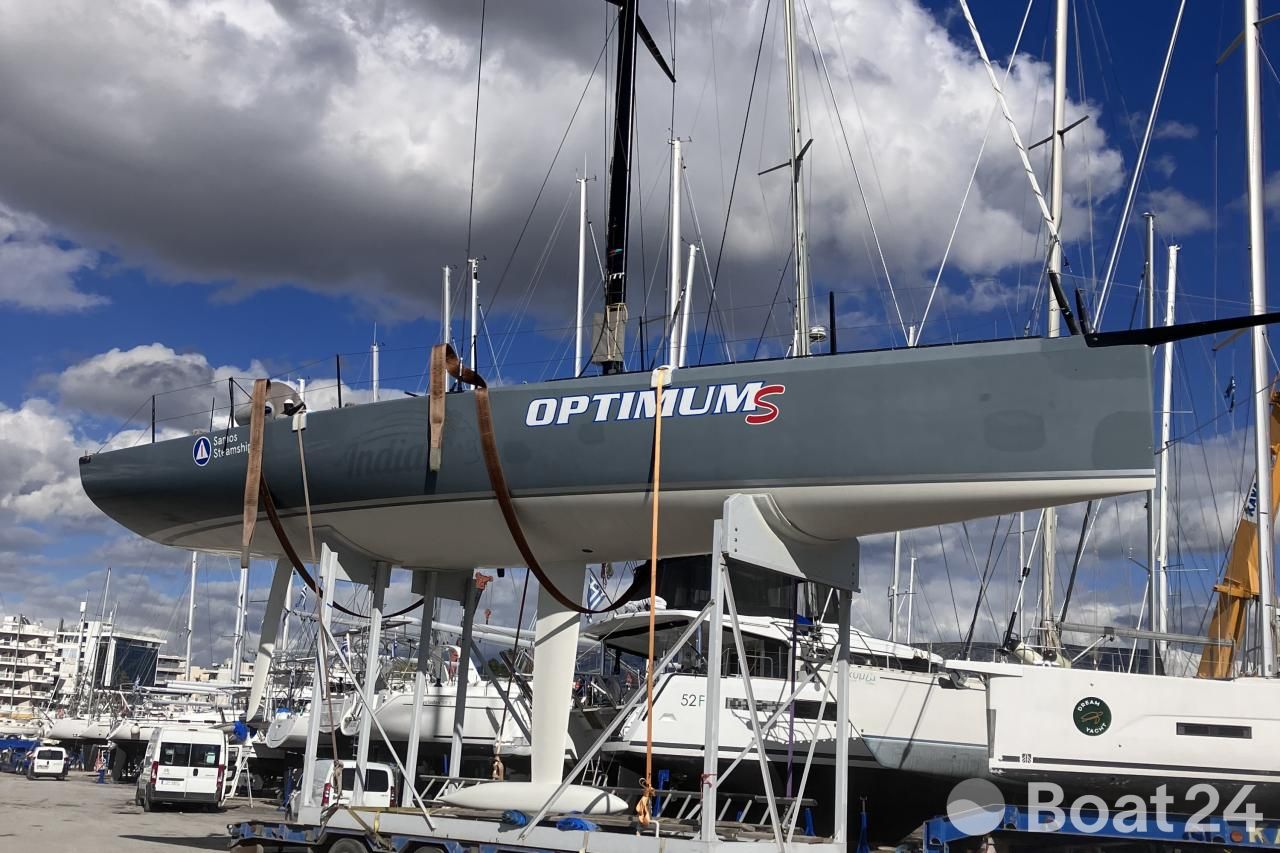

Shipping cradle with two positions
Katadyn 30 l/hr lightweight removable watermaker
Removable dock battery charger
Transom spare / emergency rudder (for Cat 1)
Lifting keel dryfit
