Details

Yacht description

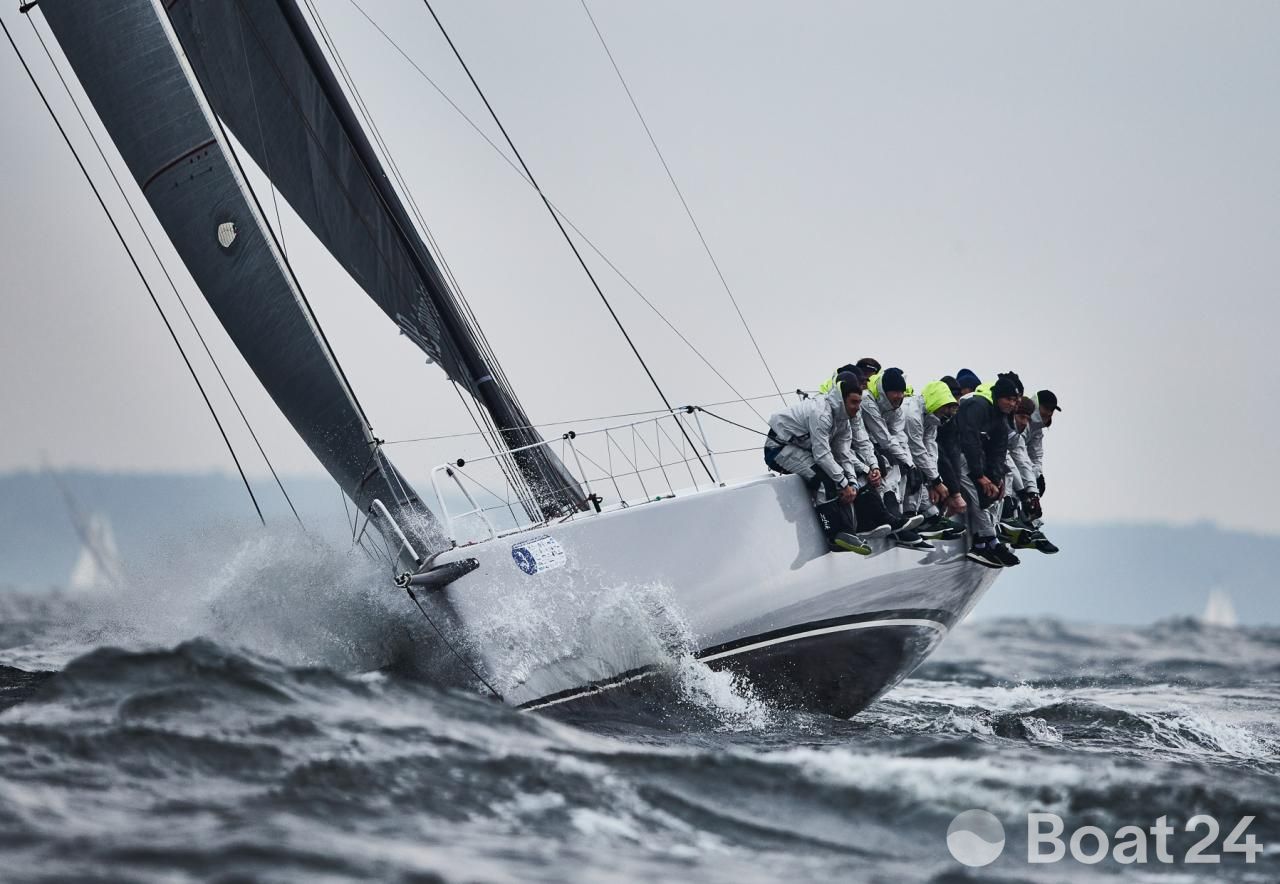

The Hakes Marine, HH42 is a fully optimised high performance grand prix racing yacht. It has been designed by Judel/Vrolijk & co to be the fastest in its size around the race track, and to be competitively raced and win on IRC as well as ORC.

HH42 is a no compromise racing yacht designed with flexibility for both inshore and strong offshore performance.

Boat underwent further IRC/ORC optimisation during the 2019-2022 seasons. It is fully upgraded- and ready for a new campaign. Very well prepared for offshore- watertight, strong structure, halyard locks, doubled systems. Yacht Is very well maintained and regularly serviced by a full time Boat Captain. When not sailed, boat is stored on a cradle under full cover.

General information:
Designer: Judel/Vrolijk & Co – Engineering Gmbh
Builder: Hakes Marine- Hudson Yacht & Marine, China
Length: 11,6m; Beam: 4,2m; Depth: 3,2m
Crew during racing 9-11
CIN: CN-HYMH42021313
Engine: Yanmar 21.63kW
Engine number: E17972

Palmares 2023
-Palmavela ORC1 Winner
-IRC European Championship IRC1 3place.

———————————————————

General
Construction:

Engineered to ISAF Category 1 Safety regulations / ISO Regulations
Hull is very well and strong build, and can resist very tough conditions
Structural Engineers: SDK Structures USA.
100% carbon prepreg / cured at high temperature.
Thermoformed damage tolerant foam cores.
Engineered weight controlled toughened core adhesive films.
Bulkheads / Structures: Carbon prepreg.
Finite Element Analysis of keel floor and principal structures.
Unique monocoque single piece bottom shell structure.
Weight controlled toughened core adhesive films.
100% carbon secondary bonding.
New 2022: Bottom Repainting for Durepox
Hull/deck

100% carbon prepreg / cured at high temperature
Thermoformed damage tolerant foam cores
Engineered weight controlled toughened core adhesive films
Engineered to ISAF Category 1 Safety regulations / ISO Regulations
Hull is very well and strong build, and can resist very tough conditions

Keel & Rudder

New 2019 Keel 3.2M draft from McConaghy China, fabricated weldox 700 steel keel fin, cast and CNC milled bulb.
New 2022: Rudder foil high ratio, Carbon autoclaved prepreg stock and blade
JP2 rudder Bearing- water tight & self aligning.
Custom carbon tiller with Spinlock extension + spare tiller/ extension.
Keel socket integral with hull shell laminate-Keel socketed to hull for easy and quick removal and installation, and enhanced safety and stiffness.
Rigging
Southern Spars carbon rig with engineered high modulus fibre for increased stiffness and weight saving.
Two piece rig with joiner for packing and transportation.
Two spreader rigs with carbon aerofoil spreaders.
Nitronic 50 rod rigging.
Gorilla racing Headfoil + Spare Harken Headfoil Twin groove.
Hydraulic Backstay Deflectors
Internal mast jack with pump.
Custom furler for forestay adjustment
New 2022: SK99 running backstays
PBO inshore running backstays, 2018, Future Fibres,
Kevlar offshore running backstays, since boat launch, stainless steel end fittings, heavier duty.
Mast is fitted with 7 Halyards: Main, 2x Spin, 2x Jib, Fro, GS +spares
Halyard locks x4 for: Main, Spinnaker, Jib, Fro.
1:1 main halyard with reef bullets on it.
New sheets and control lines 2022
full serviced and scanned mast and rig 2022
Carbon boom, carbon gas vang strut.
Mast base with additional sliding plate and screw adjustment.
2.2m Bowsprit carbon prepreg, two internal tack lines new 2022
1.2m Bowsprit carbon prepreg, two internal tack lines.
Sails
Kites

A2-C 2022 Quantum Bainbridge Airx 600
A1,5-C 10.2019 North Sails superkote 50/60
A2-B 10.2019 North Sails superkote 60/80
A2-A 2018 North Sails
Code 0 2018 North Sails laminate
A1-B 2015 North Sails
A0-A 2015 North Sails laminate
FRO-A 2015 North Sails laminate
A1-A 2013 North Sails
Headsails

J2-D 2022 Quantum M7+ Lite skin Black 17000dpi
Blast Reacher 2022 Quantum M7+Cableless 14000dpi
J1D 2019 North Sails 3di raw 870 12,6dpi
J2C 2019 North Sails 3di raw 870 16,8dpi
SS 2015 North Sails laminate
J1-c 2015 North Sails 3di
J2-B 2014 North Sails 3di 780
J2-A 2013 North Sails 3di 780 dynema/carbon 16,8dpi
J3-A 2013 North Sails 3di 780 dyneema/carbon 19,6dpi
J3+A 2013 North Sails 3di 760 aramid/dynema 2240dpi
J4-A 2013 North Sails 3di 760 aramid/dyneema 22,4dpi
JT 2013 North Sails 3di 760 aramid/dyneema 14,7 dpi
GS 2013 North Sails 3di 760 aramid/dyneema 12,6dpi
storm jib 2013 North Sails
Mainsails

MN4 may 2022 Quantum M7+ Lite skin Black
MN3 November 2018 North Sails 3Di RAW 870 w/C-Tech battens
MN2 September 2013 North Sails 3Di 760 (Aramid/Dyneema/ Carbon)
MN1-I September 2013 North Sails 3Di 780 (Dyneema/Carbon)
Storm trysail september 2013 North Sails
MN0-D Delivery dacron
Accommodations
Optimised open plan interior for ease of sail handling and spinnaker take down drop.

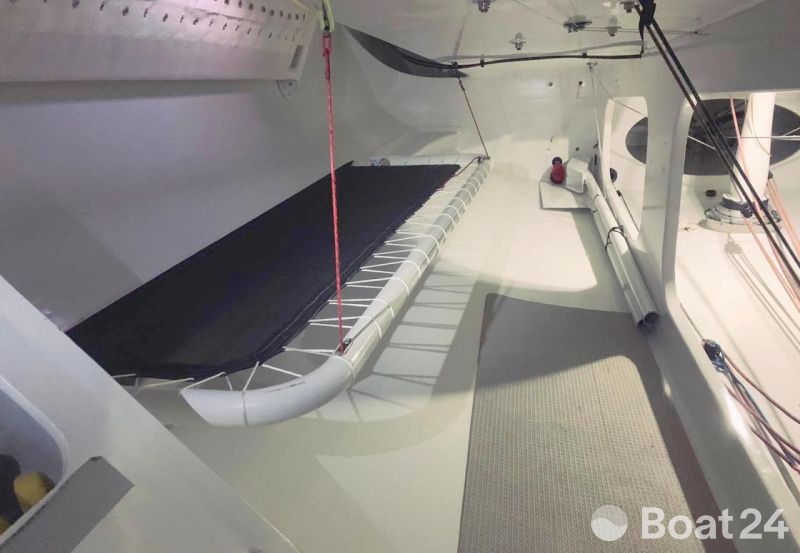

6x adjustable sleeping bunks( new 2021), 2 fixed berths ( new cushions 2022), forward V-berth.
EVA foam on the floor.
Red and White LED interior lighting / aircraft spec wiring.
Ventilation fans over the bunks.
Enclosed WC
1 burner wireframe cooker.
1x Hi-ratio electric Bilge pump new 2022
1x electric bilge pump
2x hand bilge pump

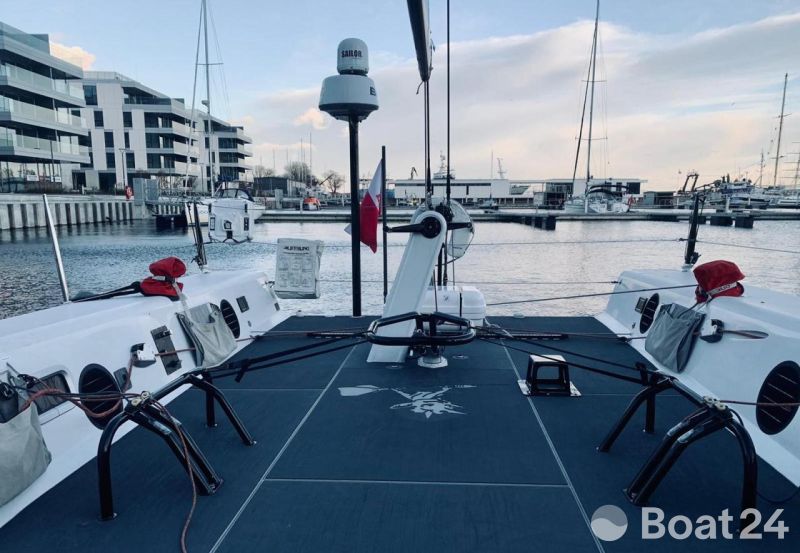

Deck and Cockpit
Full SeaDek EVA in the cockpit.
Deck anti grip Repaint new 2022
Diverse Performance Spinnaker Take down system ( connected to Grinder)
Lewmar Coffee Grinder system
Harken Black Magic Air blocks deck gear and regulations.
New 2022: Jib up/dwn + in/out regulation system (block+lines)
Pit Spinlock XC jammers.
Spin sheet Spinlock XC jammers( double)
Mainsheet Spinlock XC jammers
Lewmar OneTouch Winch Handles
Lewmar 60/3 GPST Primary Winches Custom Winches gear ratio for better performance
Lewmar 50/2 GPST Main Winches
Lewmar 40st Runner + pit Winches
New winches drums(2019)
Karver Furler & swivel
Diverse lightweight Hi Load soft padeyes.
Light weight custom carbon forward hatch with pneumatic seal, big internal radius for ease of gennaker hoist and drops.
Composite socketed stanchions / alloy fwd rail,
Composite aft aerofoil stanchion.
Offshore carbon Companionway Wash-board
Cockpit Rope tail bags
Engine
Fully serviced and upgraded engine 2022

30hp Yanmar engine with sail drive
Gori racing propeller new 2022
42 litres fuel tank + 70l delivery tank
Engine box with bottom step and electronics display
Cockpit Spinlock control new 2022
Safety
OSR cat 2 ready ( all equipment needed)
Superlight Carbon Liferaft
Electronics and Navigational Gear
Navigation Computer (new 2022)+ Nav station accessories
B&G H3000 Motion CPU
B&G Halcyon Gyro Processor+ Halcyon Gyro Stabilised Compass
NMEA2000 + Fastnet/ NMEA0183 via converter
Mast Bracket: 3×20/20 repeaters, 1x GFD, 1x H5000 Graphic display
2x cockpit GFD new 2022
B&G Zeus chart plotter inside the boat
B&G MHU carbon windwand
2x spd Sensor ( port/ Starboard)+ water temp
Airmar Depth sensor
B&G Halcyon 2000
B&G Motion Sensor
Forestay Load-sensor
Baroplug (barometer+Temperature) (new 2022)
Rudder sensor new 2022
Runner Deflector length sensor new 2022
B&G VHF and AIS System
B&G additional Wireless VHF Handset
Navico GO-FREE wifi/ NMEA2000 wifi
IstarGPS: Hi-Speed& accuracy GPS
B&G 4G radar
Satelite FleetOne ( antena + modem + handset)
Option for SSB: Icom IC-M802 HF/SSB with AT-140 Tuner (12VDC)VHF
Carbon mounting pole for Radar & FleetOne
Raymarine st2000 Tiller pilot
180 amp ACG house battery.
60amp ACG engine start battery.
Led Navigation lights.
Additional

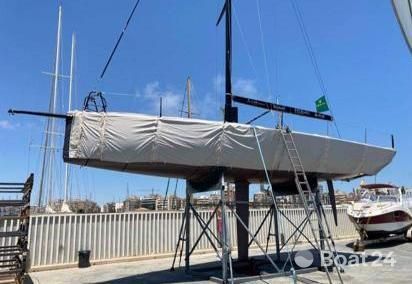

Assembled/folded Cradle for easy transportation.
Single point lifting ( Removable eye bolt fitting)
Cockpit floor cover, boom cover, winch covers, onshore full boat cover
Sun light tent, sun/rain havy tent.
Miscellaneous tools and spares.
2 x foldableAnchor.
Fenders and dock lines.
