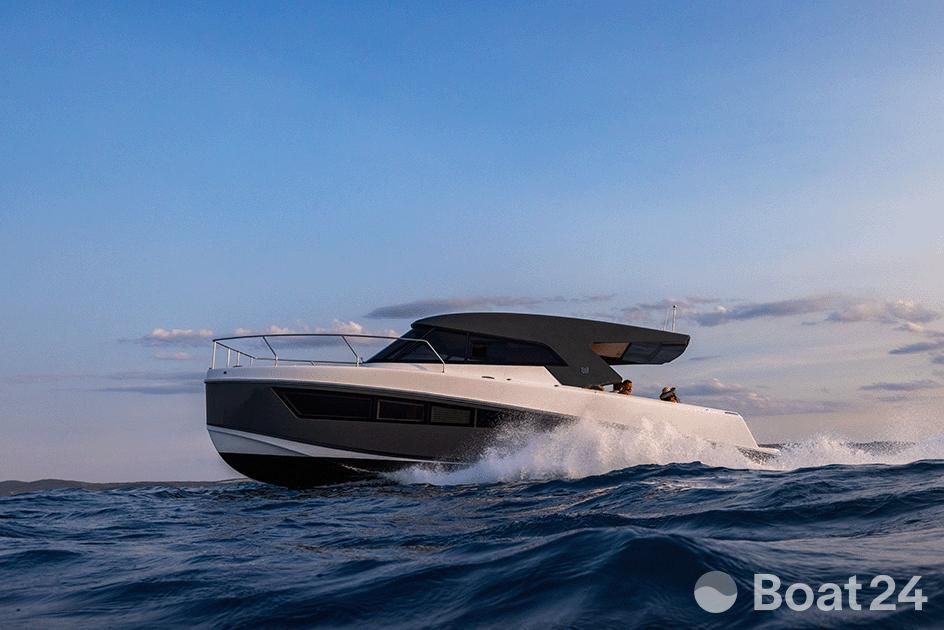

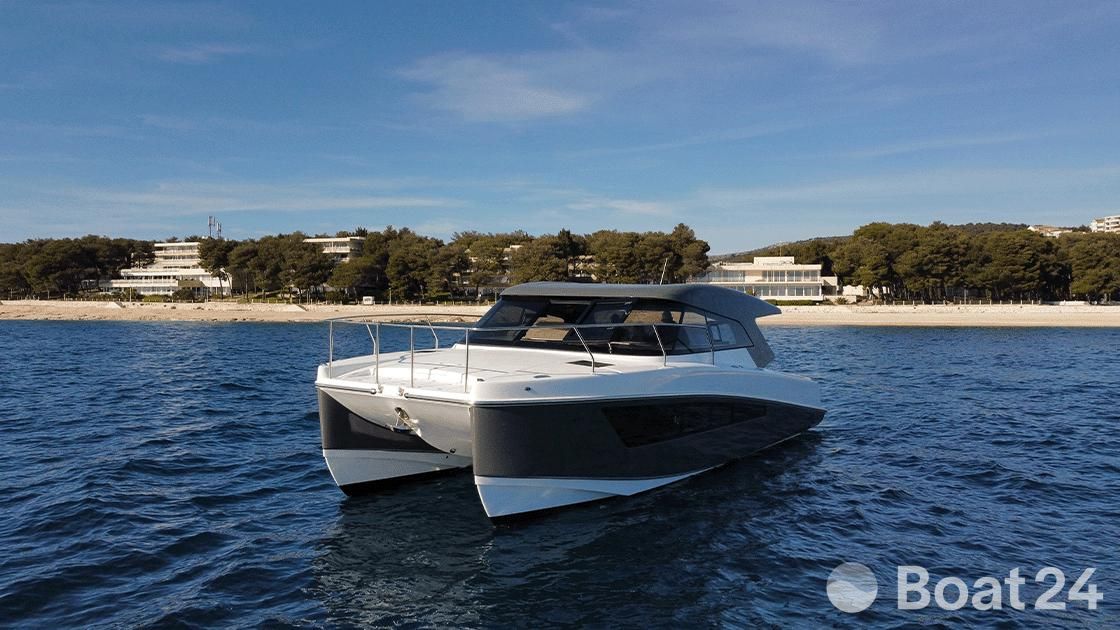

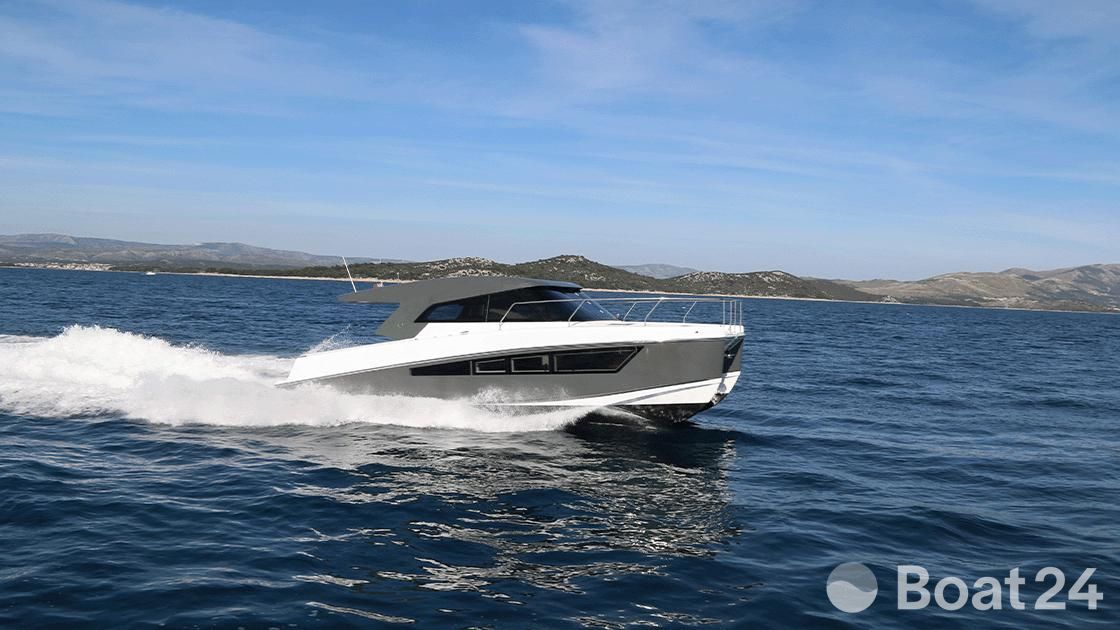

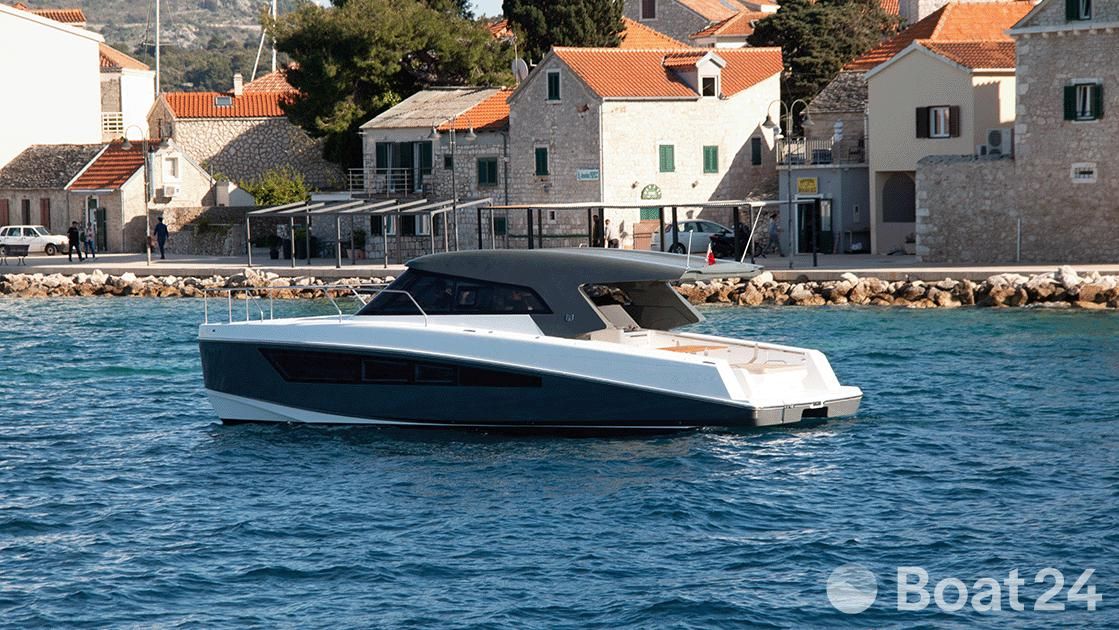

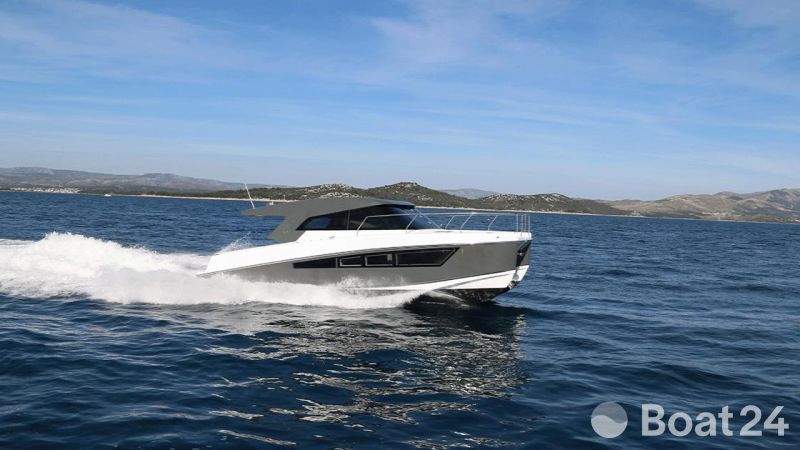

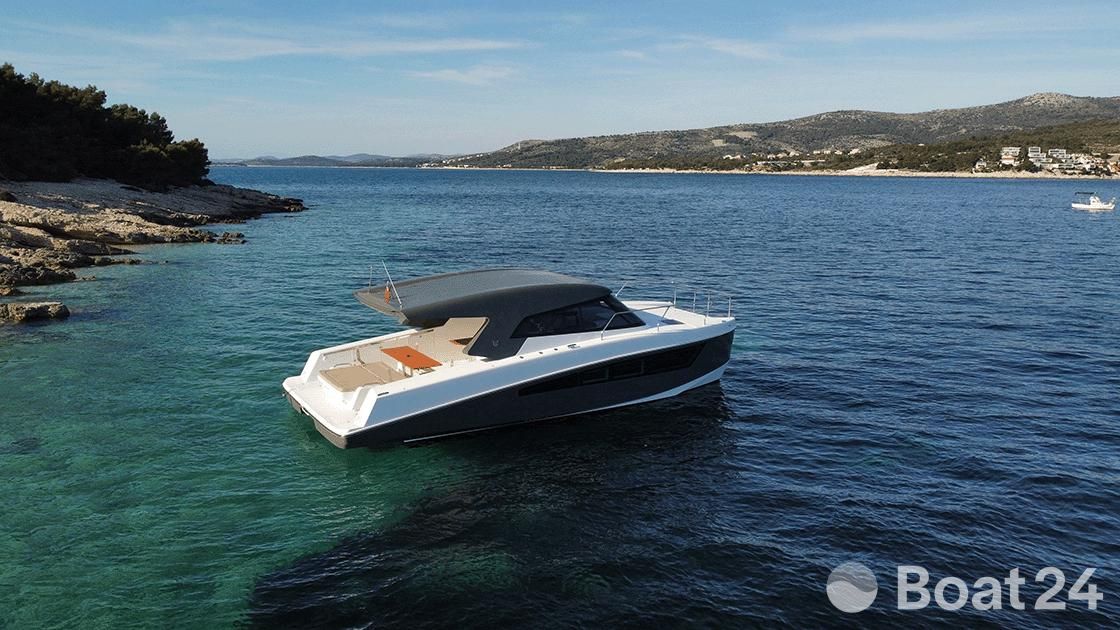

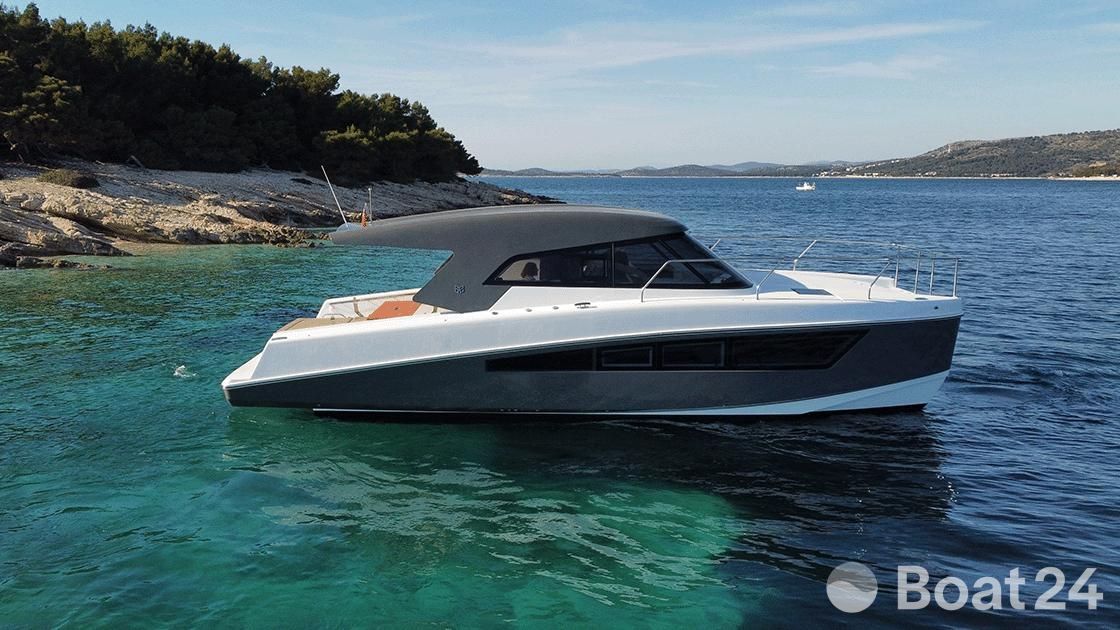

MAKAI M37 Power Catamaran

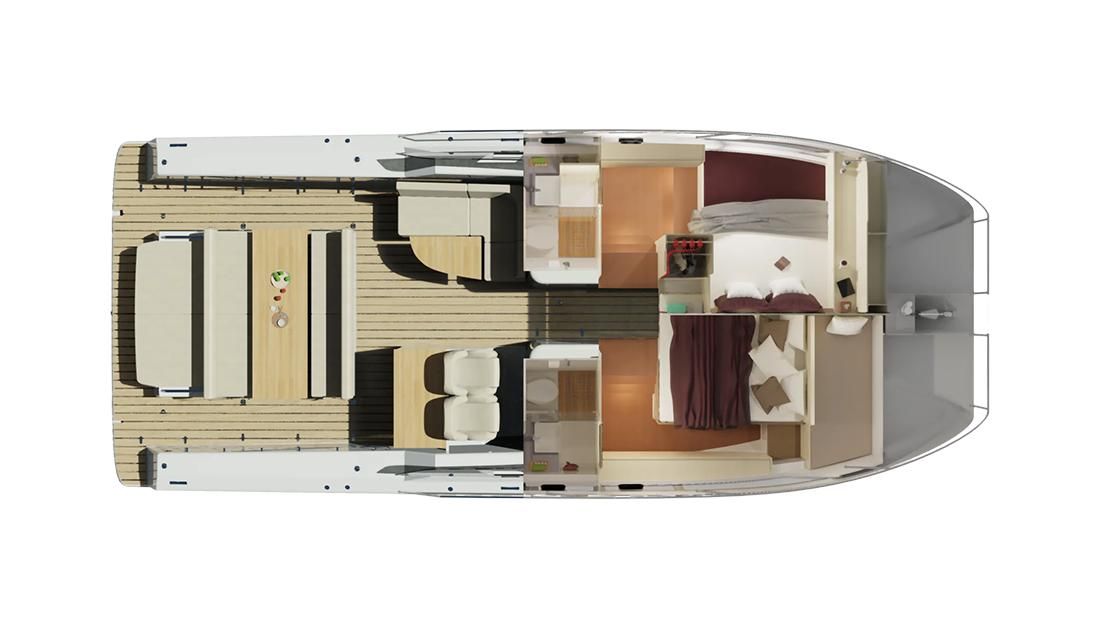

The MAKAI M37 is an 11.4 meter powercat that boasts a spacious cockpit and two large cabins, each equipped with en-suite heads, offering extensive comfort and space. Beyond its generous dimensions, the M37 distinguishes itself with its efficient hull design, bright and spacious interiors, generous natural lighting, abundant headroom, queen and double mattress beds and excellent natural ventilation.

Contact us now to explore all available options.

M37 Standard Edition Specs

Overall Length: 37’ / 11.4 m
Waterline Length: 30’ 10” / 9.4 m
Beam: 15′ 2″ / 4.6 m
Draft (Drives Raised): 2′ 2” / 0.66 m
Draft (Drives Down): 3′ 7” / 1.1 m
Displacement: 21,384 lbs / 9.7 tonnes
CE Category: B-12 People, C-18 People, D-26 People

Exterior / Laminate

Finish: Full female-molded hulls and decks, white gelcoat finish, molded-in non-slip surfaces.

Hull Laminate: Infused DCPD resin laminate with vinylester tie layer.

Hull Core Material: High-quality PVC closed-cell foam core.

Deck Laminate: Infused DCPD resin laminate.

Deck Core Material: PVC and PET closed-cell foam core hybrid.

Certified: ISO-compliant laminate and scantling specifications, CE certified.

Hatches and Portholes

Forward Hatches: (2) 440mm x 440mm

Mid Cabin Portlights: (4) 319mm x 172mm

Companionway Door: (2) Sliding acrylic with locking mechanism

Side Window Openings: (2) Sliding

Forward Storage Hatches: (2)

Cockpit Engine Hatches: (2) with gas stays + 2 fixed

Cockpit Storage Hatches: (3) with gas stays

Combing Storage Hatches: (4)

Deck Equipment

Forward Ladder Hatch

Windlass Hatch

(6) Fender Fixations (3 per side)

(6) Collapsible stainless steel cleats (240mm)

(2) Stainless steel fairleads

316 Stainless steel bow rails with bow gate

Forward Boarding Ladder (Stainless Steel)

Aft Swim Ladder (Stainless Steel)

Heavy-Duty Rubrail

Full-Width Swim Platform

Numerous stainless steel handrails

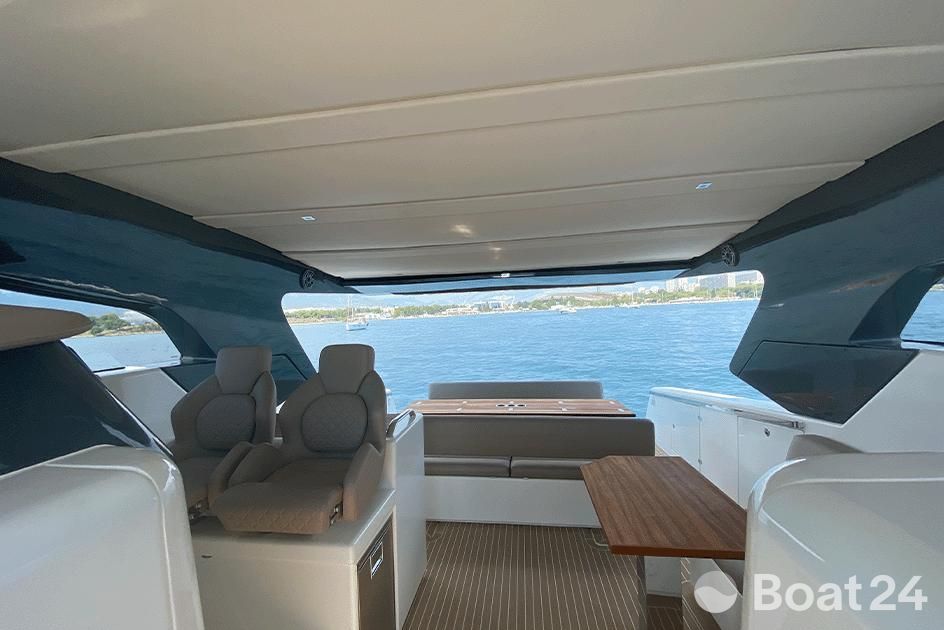

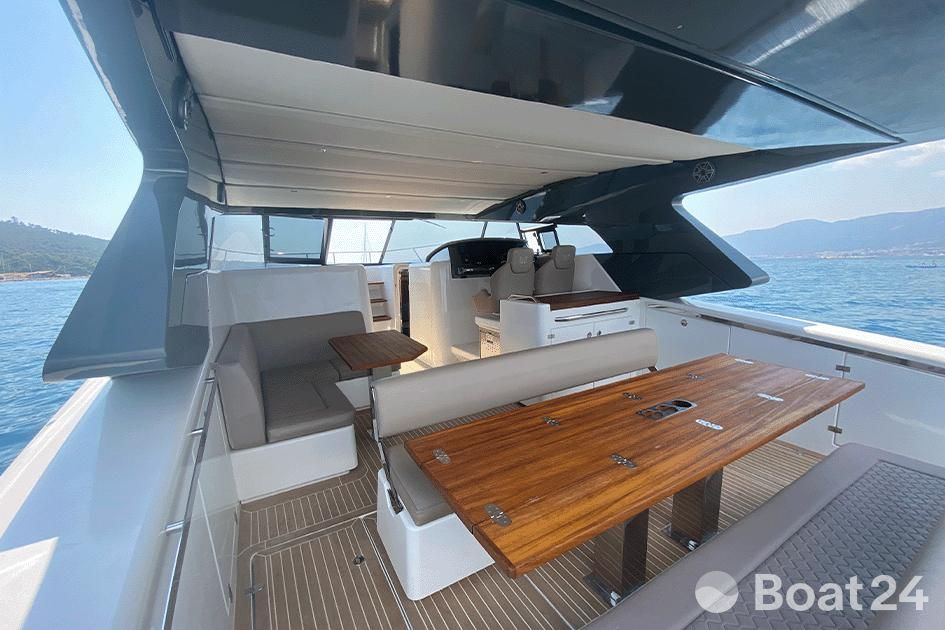

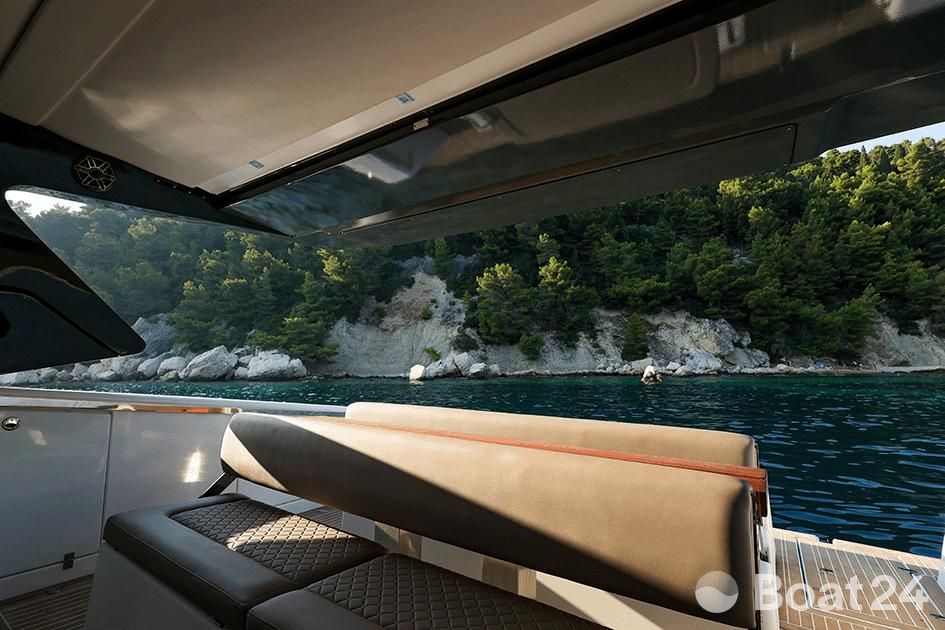

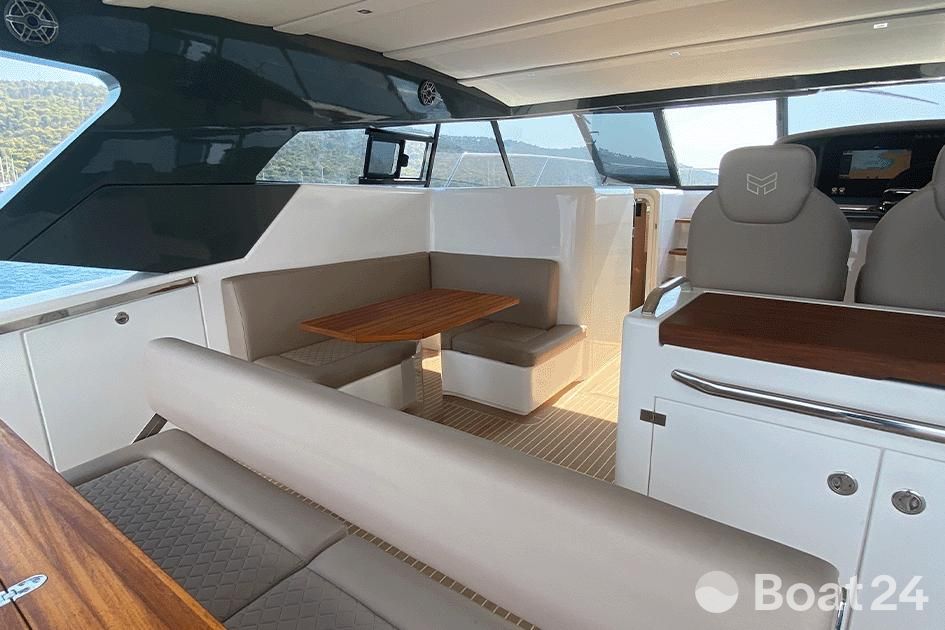

Cockpit

Elegant Hardwood Cockpit Table

Upholstered L-Settee with hardwood dinette

Forward Windscreen Doorway

Durable Fiberglass Hardtop

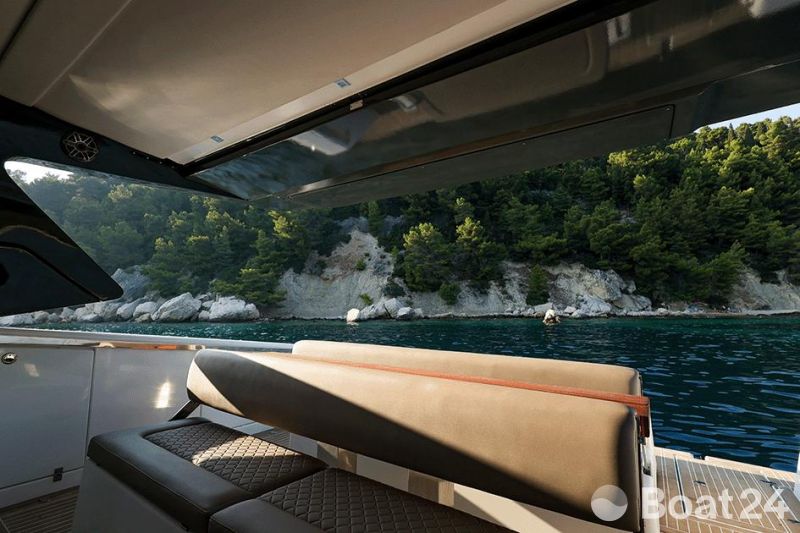

Sun Lounge with movable backrest and storage

Dining Lounge with movable backrest, ice box, and under-seat storage

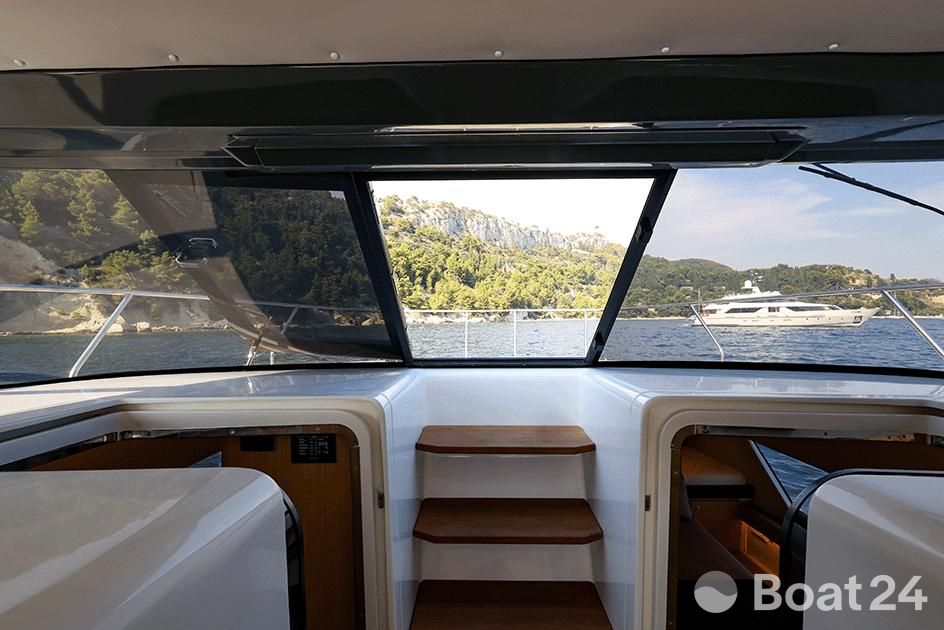

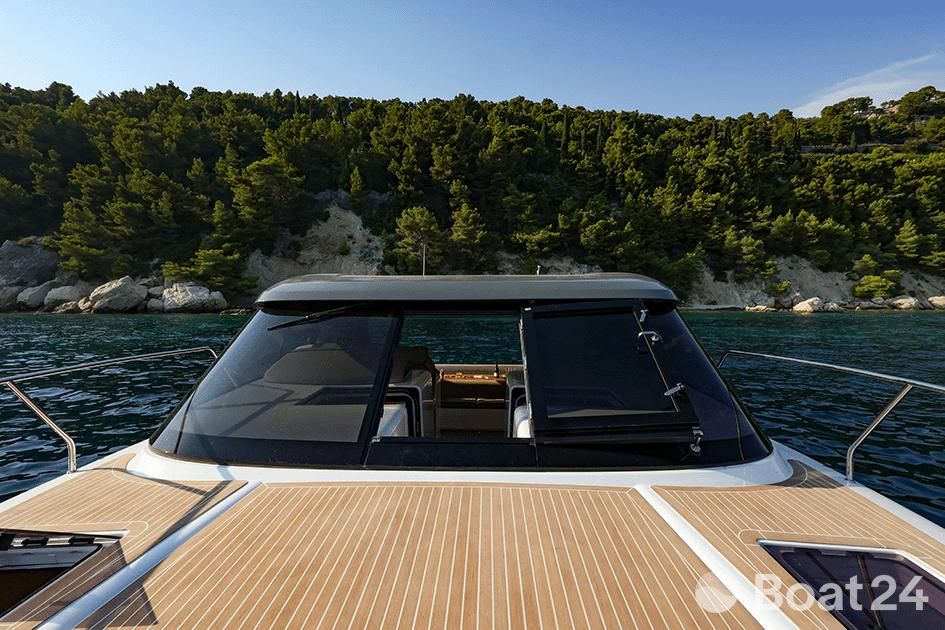

Full-Height Glass Windscreen

Interior Finish

Cabin Sides/Furniture: Gloss gelcoat finish

Cabin Top: Lightweight molded textured gelcoat liner + vinyl paneling

Flooring: Synthetic timber flooring

Handcrafted white oak cupboards, doors, shelving

Trimmings: Sustainable imitation leather (optional colors)

Headboards: Antimicrobial soft textured fabrics (optional colors)

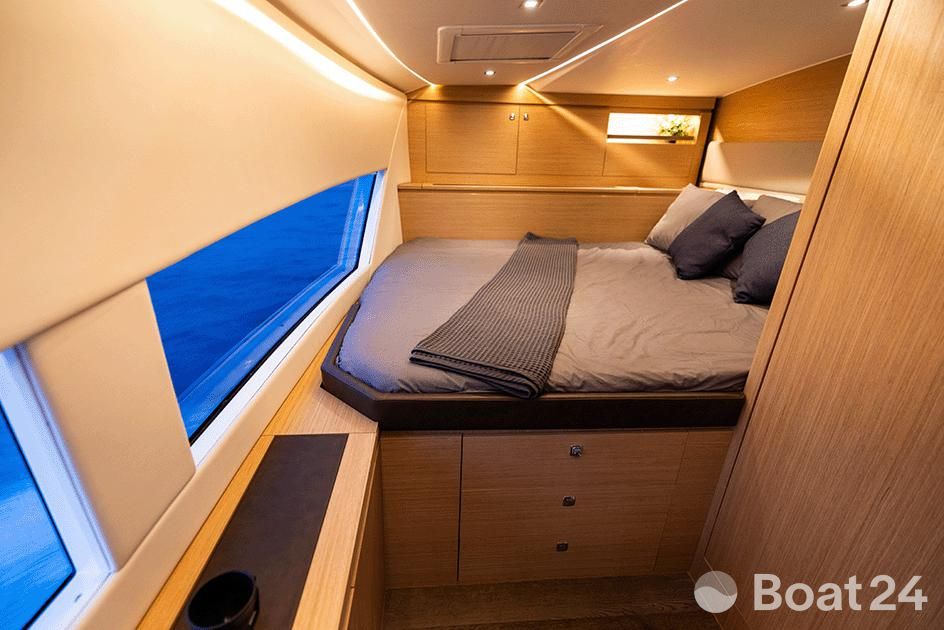

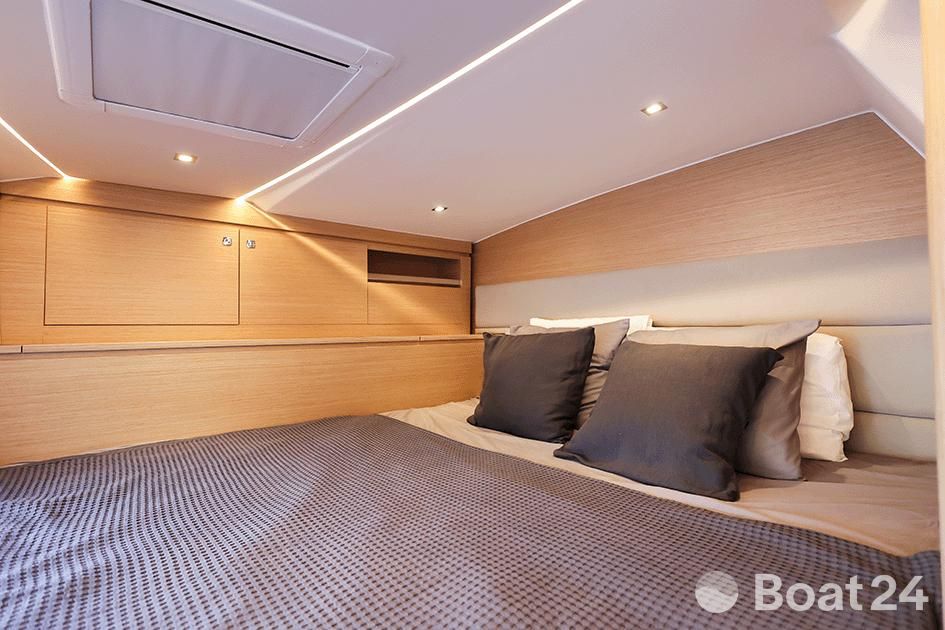

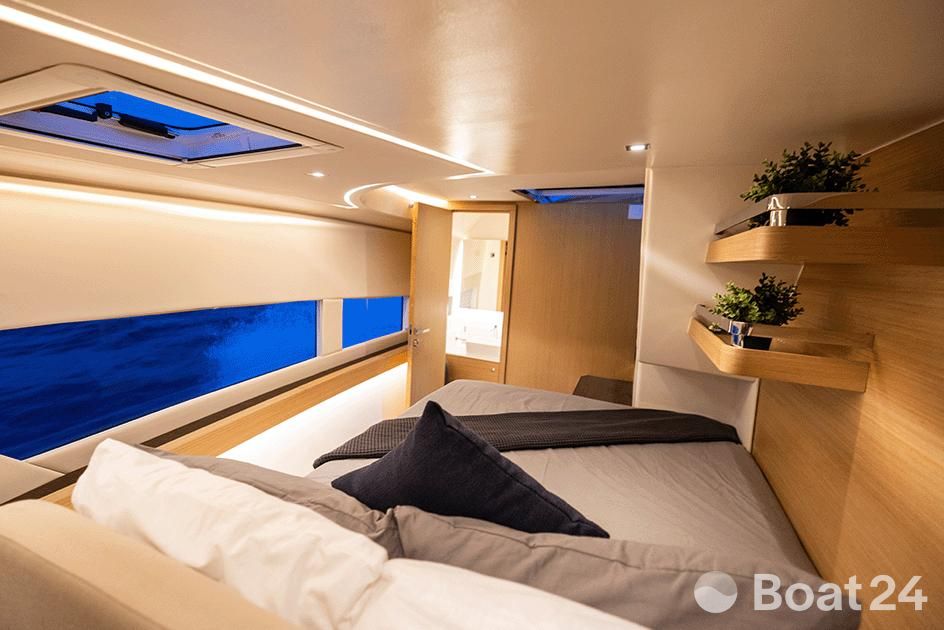

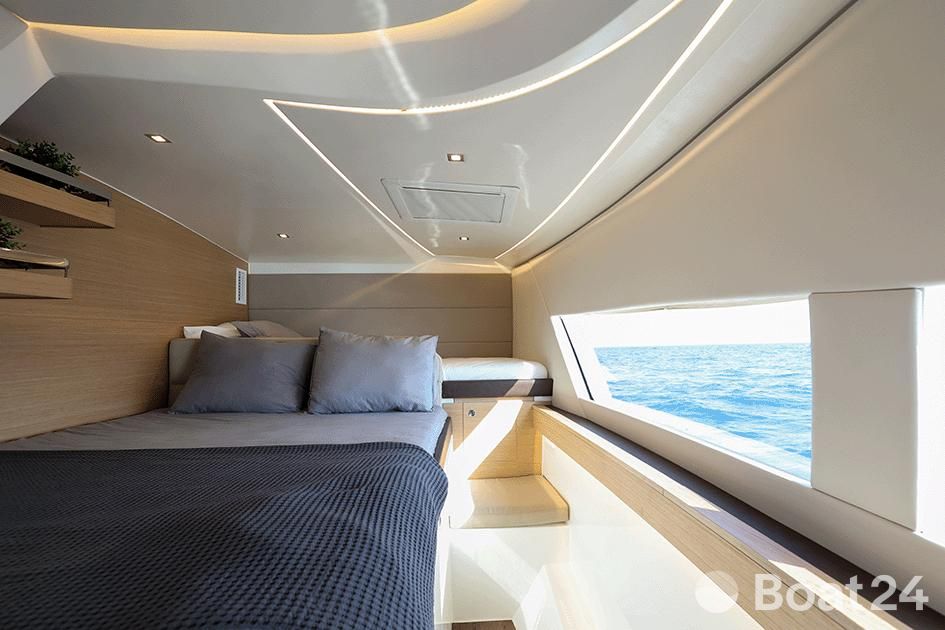

Master Cabin (Port)

Queen Bed: 150mm foam + latex

Panoramic side windows with portlights

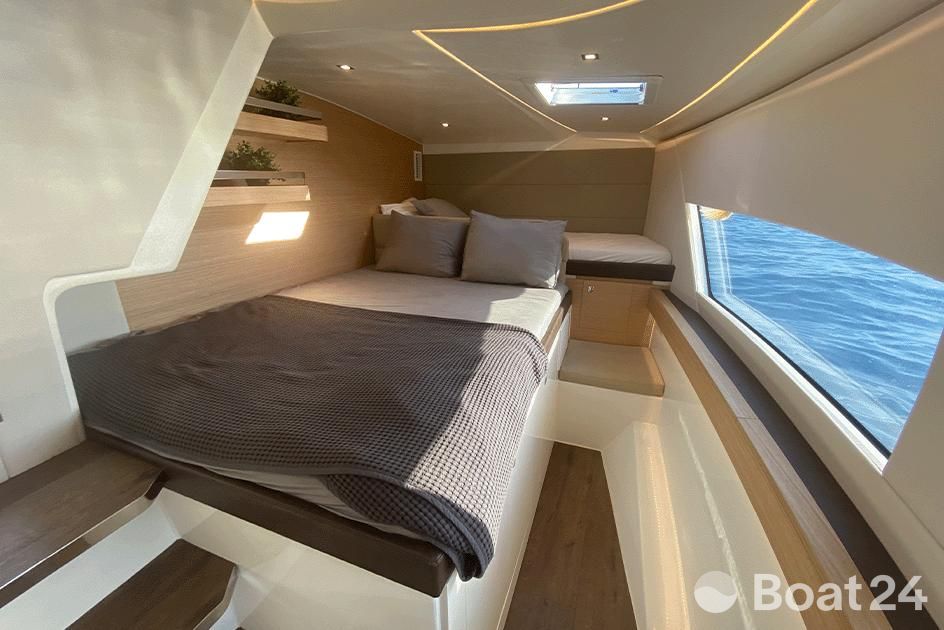

Guest Cabin (Starboard)

Double and Single Bed: 150mm foam + latex

Panoramic side windows with portlights

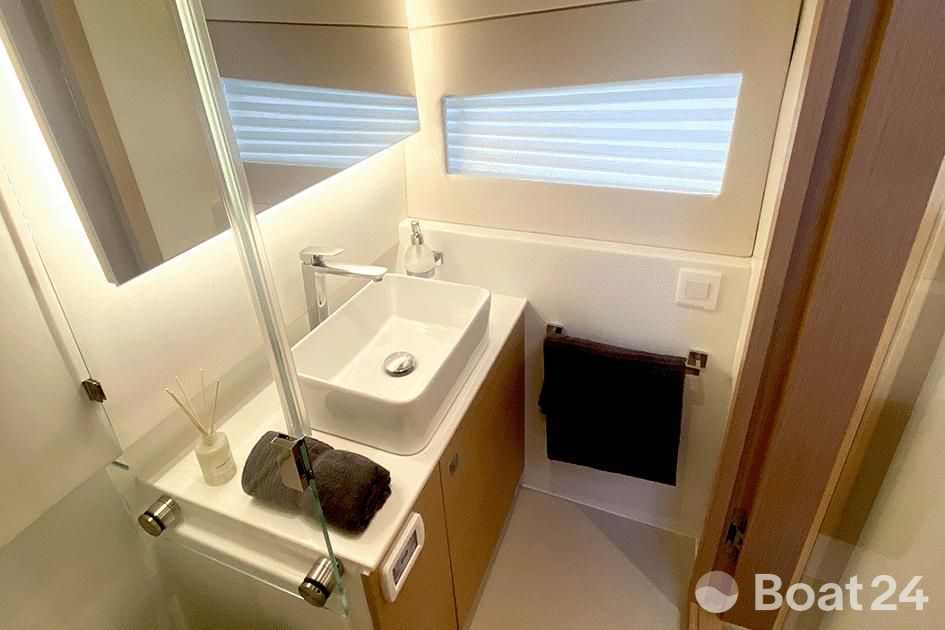

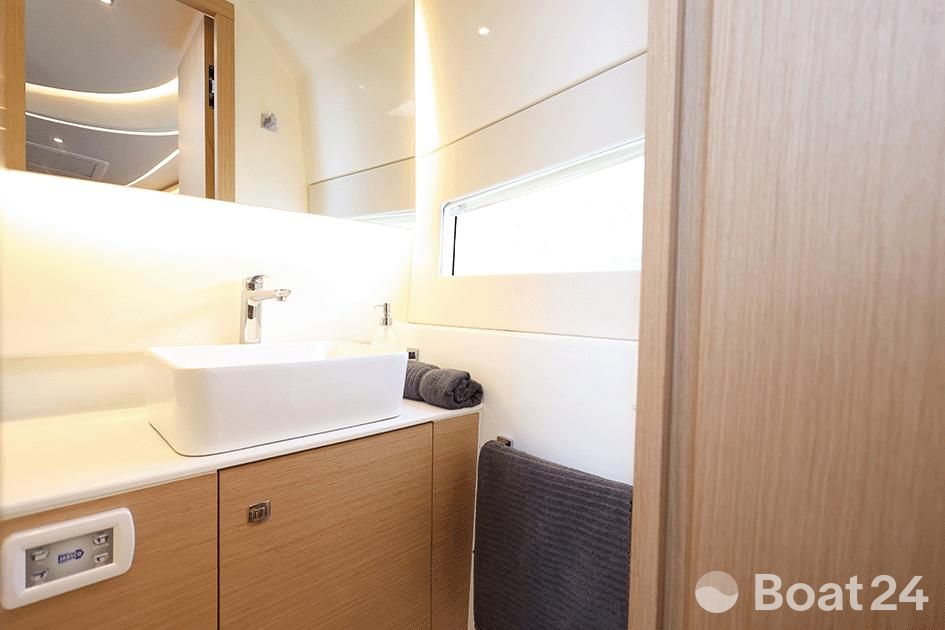

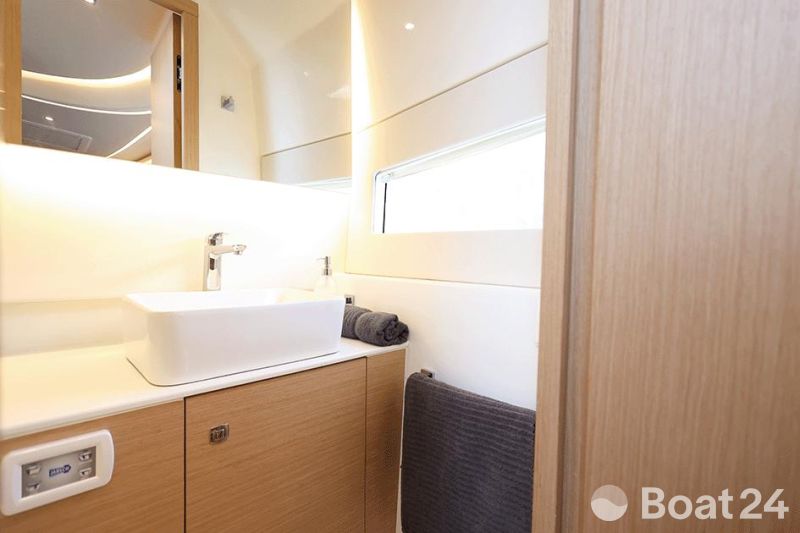

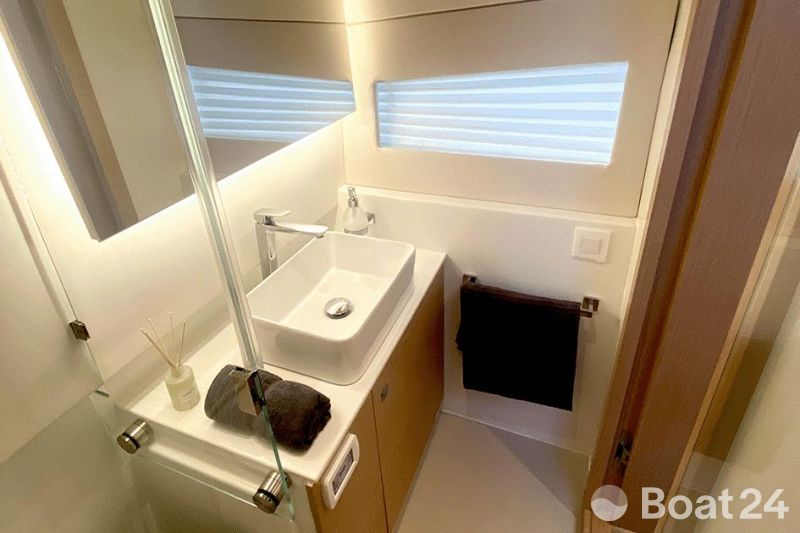

Heads (2)

Electric Freshwater Toilets

80-liter Holding Tanks (shore or overboard discharge)

Wash Basin with faucet

Shower Stall with glass door

Electric Shower Bilge Pump

Mirror: Large backlit

Flooring: Stone effect solid surface

Storage: Cupboard, towel hook, soap dispenser

Galley

Sink: Stainless steel with folding hot/cold faucet

Upright Fridge/Freezer: 48L stainless steel front-opening

Two Burner Diesel Stove with glass top and splash back

Galley Storage: Under-bench + pull-out waste/recycling bin with gas stay

High-quality handcrafted hardwood galley cover

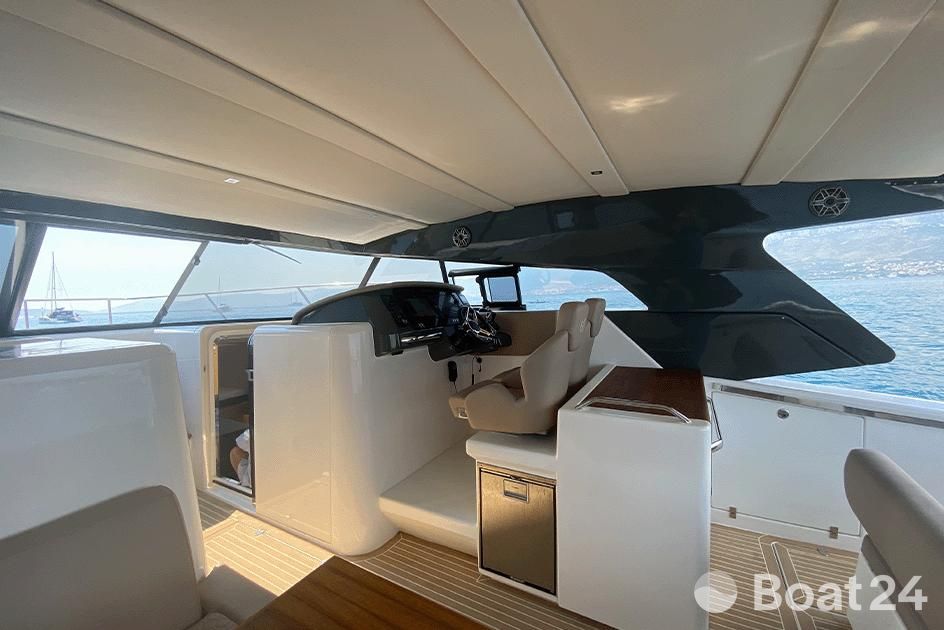

Steering System

Helm Seats: Dual adjustable

Steering Wheel: Leather trim, adjustable

Power-assisted hydraulic control

Variable Speed Windscreen Wiper

Bridle: 16mm 3-strand with stainless steel hook

Navigation

12” Chartplotter with GPS

Depth Transducer

VHF Radio with DSC and antenna

Horn

Electrical Systems / Lighting

Digital DC Switching System with 5” companionway screen

Voltage display and tank levels via NMEA2000

Marine-grade tinned wiring and heat-sealed connectors

Down Lights: Numerous 12V LED

Courtesy and recessed cockpit lighting

USB Outlets: 3 (1 per cabin, 1 at helm)

Batteries

House System: (2) 240Ah AGM batteries

Engine Start Batteries: (2) 110Ah AGM

500amp Isolation and Smart Management System

Remote Battery Switching (port cabin)

Engines & Equipments

Twin Yanmar 320hp 8LV-320 Engines

Upgraded Edition: 2x 370hp Yanmar 8LV-370

Alternators: 120A

Twin Yanmar ZT370 Sterndrives, contra rotating 24″ stainless steel props

Upgraded Edition: MAKAI QSPD Surface drive system

Fresh Water Tank: 450L

Electric Fresh Water Pump with accumulator

Water Heater: 40L

Electric Bilge Pumps (4) + Manual Bilge Pumps (4)

Fuel Tanks: 900L total (2 x 450L)

Engine Room Ventilation: (4) High volume exhaust fans

Pre-Filters: With fuel/water separator, 10 micron

Through-Hull Fittings: CE/ISO Compliant

Sound and Fire Protection: 30mm sound insulation with aluminum lining

Interceptors: (2) 300mm automatic with helm display

NMEA2000 Connectivity

Remote Electric Start

Dual Electric Engine Controls

Fresh Water Tank Level Display at helm

Anchoring System

Anchor Roller: Integrated under deck

Anchor: 35lb Epsilon (Delta type)

Electric Anchor Winch: 700W, remote at bow + helm controls

Anchor Chain: 50m of 8mm galvanized short link

Anchor Bridle: 16mm 3-strand with stainless steel chain hook

Additional Features

Epoxy Barrier Coat

Two Coats High-Quality Antifouling Paint

Fenders and Mooring Lines: (3) fenders + (3) 15m x 14mm lines
