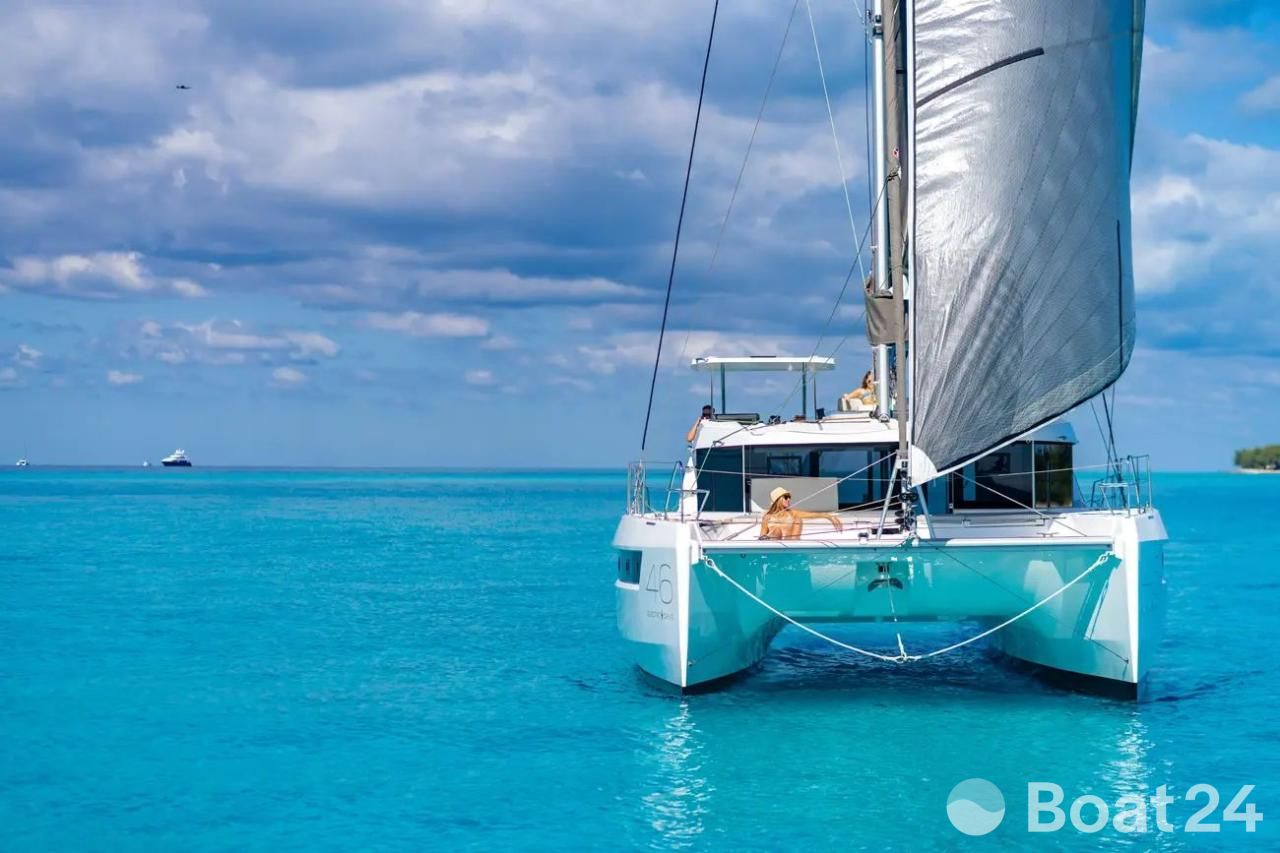

Leopard 46 Sailing Catamaran
The new Leopard 46 sailing catamaran represents a significant upgrade from its predecessor, the Leopard 45. Building upon the successful DNA of Leopard catamarans, this new model offers a spacious, robust, and high-performing cruising experience.

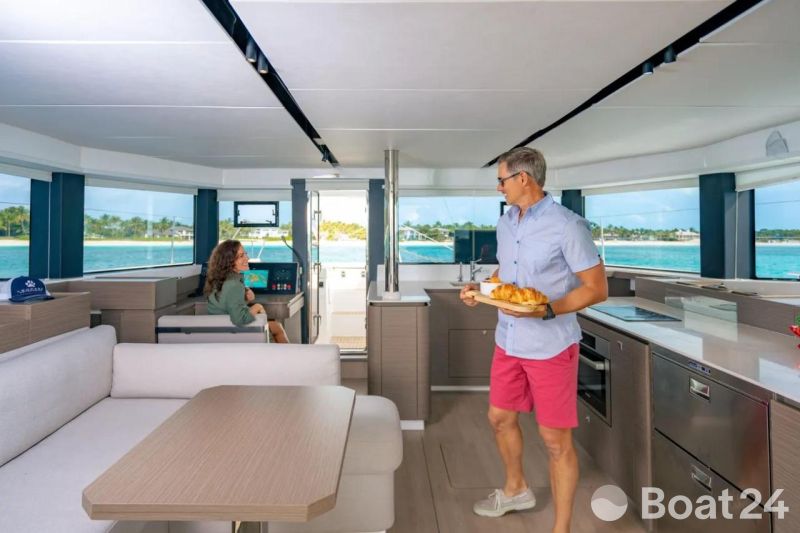

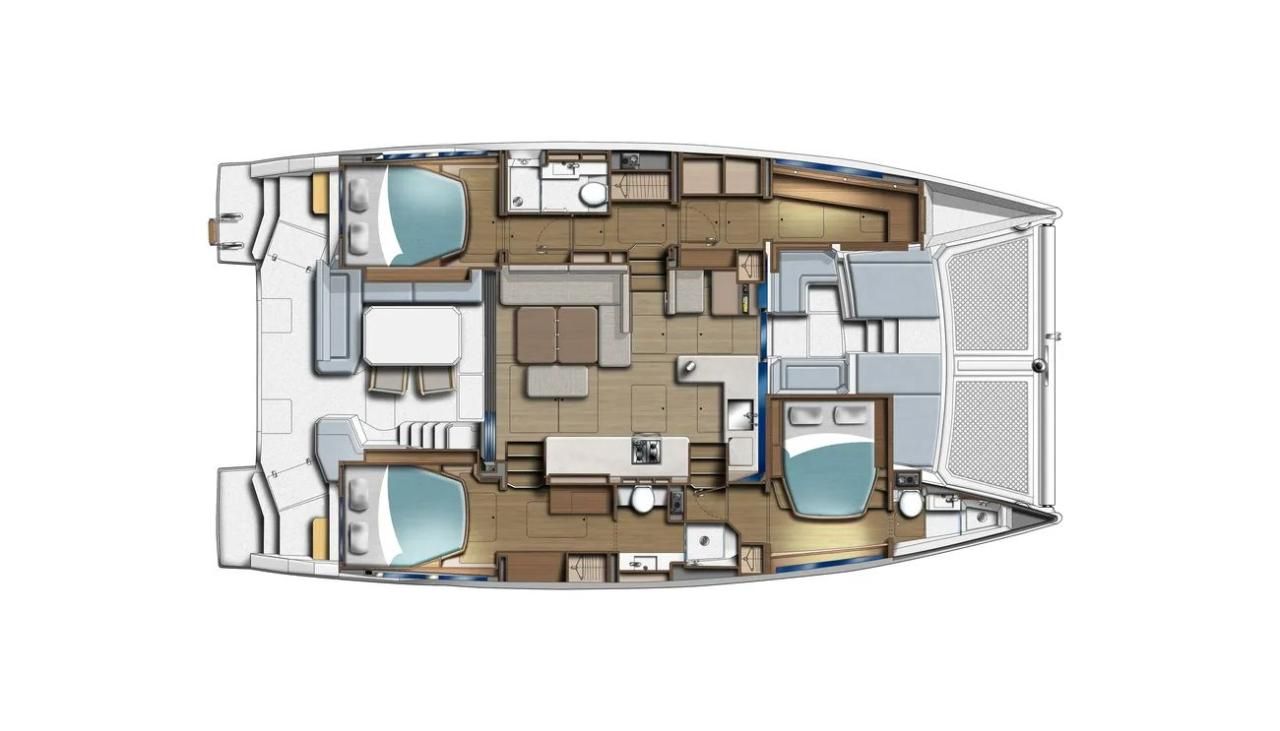

While retaining the core elements that made the Leopard 45 so popular, the Leopard 46 introduces numerous innovations to enhance comfort, convenience, and sustainability. The layout has been refined to provide a seamless integration between the aft cockpit and saloon, allowing for flexible living spaces. The elimination of the skipper cabin has made way for more spacious accommodations, including a choice of three cabins plus a utility room, a four cabin layout, or five double cabins, all with ensuite head/showers.
Available with two standard 45hp Yanmar diesel engines (or optional upgraded 57hp versions), the Leopard 46 also ushers in a new era of sustainability with the optional HYBRID ELECTRIC DRIVE SYSTEM: The system includes a power management box, electric propulsion pod, high-voltage lithium-ion battery, solar array, and range-extending generator. The boat’s power can be sourced from solar panels, sailing regeneration, shore power, and a range extender. The system can manage charging and discharging, providing power for both propulsion and house loads. Testing shows speeds over 8 knots and regeneration capabilities up to 1.8 KW per hour per hull.
Whichever power option you choose, when it comes to sailing performance, the Leopard 46 excels. The stepped hulls and powerful rig with overlapping genoa provide superior handling in all wind conditions. The protected helm station is designed for offshore single-handed sailing, making it ideal for long-distance voyages.
In conclusion, the Leopard 46 represents a significant advancement in cruising catamarans. With its spacious layout, innovative features, and commitment to sustainability, it offers a comfortable, efficient, and enjoyable sailing experience for both novice and experienced sailors alike.

Additional Information
INTERIOR

Utility room in lieu of port fwd cabin and port fwd heads
Upholstery Pack 2 – Approach „Linen“

ENGINES & DRIVE

Upgrade to Yanmar 57hp engines with sail drives in lieu of std 45hp engines (2)

NAVIGATION & ELECTRONICS

Marine Stereo. Includes Wifi and Bluetooth connectivity. Speakers in saloon (2), aft cockpit (2), fwd. cockpit (2) & coachroof (2). Wired remote controls in Helm station (1), Fwd cockpit (1) & coachroof (1). – Note: Raymarine MFD’s (not included in option) & personal wireless devices (only if connected wirelessly to Raymarine MFD via the Raymarine APP) can control system
Raymarine Base Pack: Includes Ray 73 VHF (Multizone with AIS receiver) at Nav desk & additional VHF handset at helm, p70s autopilot display and AXIOM12 Multifunction display in lieu of AXIOM7 Multifunction display at Helm station. With retractable depth & speed, plus wind transducers
AXIOM12 Multifunction display at Nav desk in saloon. (Requires Base Pack). Not to be ordered with option C1-3346 (C1-3346 comes with an upgraded RV (Real Vision) AXIOM12 MFD which fulfils the functions of this option)
Rear-view Raymarine camera (1)
Fwd facing Raymarine camera (1) with Augmented Reality function. Including AR200 GPS in lieu of base pack GPS.
Raymarine Automatic Identification System with AIS Transceiver

ELECTRICAL

220V Shore power pack: Includes 2 x 220V 32A port and 2 x 220V 32A stbd shore power inlets with 2 x heavy duty 50ft shore power lines, AC switch panel, 5000W 220V inverter/charger (in lieu of standard inverter), hot water cylinder and Convection microwave voltage conversion to 220V, Battery management system allowing monitoring on Multifunction display, AC outlets in cabins, saloon and galley
Shaver outlets in heads, combination 220V/110V with transformer current protection—(5)
Upgrade std Lead Acid house batteries to AGM batteries. Recommended with shore power option
Two additional AGM house batteries (210Ah) 6 Total.
Ventilation fans in cabins only for 4 cabin layout (4)
Provision for 9kW and 12kW genset (includes fuel supply, ventilation blower, auxiliary fuel/water pumps, light, exhaust & cooling water systems with through hull fittings. (Excludes genset unit & control panel, battery & AC wiring)
Provision for Air-conditioning System BTU and BTU. Includes ducting, air vents and cooling water system with through hull fittings, but excludes aircon units and controls. (Excludes wiring to pump, aircon and control locations)
Electric main sheet winch – (1) (in lieu of std manual winch).
Provision for TV in saloon – swing bracket
Provision for TV in owner’s cabin (4-cabin layout only)
Solar panels 400w each fitted to hard top – (4)

PLUMBING

Sea water inlet seacock with hose led above the waterline (for future Watermaker installation)
Washer/dryer (220V) installed in utility cabin.
220V Dishwasher in Galley.
Deck wash fitting & pump – dual fresh/salt water system

HEATING, REFRIGERATION & GAS

Fridge/Freezer (12V) installed in aft cockpit. Can be used either as a Fridge or Freezer
Two plate electric induction cooktop (220V) in lieu of 4-burner LPG cooktop and complete LPG system.

DECK & HULL

Aft Cockpit Cushions (Seats & backrests)
Fwd Cockpit Cushions (Seats Only)
Leather covered steering wheel
Custom S/S davit system with tackle c/w electric winch

SAILS & RIGGING

Boom Cover (Charcoal Grey) c/w Coachroof Lounge Awning

GENERAL EQUIPMENT

55lb (25kg) Stainless steel DTX anchor c/w 165ft (50m) galvanised chain
230ft (70m) anchor chain in lieu of 165ft (50m) chain.
Anchor bridle, shackles and hook
Black fenders (6), black mooring lines (4, 16mm x 10m), black spring lines (2, 16mm x 15m)
