Details

BASIC DATA;
LOA: 14,40 m / 47 ft
Hull length: 13.15 m / 43 ft
Width: 4.20 m / 14 ft
Draught: 1,08 m / 3,5 ft
Displacement (full tanks): 14.4 t
Fuel capacity 1.500l, fresh water capacity 700l, black and gray water capacity 400l
STANDARD EQUIPMENT;
A.) ENGINES;
1. 2 x 400 HP FPT/N60, 28 kts
B.) PREPARATION AND DELIVERY;
1. Hull color, deck and superstructur, white-gelcoat
2. Epoxy primer two coats under waterline
3. Antivegetativ, first coat hard, second coat selfpolish
4. Commissioning (up to 20 engine hours)
5. Builders certificate and EC certificate class ‚A/B‘
C.) DECK;
1. Stainless steel railing
2. Anodized anchor DELTA 20kg and 75m anchor chain 10mm
3. Anchor windlass 1500W with controller on spiral cable in anchor storage, chain expiration
counter on controler
4. Two bow cleats, two midd boat cleats, two stern cleats
5. Pair of mooring rope leads at the bow, fixed on wooden curb
6. Teek wood, complet deck
7. Deck curb, massive Iroko wood
8. Two handrails for each side walk

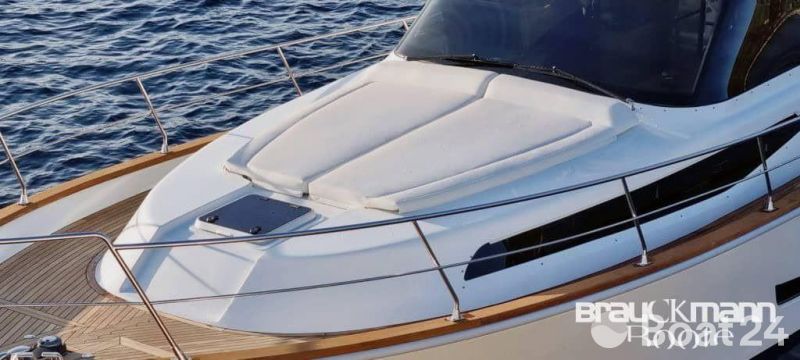

9. Sunbathing mattresses on the bow

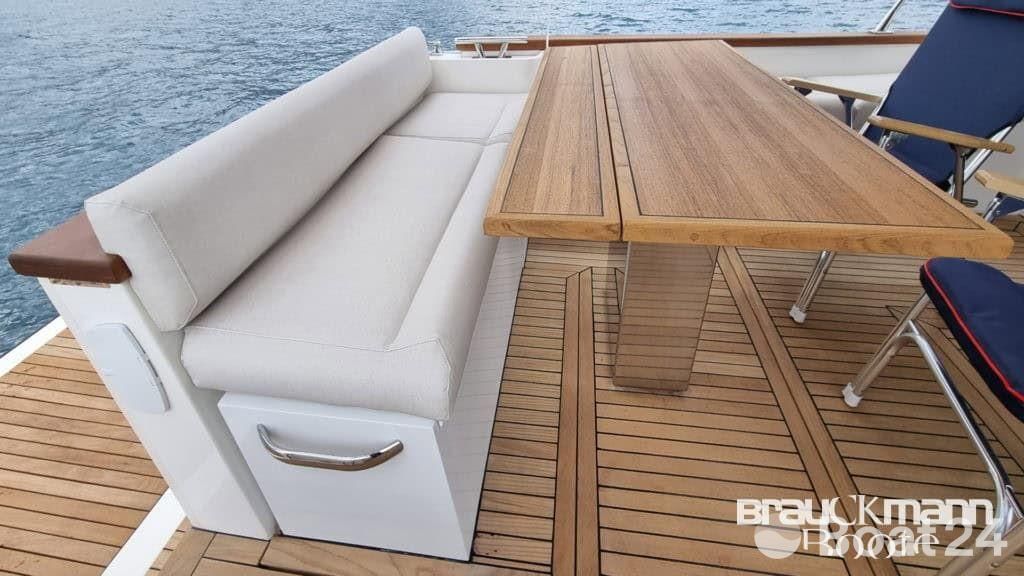

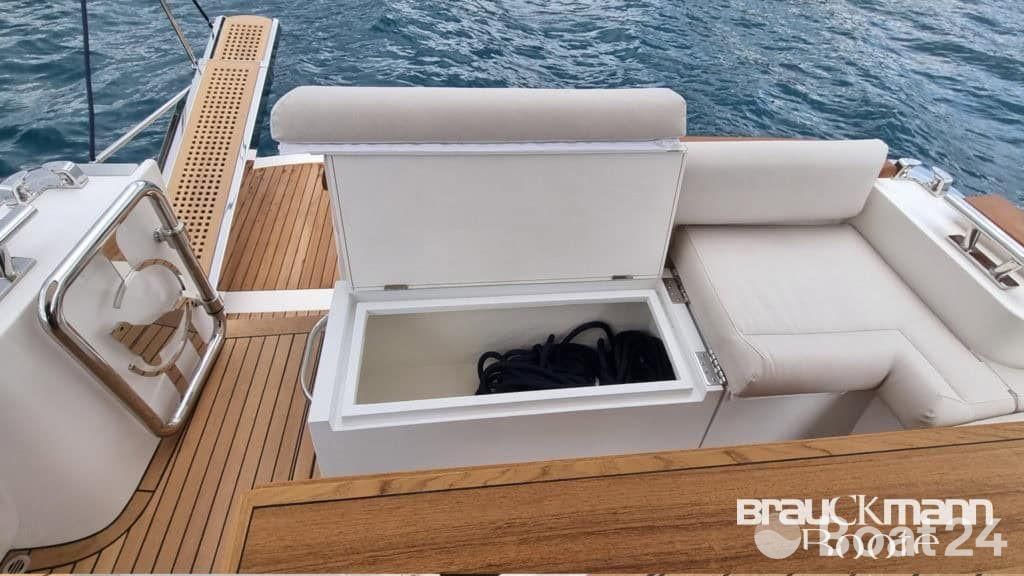

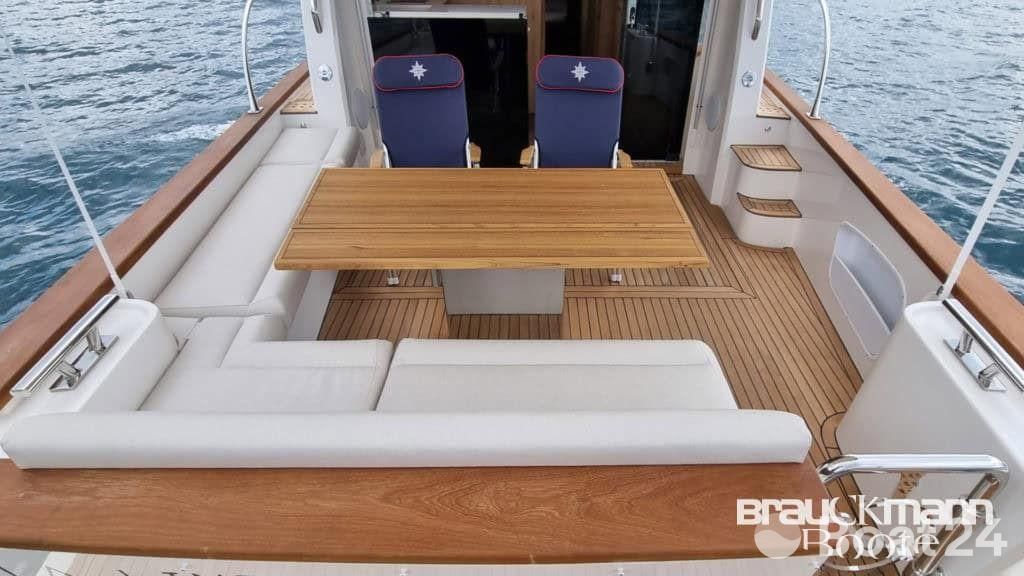

10. Aft Cockpit bench seat with cushions

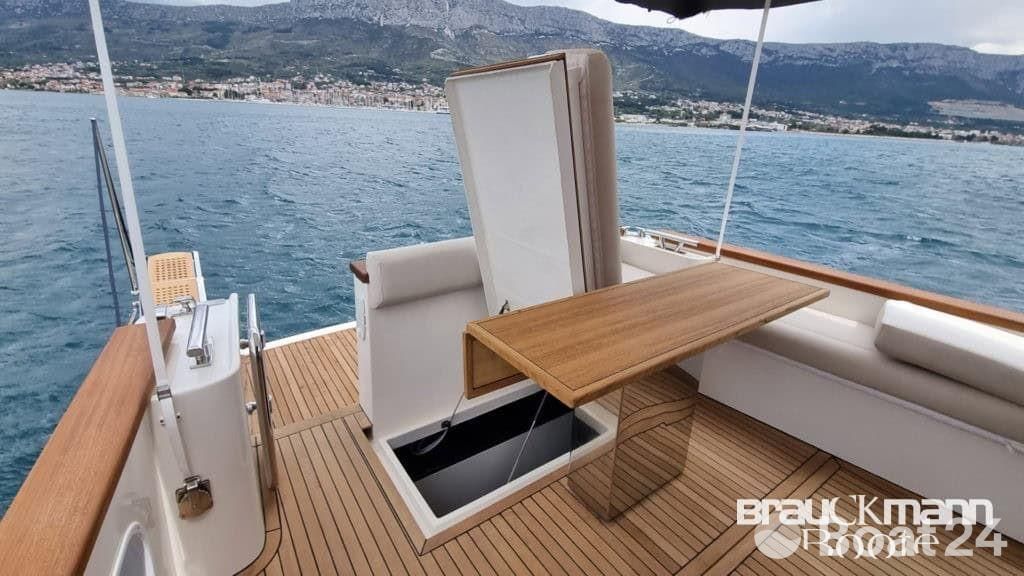

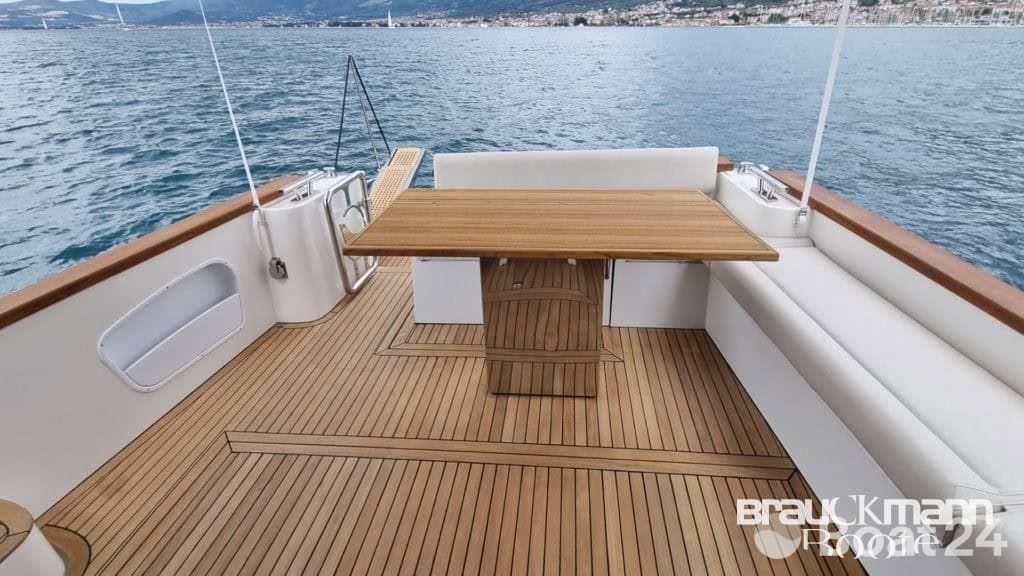

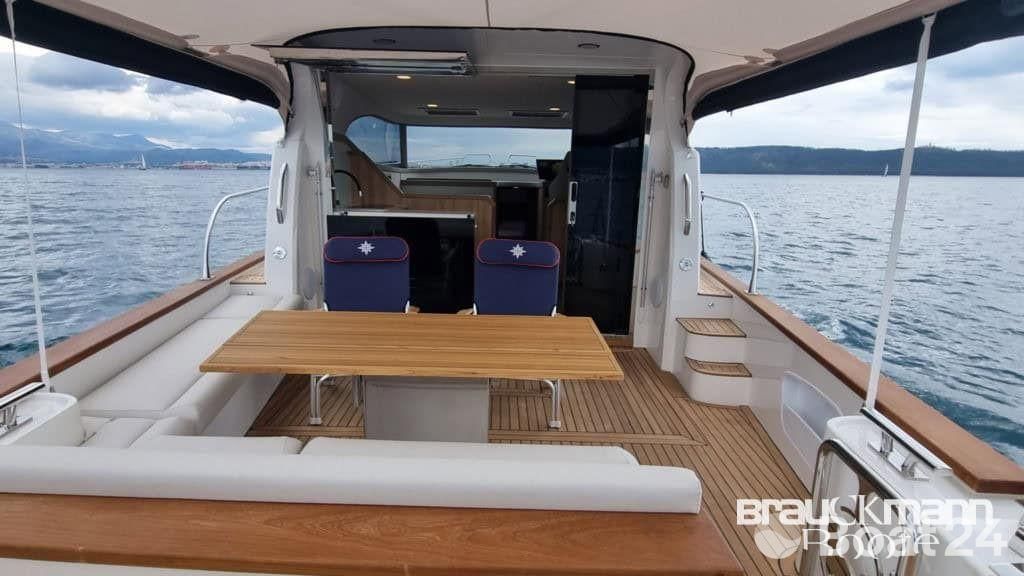

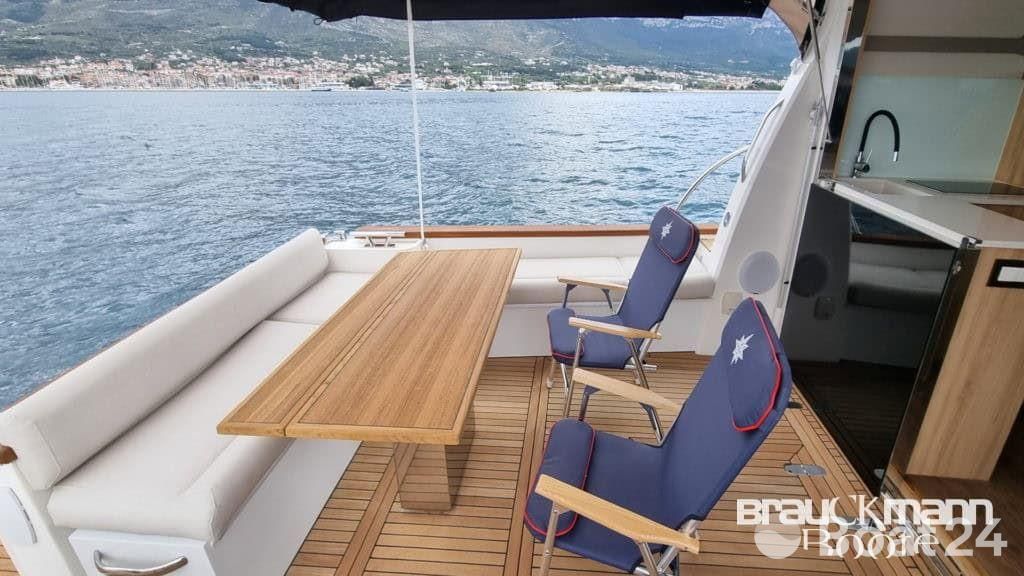

11. Fixed cockpit table, teak

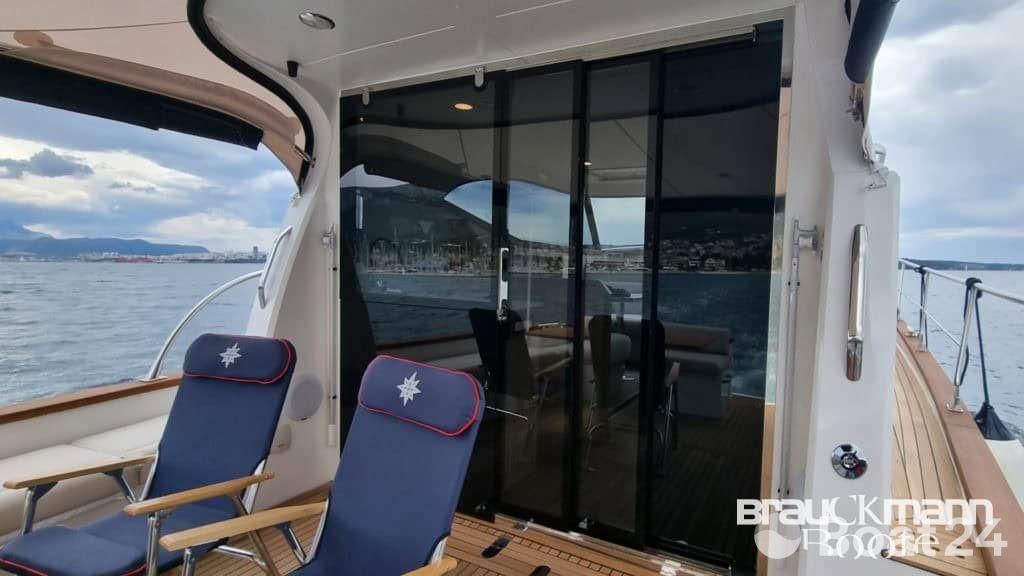

12. Two lightweight armchairs cockpit seats (foldable, canvas/aluminum)
13. Stainless steel construction with awning
14. Protective awning for windshields
15. Outdoor hot/cold water shower

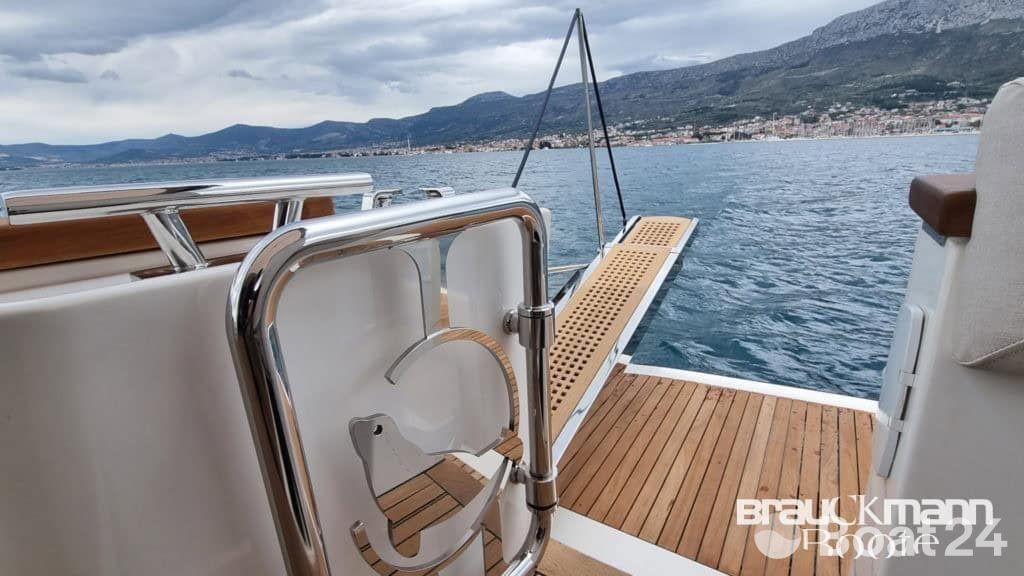

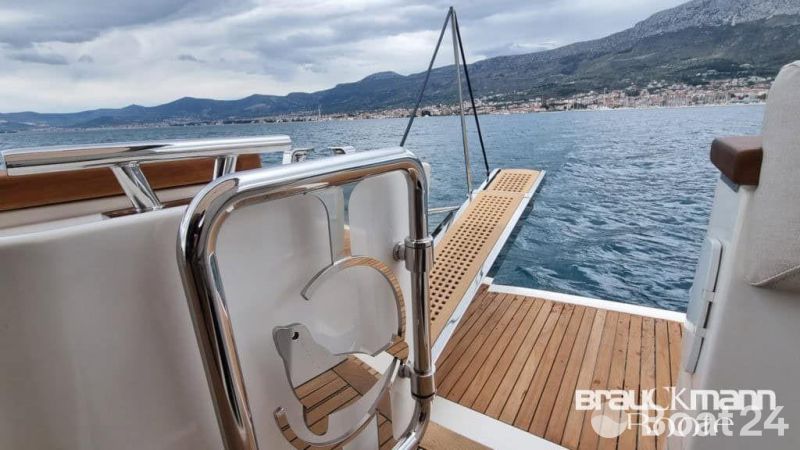

16. Stainless steel door with Monachus sign for exit to platform
17. Bathing stairs
18. Bathing platform, 125cm lenght
19. External hydraulic gangway 200kg load capacity
20. Pair of underwater reflectors in two colors
2
D.) INTERIOR;
1. Entrance door to the saloon with a folding window between the kitchen and the external
cockpit
2. Two electric sliding hatch above the wheelhouse 70 x 60cm
3. Steering wheelhouse with captain seat adjustable height and depth
4. Sliding side window to the captain’s seat
5. Upholstery, modern style canavas
6. TV with digital antenna in salon
7. Fusion marine Radio/USB/MP with 2 speakers in salon + 2 speakers for outdoor cockpit
8. Galey with sink, hot/cold water, cooking top, pantry
9. Fridge 180L, 40L freezer
10. Connector for 12V USB chargers, 2 in each cabin, 3 in salon
11. 230V (115 US) socket, in the salon, in the kitchen, in each cabin

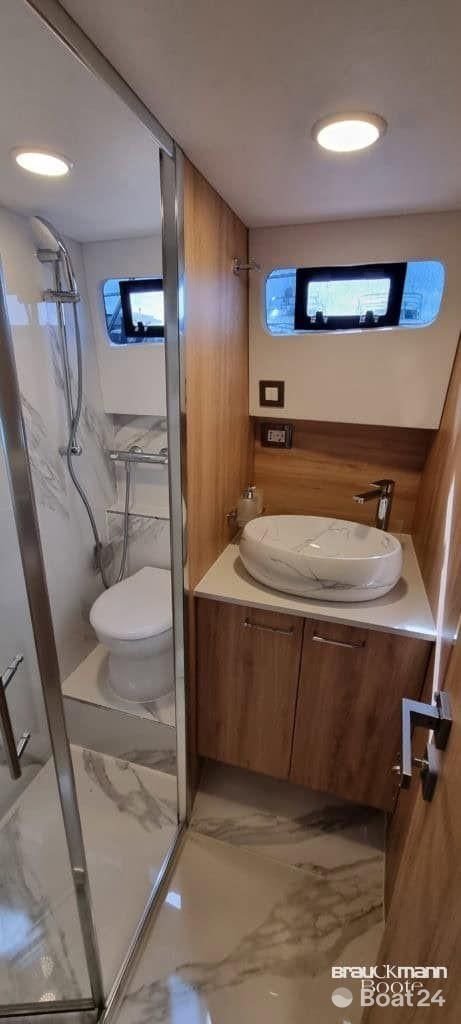

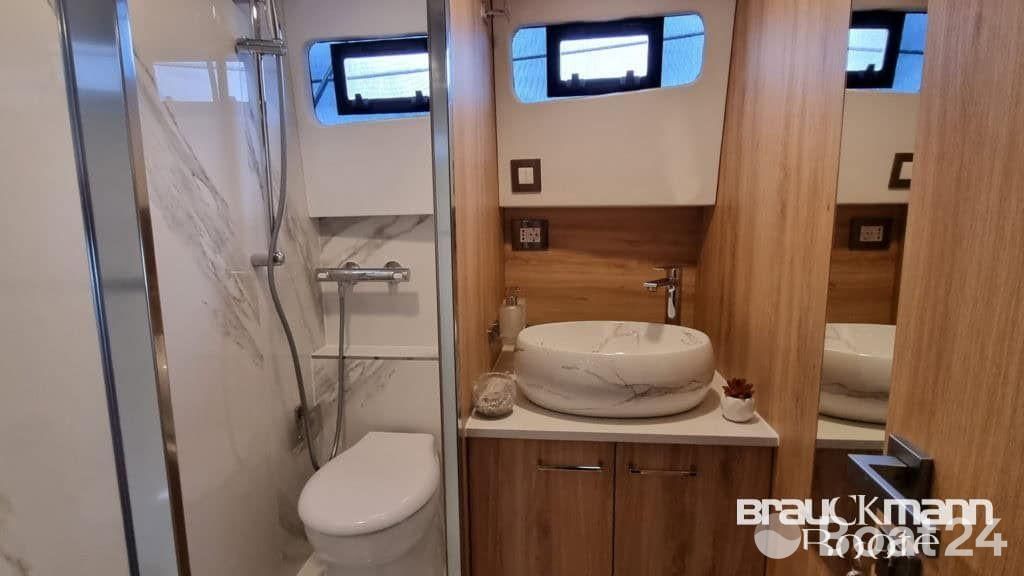

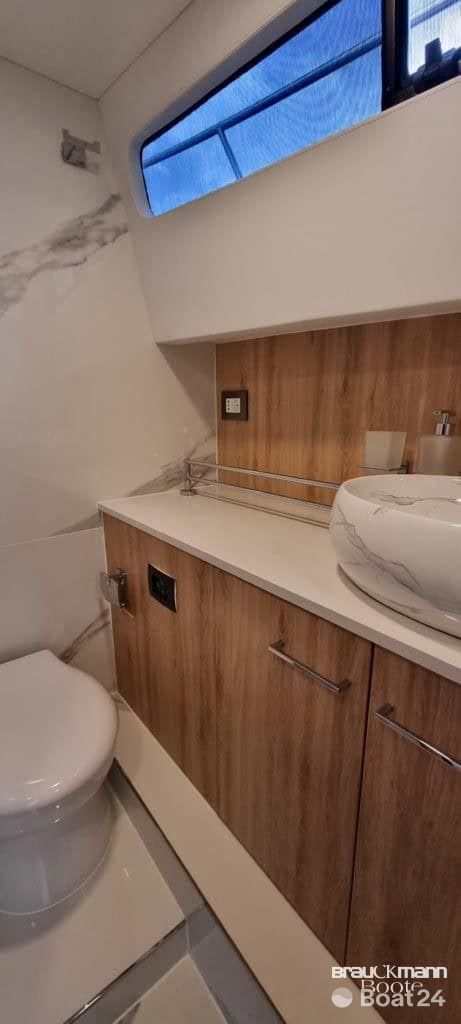

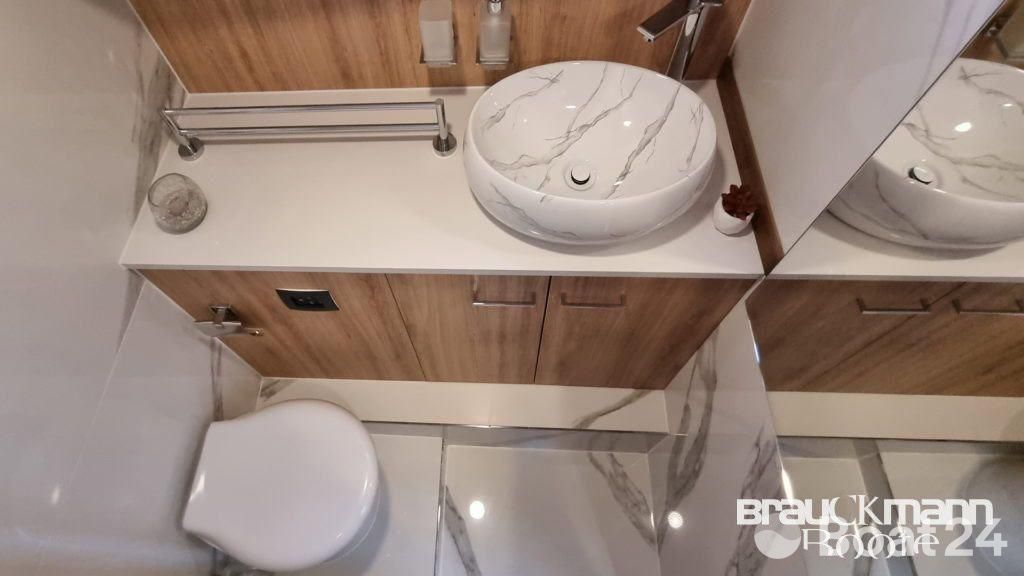

12. Fresh water flushing toilet bowls, electric-vacuum-silent
E.) NAVIGATION;
1. Garmin GPSMAP 16“ Plotter/Sonder on the control panel
2. Radar Garmin, display along with plotter (E.1.)
3. Garmin VHF station
4. Electronic engines controls
5. Engine performance data on a separate display-Smartcraft
6. Level indicators for all tanks
7. Autopilot Garmin
8. Hydraulic flaps for slope trimming
9. Anchor chain expiration counter on control panel
10. Bow thruster
11. Stern thruster
12. Horn with control at wheelhouse
13. Windscreen wipers with water syringes
14. Electrical switchboard DC12V/AC 230V with all device controls and fuses
F.) COMFORT;
1. AC 24.000BTU splitted in all cabins and salon
2. Generator 230V-5,5 kW
3. Charger 230V/12V 60ApH / inverter 12V/230-1000W and baterry status indicator
4. Water heater 230V – 35l capacity
5. 230V socket for cable connection to shore
6. Shore connection cable 30m
G.) SAFETY & DOCKING
1. Electric bilge pumps with indicators on command console, 3 pcs.
2. Manual bilge pump
3. Fire-fighting self-activating ampoules for the engine room
4. Carbon monoxide detector in each separate room
5. Galvanic insulator for protection against poor grounding on the shore
6. Mooring ropes 4 pcs. in length 15mt.
7. Fenders 6 pcs.
8. Boat hook
788 500.00 EUR, (VAT is not included), FCA Port of Split
3
ADDITIONAL EQUIPMENT;
H.) ENGINES;
1. 2 x 500 FPT/N67, 33 kts, 23.600 EUR
2. 2 x VOLVO D6, IPS 600 Joystick, 98,000,00 EUR
I.) DECK;
1. Anchor DELTA 20kg and anchor chain stainless steel, 4.700 EUR
2. Stainless steel rope pass eye at the bow (through the hull) for mooring ropes, 2.800 EUR
3. Deck curb lacquered (UV varnish), 3.600 EUR
4. LED lights along the side walk edges, 1.820 EUR
5. Mesh curtains as sun protection for sides, zip-fastened, 1.600 EUR
6. Fishing rod mounting bracket, per pcs., 450 EUR
7. Live bait pool (size, accommodation and price on request)
8. Fishing chair (type, accomodation and price on request)
9. GRP door with pantograph closure for exit to platform (recommendation for ‚big game
fishing‘ due to occasional dynamic reverse drive), 3.600 EUR
10. Retractable hydraulic gangway 180kg loading capacity, 2.7m length, 12.600 EUR
11. Hydraulic bathing platform, load capacity 400kg, 125cm length, 23.000 EUR
12. Bathing platform for ‚Big game fishing‘ only 50cm in total length, (on request)
13. Additional underwater reflector rear or side, 1 pcs., 1200 EUR
J.) INTERIOR;
1. Custom selection of interior lining materials, 6.300 EUR
2. Three-cabins layout (in lieu of two cabins STD.), 6.600 EUR
3. Salon sofa convertible in bed (2m x 1,4m), 2.300 EUR
4. Second fridge, drawer type, 2.750 EUR
5. Ice maker 230V with 10l water tank located in the galey, 4.500 EUR
6. Wallas oil cooker / heater instead of electric cooker, 2.700 EUR
7. Dishwasher 230V (US 115V), 2.300 EUR
8. Oven 230V (in lieu of dishwasher), 1.700 EUR
K.) NAVIGATION;
1. Remot control for autopilot Garmin, 1.800 EUR
2. Remote control for engines, bow and stern thruster, windlass and horn, 11.350 EUR
3. Search reflector with control at wheelhouse, 2.750 EUR
L.) COMFORT;
1. AC 9.000BTU additional only for master cabin, 3.850 EUR
2. Generator 230V-9 kW instead of 5,5kW, 5.700 EUR
3. Gyro stabilizator Quick 13K (9kW generator included), 72.700 EUR
4. Watermaker 80l/h, 12.600 EUR
5. Saltwater deck washer pump and hose fitted in outer cockpit, 2.800 EUR
6. Saltwater anchor washer pump and hose placed in anchor locker, 3.350 EUR
